  • Touch Screen Control Wire Stripping Cutting Machine 0.1- 8mm2 WPM-ES

  • detailed description
  • wire stripping machine 0.1 to 8mm2 AWG28-AWG8 220V 110V Optional Touch Screen Control
     Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine
    (RE: 1. WPM-ES  is with touch screen control.
    2. Crystal Protect case is not included, if needed plus an extra $90)

    The product function characteristics:
    Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.
    Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum, and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc.
    Technical parameters:
    Voltage AC 110V/220V/50/60 Hz
    Dimensions 537x507x400mm
    Display mode LCD liquid crystal display in Chinese and English interface
    Weight 34(KG)
    Power 300(W)
    Cutting length 1-9999mm
    Cutting tolerance (0.2±0.002×L) mm
    Cutting tolerance correction
    Stripping length head 0-50mm, end 0-50mm
     Intermediate stripping eleven place strip
    Wire cross-section 0.1~8mm2(AWG28 – AWG8)
    Maximum diameter of tube 10
    Suitable wire stripping PVC/PTFE/silicone cable/fiberglass wire
    Blade material rigid steel
    Wire-speed (pcs/h) 3000-5000
    Driving a four-wheel drive

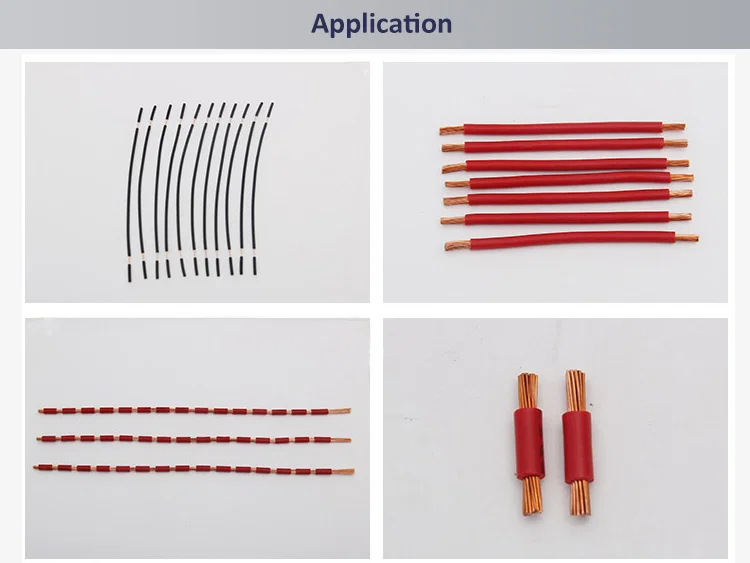

    Touch Screen Control Wire Stripping cutting Machine 0.1- 8mm2 WPM-ES Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine result display of Touch Screen Control Wire Stripping cutting Machine 0.1- 8mm2 WPM-ES Automatic Wire Stripping Machine, Cable Stripping Cutting Machine, wire stripping Machine
