Au Standard 3 Flat Pin PVC Plastic Injection Making Machine 450ST
Model No: 450ST
Au Standard 3 Flat Pin PVC Plastic Injection Making Machine, Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine
MODEL JY-450ST
Screw Diameter 30mm
Safe Shot Weight(PS) 2.6OZ
Opening Stroke 200mm
Clamping Force(T) 45Tons
Platen Size 580×430mm
Distance Between Tie Bere 410×250mm
Min Mold Height(KW/HP) 220/70mm
Pump Motor Power 5.5/7.5/HP
Machine Dimensions(LxWxH) 1.7×1.2×3.0m
Number of Temperature Control 3PCS
Pump Output 37.2L/min
Oil Reservoir Capacity 130Liter
Barrel Heating Power 2.8KW
Cooling Water Consumption 600-800L/hr
Total Power 9KW
Machine Weight 1.8Tons&a
Inquiry now

Detailed description

Au Standard 3 Flat Pin PVC Plastic Injection Making Machine
Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine

Basic Info

Model NO.

JY-450ST

Certification

CE, ISO9001:2008

Trademark

Transport Package

Wooden Box

Origin

China

HS Code

8477209000

Specification of vertical plastic Injection molding machine:

MODEL	JY-450ST
Screw Diameter	30mm	32mm	35mm
Safe Shot Weight(PS)	2.6OZ	3.0OZ	3.75OZ
Opening Stroke	200mm
Clamping Force(T)	45Tons
Platen Size	580×430mm
Distance Between Tie Bere	410×250mm
Min Mold Height(KW/HP)	220/70mm
Pum Motor Power	5.5/7.5/HP
Machine Dimensions(LxWxH)	1.7×1.2×3.0m
Number of Temperature Control	3PCS
Pump Output	37.2L/min
Oil Reservoir Capacity	130Liter
Barrel Heating Power	2.8KW
Cooling Water Consumption	600-800L/hr
Total Power	9KW
Machine Weight	1.8Tons
Shipping Weight	1.9Tons

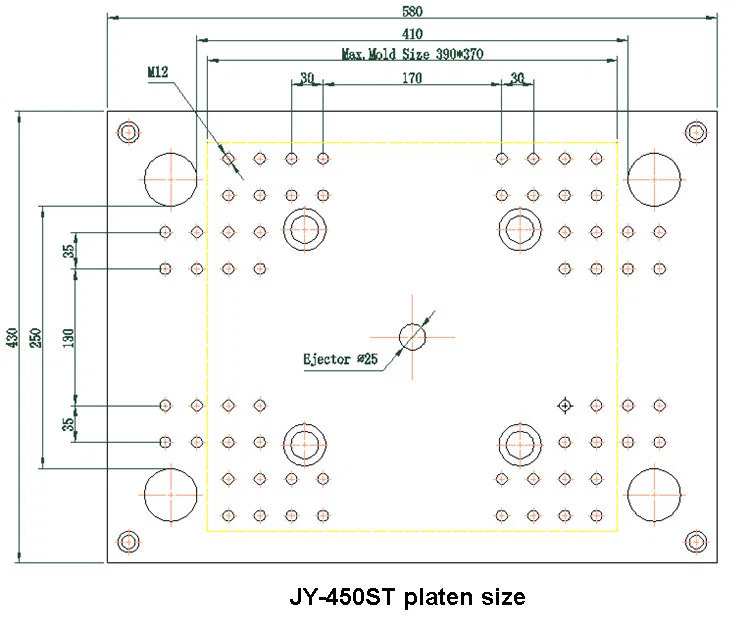

Mold Platen Details:

Au Standard 3 Flat Pin PVC Plastic Injection Making Machine Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine

Functions
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure, and screw speed is suitable for various plastic to be confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has left out the attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of the die.
5) Material tube can be lifted. It is easy to clean the stub bar. It is easy to fix the die.
6) Can be installed on a single mold or double shuttle table.

Machine Application

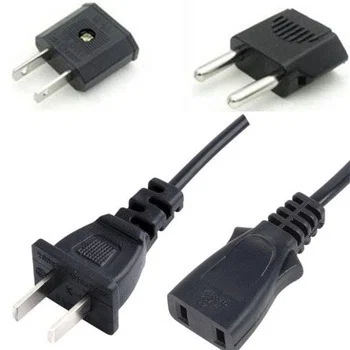

vertical injection machines have the advantage of low noise, low energy consumption, high efficiency, and long lifetime, it's widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables, auto parts, Plug, etc.
