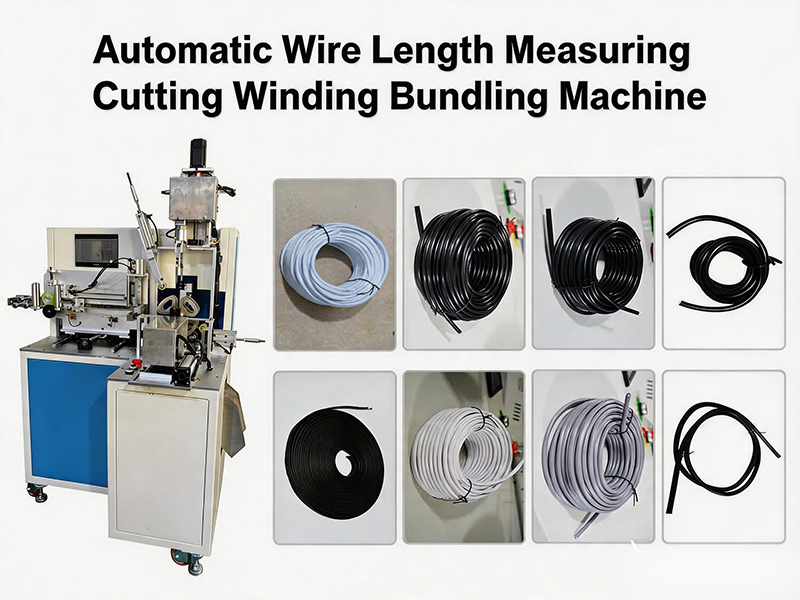

Automatic Wire Length Measuring Cutting Winding Bundling Machine JW-F01

Automatic Wire Length Measuring Cutting Winding Bundling Machine JW-F01

Complete Detailed Product Description

The Automatic Wire Length Measuring Cutting Winding Bundling Machine of high automation, stable operation, high consistency, and easy operation.

This machine adopts advanced PLC control system and touch screen human‑machine interface, supporting one‑key parameter setting, program storage, and quick recipe switching. It is equipped with high‑precision servo and sensor control, ensuring stable winding tension, neat wire arrangement, no overlapping, no crossing, no loosening, and high processing precision. It supports 24‑hour unmanned continuous operation, which greatly improves production efficiency, reduces labor costs, and ensures stable batch product quality.

The equipment has strong compatibility and can process wires with outer diameter 1–10mm (customizable). It supports multiple winding modes and can meet diversified production needs by replacing fixtures. It is equipped with complete safety protection functions such as wire breakage alarm, material shortage detection, overload protection, and abnormal air pressure monitoring, ensuring safe and reliable long‑term operation. With compact structure, reasonable design, low noise, and energy saving, it is an ideal automatic wire processing equipment for modern factories.

Technical Parameters

Key Product Features

1.      High Automation & Continuous Operation
Integrates automatic feeding, length measuring, cutting, winding, bundling, and unloading. Supports 24h unattended running; one operator can manage multiple machines, improving efficiency by 5–10 times.

2.      High Precision & Stable Quality
Servo closed‑loop control with 0.01mm level resolution; winding pitch error ≤0.02mm, tension fluctuation ≤0.5N. Parameters are solidified in programs to ensure high consistency between batches.

3.      Wide Compatibility & Flexible Application
Suitable for various wires and multiple winding modes; quick model change by calling programs and replacing fixtures, adaptable to diversified production.

4.      Intelligent Monitoring & Safety Protection
Built‑in alarms for wire breakage, insufficient air pressure, material shortage, overload, and over‑temperature; automatic stop to protect equipment and products.

5.      User‑friendly & Easy Operation
Intuitive touch screen interface, supports program storage/backup/recall. Low learning cost for new operators.

6.      Energy Saving & Low Noise
Servo drive reduces power consumption; optimized structure lowers working noise, meeting workshop environmental requirements.
