Komax Compatible Stripper Blades - Tungsten Carbide & HSS JW-BL10

📅 2023-01-06 👁️ 2,039
  • Model No: JW-BL10

  • Specifications

    Material: Tungsten Carbide or HSS
    Compatibility: Komax Series & Other Series Machines
    Application: Wire Stripping, Cable Stripping
    Customization: Available per request
  • Inquiry now

JW-BL10 is a stripper blade made to the Komax blade holder, supplied in tungsten carbide or high-speed steel. It is a direct replacement part for Komax series machines and is also offered for other series machines that use the same holder pattern.

The shape is different from a general stripping blade. The body is a solid rectangular plate with two through holes on centres that match the holder, and the cutting end is a V nose formed by two ground bevels meeting at a point. Both bevels are ground from the outside face, so the blade cuts on two flanks and the point is supported by the full thickness of the plate behind it. That construction suits the higher closing speeds of a Komax stripping head, where a thin blade would flex before the insulation is cut. Material is chosen the same way as on the rest of the range: tungsten carbide for long runs and abrasive insulation, high-speed steel for general PVC work.

Blades are ordered against the machine series, and custom profiles are available on request. The two-hole fixing is what sets the blade position, so a worn blade is replaced without re-setting the stripping head; the usual change point is a rounded V point or a bright wear band along the bevels.

Key Features

1. Komax compatibility: made to the Komax holder pattern, and offered for other series machines that share it.

2. Material choice: tungsten carbide for long runs and abrasive insulation, high-speed steel for general PVC work.

3. Double-bevel V nose: two ground flanks meet at a point, and the point is backed by the full plate thickness.

4. Two-hole fixing: blade position is set by the holes rather than by adjustment, so a replacement goes back in the same place.

5. Solid plate body: sufficient stiffness for the closing speed of a Komax stripping head, where a thin blade would flex.

6. Custom profiles available per request, ordered against the machine series and wire range.

Technical Specifications

ParameterSpecification
ModelJW-BL10
ItemStripper blade
Material optionsTungsten carbide or HSS
CompatibilityKomax series and other series machines
Edge formV nose, two ground bevels (photo)
MountingTwo through holes in a rectangular plate (photo)
CustomizationAvailable per request
ApplicationWire stripping, cable stripping

Applications

— Komax series stripping machines in wire harness production, as a replacement stripper blade.

— Other series machines that use the same blade holder pattern, where the Komax-format blade is the available part.

— Harness lines running PVC and thin-wall automotive wire at high closing speed.

— Long production runs on abrasive insulation, where the tungsten carbide version is specified.

— Blade change at the machine, when the V point rounds or the bevels show a wear band.

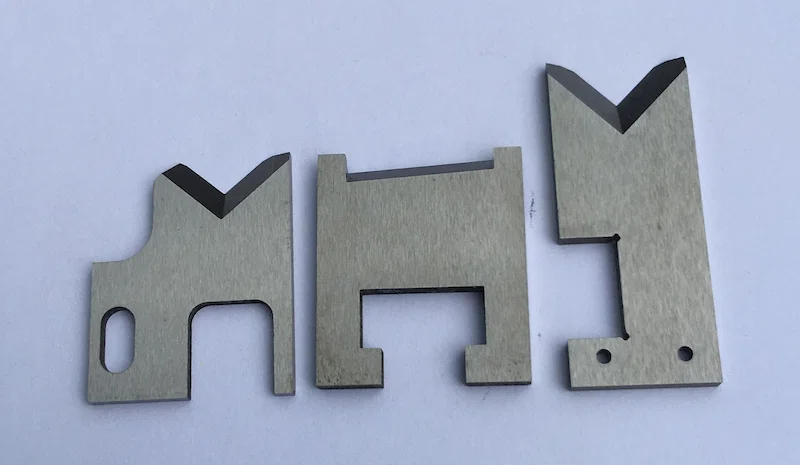

JW-BL10 Komax-compatible stripper blade with V-notch and two mounting holesThree assorted Komax-style stripping blades with notches and cutoutsFive tungsten carbide blades with V edges in gold and steel finishesThree blades: narrow V, gold two-tooth and tall V-notch cutterThree short Komax blades with U-notch, angled and radius profilesTwo wide V-notch stripper blades with multiple mounting holesTwo Komax blades with V cutting edges and different body heightsThree small Komax profile blades, U-notch, angled and radius cutters
