The WPM-5-150MM2 is a foot-operated pneumatic guillotine for 5-150 mm2 BVR cable, cutting to a length set anywhere from 1 mm to 99999.99 mm. A cylinder with a 100 mm bore and a 50 mm stroke drives the blade down between guide columns onto a steel base, and the unit weighs 35 kg at 400 x 450 x 200 mm on AC 220 V.
Cutting 150 mm2 by hand saw or ratchet cutter leaves a burr and a splayed end that has to be dressed before a lug goes on, and the burr is where a crimp fails: the lug closes on the burr instead of on clean copper. The blade here is a flat guillotine driven by air at 0.4-0.7 MPa, so the cut is a single stroke with no ratcheting and no operator force on the handle. An oil-water separator and regulator on the inlet keep the cylinder stroke repeatable across a shift, and the foot pedal leaves both hands free to hold the cable square to the blade.

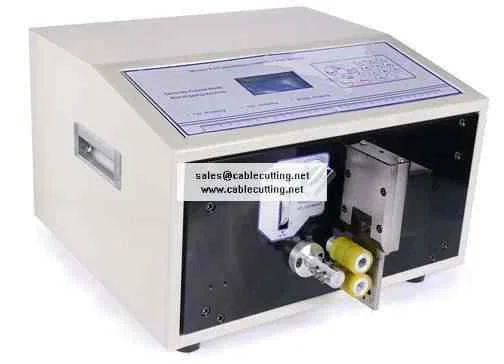

It cuts only. The WPM-5-150MM2 does not strip, and the WPM-1-6 and WPM-6806N remove enamel or insulation on far smaller conductors. For cable above 10 mm2 that also needs a jacket strip, cutting and stripping remain two operations on two machines rather than one.
Key Features
1. Range of 5-150 mm2 BVR cable on one blade, with other conductor sizes made to order rather than requiring a second machine.
2. Cylinder bore of 100 mm with a 50 mm stroke, which is what produces the force to shear 150 mm2 in one pass without a ratchet.

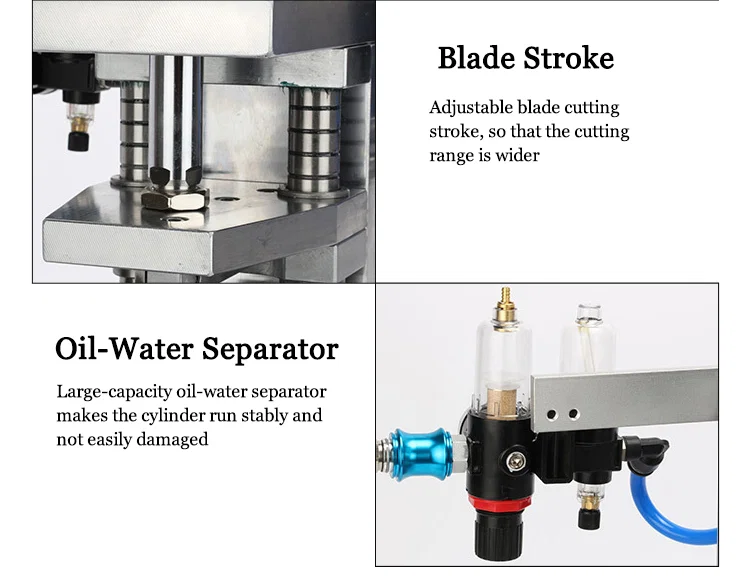

3. Blade guided between stroke columns onto a steel base, keeping the cut square to the cable axis instead of skewing on heavy conductor.
4. Cut length set from 1 mm to 99999.99 mm, so short tails and full drum lengths are entered on the same control.
5. Foot pedal operation frees both hands to hold the cable against the stop, which is where a hand cutter loses squareness.

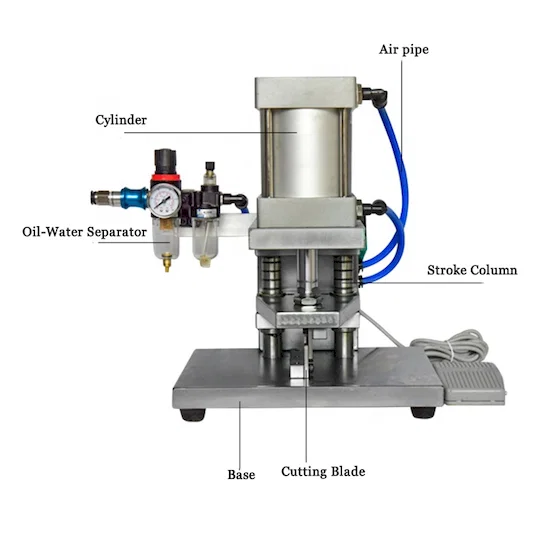

6. Air at 0.4-0.7 MPa passes an oil-water separator and regulator with gauge, keeping moisture out of the cylinder and the stroke repeatable, on a 35 kg, 400 x 450 x 200 mm base that sits beside a crimping press.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-5-150MM2 |
|---|
| Machine type | Pneumatic large cable cutting machine, foot operated |
|---|
| Wire range | 5-150 mm2 BVR wire, customizable |
|---|
| Air pressure | 0.4-0.7 MPa |
|---|
| Power | 220 V 50-60 Hz |
|---|
| Cylinder bore | 100 mm |
|---|
| Stroke | 50 mm |
|---|
| Cutting length | 1-99999.99 mm |
|---|
| Size | 400 x 450 x 200 mm |
|---|
| Weight | 35 kg |
|---|
| Air preparation | Oil-water separator with regulator and gauge |
|---|
| Operation | Foot pedal |
|---|
Applications
— Building and industrial power distribution: 5-150 mm2 BVR cut to length before a lug is crimped and the cable is pulled into a riser or a panel.
— Switchgear and busbar assembly: heavy flexible conductor cut at the bench to fit between a breaker terminal and a busbar.
— Motor and pump connection leads: 35-150 mm2 flexible cable cut square so the lug seats on the full conductor section.
— Earth conductor preparation: green-yellow BVR cut to fixed lengths for earthing runs, where a splayed end would fail inspection.
— Cable cut-length services and site work: full drum lengths measured and cut on a 35 kg unit that runs from a site compressor.
