OTP High Precision Horizontal & Straight Crimping Molds JW-AP31

📅 2023-01-06 👁️ 1,755
  • Model No: JW-AP31

  • Specifications

    Model: OTP High Precision Horizontal/Straight Molds
    Type: Horizontal die, Pneumatic mold, Straight mold
    Application: Wire crimping machine
    Compatibility: Terminal Machine Applicator
    Crimping Type: Horizontal and vertical crimping
    Design: U-shaped mold configuration
  • Inquiry now

The JW-AP31 is an OTP horizontal die in the straight-mold configuration, with a pneumatic version for air-driven heads. The ram carries a straight, flat-faced crimper that closes into a U-shaped lower nest, mounted on a cast base.

A straight crimper closes the barrel from one flat face instead of from a contoured U punch, which is why the supplied photograph can show insulated ring, fork, bullet and butt terminals together with bare tube ends: the nest sets the position and the flat face seats on the barrel. Crimp height is taken from ram adjustment rather than from the die contour.

The die is a replacement part for existing OTP applicators on wire crimping machines. Horizontal and vertical crimping are both listed for the series, and the pneumatic mold version is specified where the machine drives the die from an air head.

Key Features

1. Straight crimper - flat-faced punch closing into a U-shaped lower nest.

2. Pneumatic mold version - for heads actuated by air rather than by a mechanical ram.

3. Wide terminal coverage - insulated and bare terminals are shown on the same nest in the supplier's photo.

4. Horizontal die body - strip presented from the side, ram travel vertical.

5. OTP applicator fit - mounts to the terminal machine applicator station of a wire crimping machine.

6. Replaceable crimper and anvil - both bolted to the body and removable for service.

Technical Specifications

ParameterSpecification
ModelOTP High Precision Horizontal/Straight Molds
TypeHorizontal die, Pneumatic mold, Straight mold
ApplicationWire Crimping Machine
CompatibilityTerminal Machine Applicator
Crimping TypeHorizontal and Vertical
DesignU-shaped Mold Configuration

Applications

— Insulated ring and fork terminals on OTP wire crimping machines, one stroke per terminal.

— Bare tube and butt ends closed on the straight face, for earth and power leads.

— Pneumatic heads where the applicator has no mechanical linkage to the press ram.

— Re-die of an existing wire crimping machine with a straight-profile nest.

— Mixed terminal batches where one nest has to accept several terminal styles.

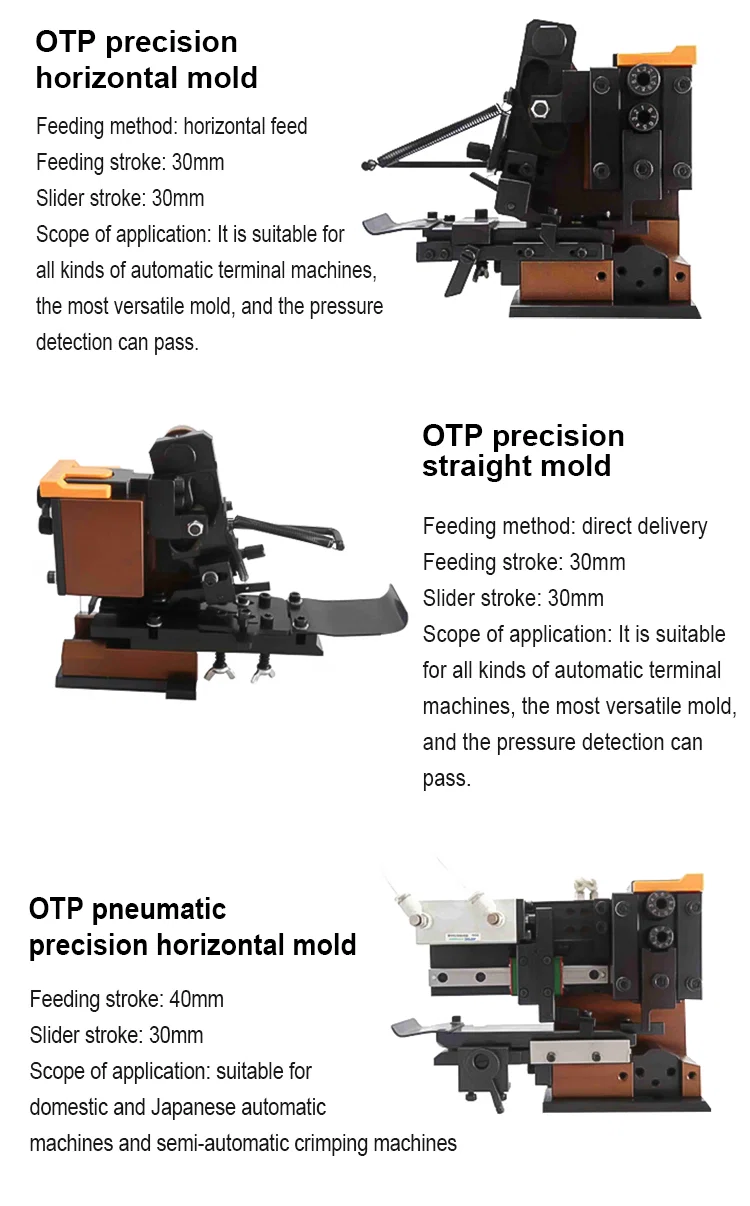

OTP high precision horizontal mold, 4S-40 pneumatic horizontal die and 4E-40 straight mold4S-30 pneumatic horizontal die and 4E-30 mechanical straight mold for terminal crimpingJST horizontal, straight and flag terminal molds shown in black4TS precision horizontal mold and 4TE precision straight moldOTP precision horizontal, OTP precision straight and pneumatic horizontal moldsOTP pneumatic straight mold, Yinhua mould and universal horizontal moldOTP back hollow horizontal mold, European horizontal mode and UA docking die
