OTP Horizontal Crimping Molds for Terminal Machines - U-Shaped Dies JW-AP33

📅 2023-01-06 👁️ 2,302
  • Model No: JW-AP33

  • Specifications

    Model Type: OTP Horizontal Crimping Molds
    Application: Terminal Machine Applicator
    Mold Style: U-Shaped
    Crimping Type: Horizontal and Vertical
    Use: Wire Crimping Machine Die
  • Inquiry now

The JW-AP33 is an OTP horizontal crimping mold with a U-shaped die set, made for the applicator station of a wire crimping machine. It is supplied as the die and feed assembly, not as a machine.

The U-shaped set is the crimper and anvil pair: the strip is indexed by the feed finger from the side and the barrel is closed as the ram descends. The body bolts to the applicator base, so the die can be moved between machines that share the OTP mounting.

Horizontal and vertical crimping are both listed. Terminal dimensions, crimp height and feed pitch are quoted against the terminal drawing rather than published as a fixed table, so the die is specified per job.

Key Features

1. U-shaped die set - crimper and anvil pair for open-barrel U terminals.

2. Horizontal layout - side feed of the strip, with the ram closing vertically.

3. Applicator-station fit - bolts to the OTP applicator base of a wire crimping machine.

4. Horizontal and vertical crimping - both listed for the same die range.

5. Quotation-based specification - dimensions and crimp data are issued with the quote.

6. Serviceable assembly - crimper, anvil and feed parts are bolted to the body and can be replaced.

Technical Specifications

ParameterSpecification
ModelJW-AP33
Model TypeOTP Horizontal Crimping Molds
ApplicationTerminal Machine Applicator
Mold StyleU-Shaped
Crimping TypeHorizontal and Vertical
UseWire Crimping Machine Die

Applications

— U open-barrel terminal crimping on OTP applicator stations of wire crimping machines.

— Horizontal side-feed lines where the strip runs behind the die body.

— Die replacement on an applicator whose original U-die is worn.

— Job shops that quote die and terminal together from the customer's drawing.

— Crimp-only stations, separate from the stripping operation.

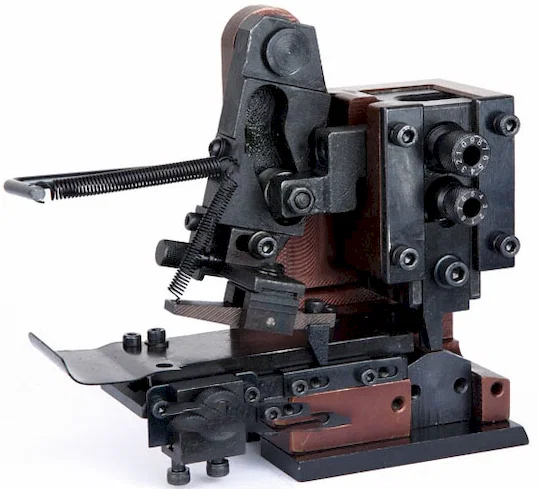

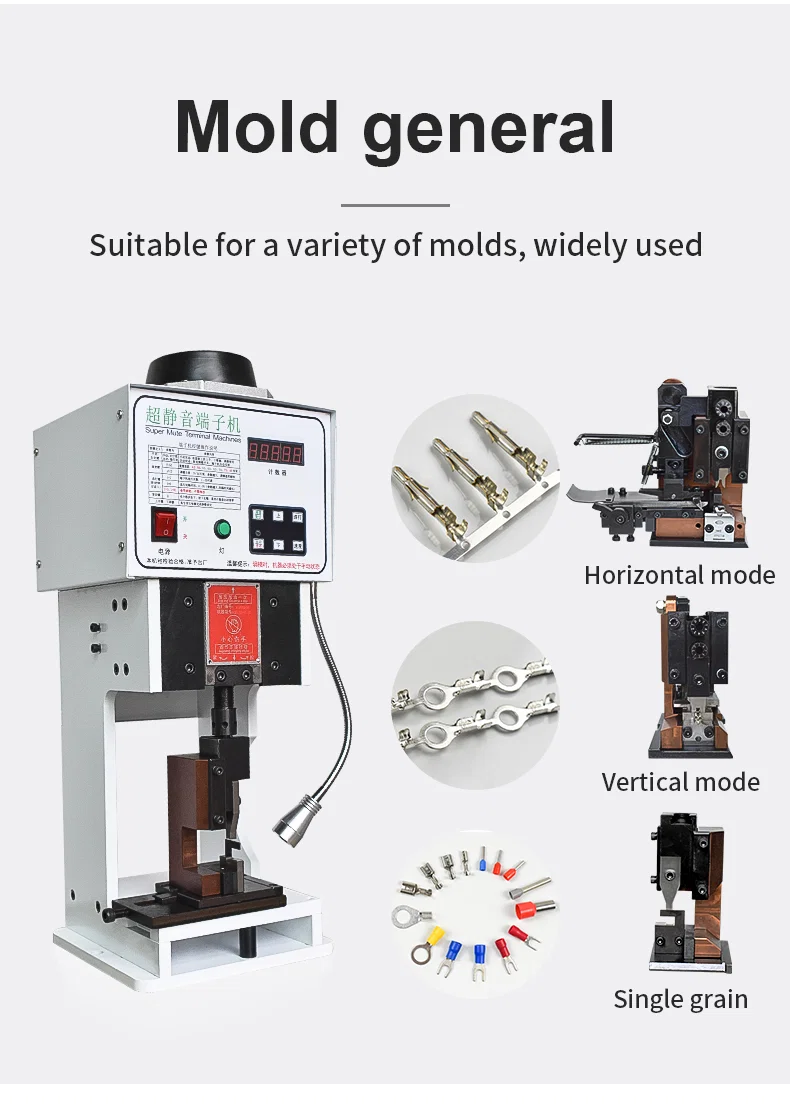

OTP horizontal mode applicator mold with terminal sample insetJW-AP33 super mute terminal machine with horizontal, vertical and single grain moldsSuper mute terminal crimping press with OTP horizontal, vertical and single-grain moldsOTP straight mold and OTP single grain mold with weight and stroke specsOTP straight mold and OTP single grain mold with weight and stroke specsFlag model, 2000# mold and plastic mold with weight and stroke specsOTP high precision horizontal mold, 4S-40 pneumatic horizontal die and 4E-40 straight mold4S-30 pneumatic horizontal die and 4E-30 mechanical straight mold for terminal crimpingJST horizontal, straight and flag terminal molds shown in black4TS precision horizontal mold and 4TE precision straight moldConventional dotting die and heavy dotting mold with 30mm slider strokePneumatic super wide transverse die, super wide horizontal die and European single die
