Pneumatic Wire Stripper Blades Set - Round, V, Flat Knives JW-BL06

📅 2023-01-06 👁️ 2,305
  • Model No: JW-BL06

  • Specifications

    Blade Types: Round knife, V knife, Flat knife, Butt knife, Semi-circle butt knife
    Round Knife Range: 2.0-14mm (2.0-10mm: 0.5mm intervals, 10.1-14mm: 1.0mm intervals)
    V Knife Range: Suitable for wires below 4.0mm outer diameter
    Compatibility: 305, 310, 315 horizontal skinning machines
    Set Contents: 2 pieces per set
    Application: Flat wire stripping, all-round wires, thinner processing wire
  • Inquiry now

JW-BL06 is a pneumatic wire stripper blade set for 305, 310 and 315 horizontal skinning machines. It is supplied two pieces to a set, and the pair is chosen by the outer diameter of the wire being stripped, so a shop holds one pair per size band it runs.

Round knives are graded from 2.0 to 14 mm: 0.5 mm intervals between 2.0 and 10 mm, then 1.0 mm intervals up to 14 mm. That graduation is the point of the set - the notch has to match the conductor bundle closely, or the blade cuts into strands on thin wire and leaves a tag on thick wire. V knives are used below 4.0 mm outer diameter, where the notch should follow the wire rather than close around it. Flat, butt and semi-circle butt knives complete the range for flat cable and for square-cut requirements.

The blades drop into the existing pneumatic head on the 305, 310 and 315 machines and are replaced as a pair when the notch dulls or when the line changes wire size. The photo shows the four working profiles side by side, with one round knife marked for 4.0 mm.

Key Features

1. Blade types: round, V, flat, butt and semi-circle butt knives in one range, covering round and flat cable.

2. Round knife range: 2.0 to 14 mm outer diameter, in 0.5 mm steps to 10 mm and 1.0 mm steps above.

3. V knife range: for wire below 4.0 mm outer diameter, where a closed notch would over-cut.

4. Pair supply: two pieces per set, so both halves of the head are renewed together.

5. Machine fit: made for the pneumatic stripping head on 305, 310 and 315 horizontal skinning machines.

6. Wire coverage: flat wire, all-round wire and thin processing wire, including sizes marked on the blade face.

Technical Specifications

ParameterSpecification
ModelJW-BL06
Set content2 pieces per set
Blade typesRound knife, V knife, flat knife, butt knife, semi-circle butt knife
Round knife range2.0-14 mm outer diameter
Round knife steps0.5 mm (2.0-10 mm), 1.0 mm (10.1-14 mm)
V knife rangeBelow 4.0 mm outer diameter
Compatibility305, 310, 315 horizontal skinning machines
ApplicationFlat wire stripping, all-round wires, thin processing wire

Applications

— 305, 310 and 315 horizontal skinning machines - pneumatic stripping of round power cord and hook-up wire.

— Flat ribbon and flat power cable, using the flat and butt profiles for a square cut.

— Thin processing wire below 4.0 mm, where the V knife gives a controlled notch instead of a closed cut.

— Lines that change wire gauge between orders, where the pair is swapped to the matching notch size.

— Replacement of dulled or over-cut blades after a size mismatch has damaged strands.

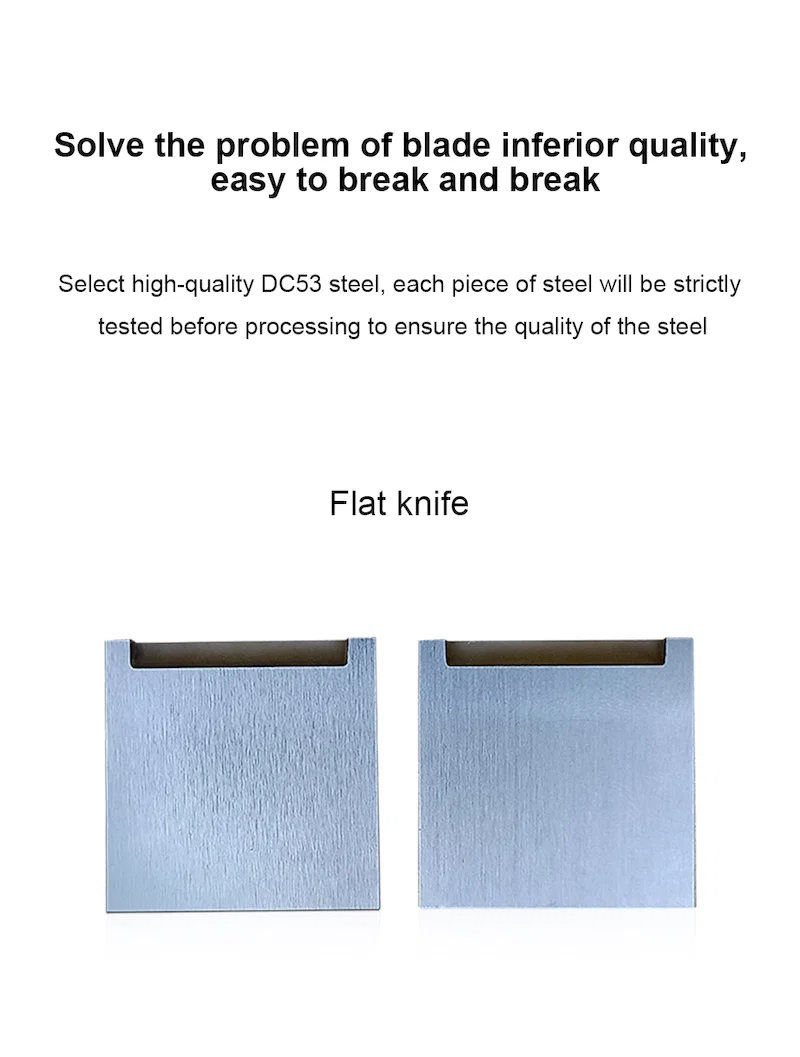

Flat knife blades 30x30 mm and 30x25 mm for flat wire, with spec tableRound knife and V knife profiles with sizes, wire range and 3.0 mm thicknessTwo flat knife blades with straight cutting edge on wooden workbenchTwo U knife blades marked BRX with 4.0 mm wire notchButt knife pair with round groove for thin wire processingV knife blades, ground and polished versions, for wire under 4.0 mmTwo V knife blades with sharp V notch on wood surfaceRound knife blades, ground and polished, for pneumatic peeling machinesPneumatic peeling machine U knife marked BRX 4.0 for 305, 310, 315Two round knife blades with semicircular notch on wooden benchTwo flat knife blades in DC53 steel with straight edgeProduct manual page describing flat, V, round and butt knife uses
