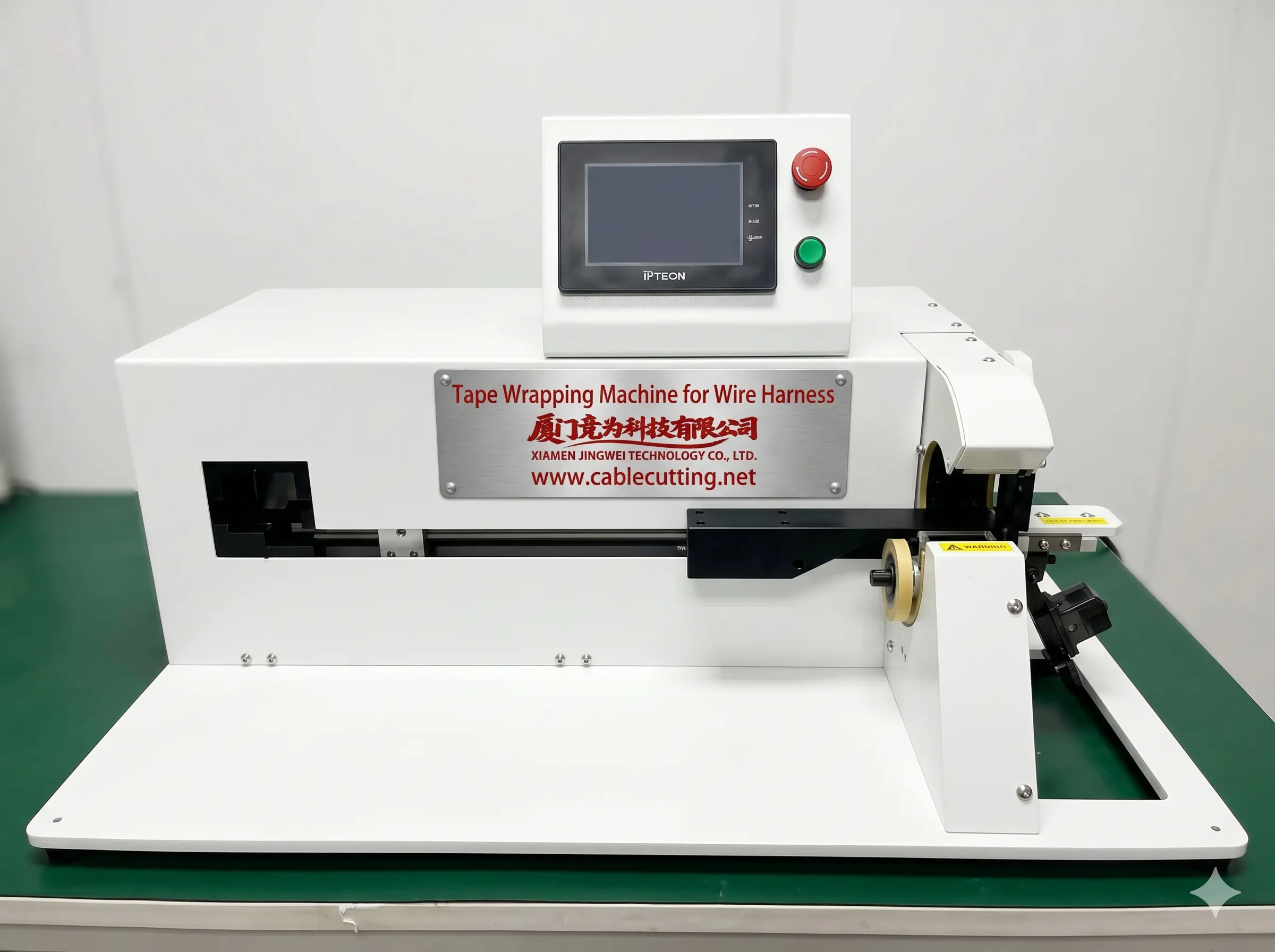

Automatic Electric Tape Wrapping Machine for Wire Harness WPM-302
Automatic Electric Tape Wrapping Machine for Wire Harness WPM-302 Thumb Automatic Electric Tape Wrapping Machine for Wire Harness WPM-302 Thumb
Video Thumbnail

Automatic Electric Tape Wrapping Machine for Wire Harness WPM-302

📅 2026-05-16 👁️ 2,565
  • Model No: WPM-302

  • Specifications

    Automatic Electric Tape Wrapping Machine for Wire Harness WPM-302
    Tape Width: 2-40mm
    Wire Diameter: 0.1-40mm
    Winding Length: 500mm (Customizable)
    Net Weight: 45kg
    Size: 730*420*360mm
    Motor Power: AC220V/110V 50/60Hz
    Winding Speed: 800mm/second
  • Inquiry now

The WPM-302 is an electric automatic tape wrapping machine for harnesses from 0.1 mm to 40 mm with tape 2 mm to 40 mm wide. It wraps a 500 mm length as standard, and that length can be built to order.

The head runs at 800 mm per second, so a 500 mm section is covered in a single fast pass. Because the drive is electric, tape tension and pitch do not change with shop air pressure, and the wrap stays at the programmed length from the first piece to the last.

It sits between the WPM-301 (83) and the WPM-303 (84): no coil winding and no multi-segment programming, but the highest fixed winding speed in the group at 800 mm per second and a 0.1 mm minimum wire. The WPM-2-40 (85) is semi-automatic and the WPM-303 (84) adds touch-screen modes with unlimited length.

Key Features

1. Electric drive, no air supply required

2. Winding speed 800 mm per second

3. Tape width 2-40 mm

4. Wire diameter 0.1-40 mm

5. Fixed 500 mm winding length, customizable

6. AC 220 V/110 V 50/60 Hz; 45 kg, 730 x 420 x 360 mm

Technical Specifications

ParameterSpecification
ModelWPM-302
TypeAutomatic electric tape wrapping
Tape width2-40 mm
Wire diameter0.1-40 mm
Winding length500 mm (customizable)
Winding speed800 mm/second
Motor powerAC 220 V/110 V 50/60 Hz
Net weight45 kg
Dimensions730 x 420 x 360 mm

Applications

— Volume harness production - wrapping standard 500 mm sections at a fixed cycle

— Automotive sub-assembly - taping engine and cabin loom sections before routing

— Cable assembly - spot wrapping multi-core cable at break-out points

— Appliance leads - wrapping power cord and internal lead bundles

— Network and patch cable - taping cable ends before connector overmoulding
