  • Model No: JW-BL16

  • Specifications

    Model: JW-BL16
    Item: OTP applicator blade and terminal crimping knife
    Function: Terminal crimping and bending
    Blade form: Flat shank with round mounting hole, flared foot with two fixing holes (photo)
    Crimp edge: Cut into the lower edge of the foot, between the fixing holes (photo)
    Size variants: Two nose lengths shown side by side (photo)
    Compatibility: OTP applicator, terminal crimping machines, cable cutting and stripping machines
    Supply: Individual replacement blades
  • Inquiry now

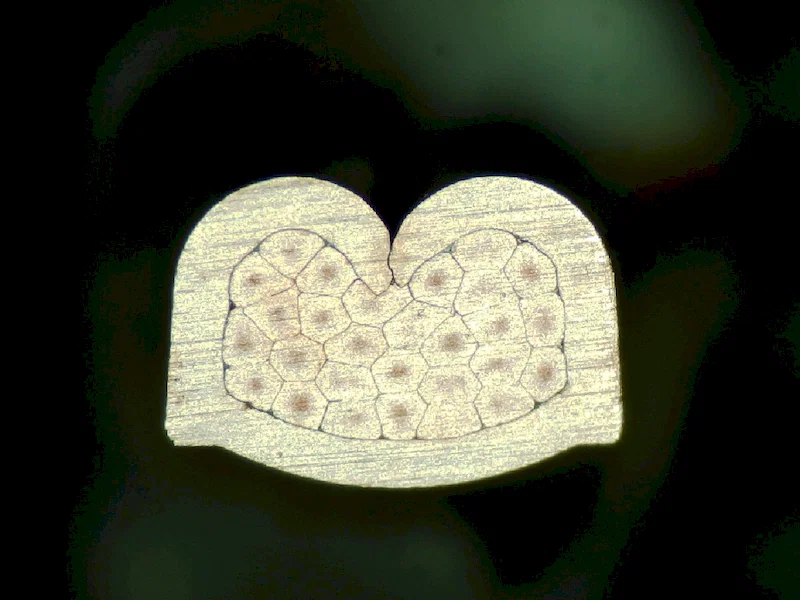

JW-BL16 is the OTP applicator blade and terminal crimping knife used in the applicator station of a terminal crimping machine. It is the part that forms the terminal barrel onto the conductor, not a machine in its own right, and it is also fitted to cut-strip-crimp lines where the cable is measured, stripped and terminated in one cycle. The listing covers the OTP applicator blade, the bending part that works alongside it, and the terminal crimping knife itself.

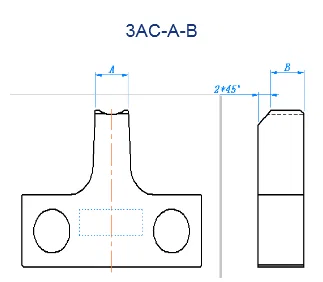

The blade is a single ground plate. A narrow shank carries one round mounting hole at the top and widens into a flared foot, and the foot carries two through holes for the fixing screws. The crimp form is cut into the lower edge of the foot between those holes, so the shape that closes the barrel is part of the same piece as the shank the ram drives. There is no insert and no joint in the load path, and crimp height is set by the foot edge rather than by a separate die. Two blades are shown side by side in the photo, one with a longer nose and one shorter, which is how one body pattern is made for different terminal sizes; the shanks and feet also carry size and date stamps for identification on the shelf.

Blades are ordered against the terminal and the applicator, and changed as a pair with the anvil below them. The usual sign is a polished band on the crimp edge or a bright flat where the barrel has been riding, after which crimp height drifts and adjustment of the ram no longer brings it back. Because the foot locates on two screws, a replacement goes back into the same position without re-setting the applicator.

Key Features

1. OTP applicator fit: made for the applicator station of terminal crimping machines and for cut-strip-crimp lines, in place of the original blade.

2. One-piece shank and foot: the crimp form is cut into the same plate the ram drives, so there is no insert or joint in the load path.

3. Two-hole foot fixing: the foot is held on two screws, which sets the crimp position and lets a replacement go back in the same place.

4. Round shank hole: the single hole at the top is the mounting point on the applicator ram, shown on both blades in the photo.

5. Size variants on one body: the photo shows a long-nose and a short-nose blade, the same pattern made for different terminal sizes.

6. Matched with the bending part: supplied to work with the bending component listed under the same model, so the two are ordered together.

Technical Specifications

ParameterSpecification
ModelJW-BL16
ItemOTP applicator blade and terminal crimping knife
FunctionTerminal crimping and bending
Blade formFlat shank with round mounting hole, flared foot with two fixing holes (photo)
Crimp edgeCut into the lower edge of the foot, between the fixing holes (photo)
Size variantsTwo nose lengths shown side by side (photo)
CompatibilityOTP applicator, terminal crimping machines, cable cutting and stripping machines
SupplyIndividual replacement blades

Applications

— OTP applicator stations on terminal crimping machines, forming the barrel of a reel-fed terminal onto a stripped conductor.

— Cut-strip-crimp lines, where the cable is measured, stripped and terminated in one cycle and the applicator runs continuously.

— Harness shops replacing a crimp foot that has developed a wear flat, with the applicator setting left as it was.

— Machines running more than one terminal size, where the long-nose and short-nose blades are held as separate pairs.

— Rebuilt applicators that need the blade and its bending part together rather than the whole applicator assembly.
