Dupont 2.0/2.54 Terminal Crimping Mold & Blade Kits JW-AP28

📅 2023-01-06 👁️ 2,331
  • Model No: JW-AP28

  • Specifications

    Compatible Terminals: Dupont 2.0 and 2.54
    Material: Brass press die
    Application: Wire stripping machines, cable cutting machines
    Blade Types: OTP blade, stripper blade, wire cutting machine blade
  • Inquiry now

JW-AP28 is a mold and blade kit for Dupont 2.0 and 2.54 terminals, the small board-level connectors used on ribbon and equipment wiring. The kit supplies the brass press die with the blades that work alongside it: an OTP blade, a stripper blade and a wire cutting machine blade. It is used on wire stripping machines and cable cutting machines that have been set up for this terminal family.

The die is brass. On a terminal this small the crimp force is low and the nest does most of the work, so a brass die holds a clean polished cavity and is easier to re-cut than a hardened steel block. The blades are the harder parts: the OTP blade forms the terminal, the stripper blade opens the insulation and the cutting blade squares the cable end. In the photo the kit is laid out as six upper punches against six lower dies, each punch with a round mounting hole and a narrow neck above the crimp profile, each die a block with two fixing holes and a recessed nest.

The 2.0 and 2.54 pitches use different nests and are not interchangeable, so kits are ordered by terminal family and machine model. A kit is normally bought when a machine is re-tooled for a new board connector, or when the nest of an existing tool has worn and the crimp wings no longer fold symmetrically.

Key Features

1. Terminal coverage: Dupont 2.0 and 2.54, the two pitches used on board-level and ribbon harness work.

2. Brass press die: a polished cavity that suits the low crimp force of a small terminal and can be re-cut when worn.

3. Three blade functions in one kit: OTP blade for forming, stripper blade for insulation, cutting blade for the cable end.

4. Matched upper and lower halves: six punch and die pairs are supplied as a group, shown paired in the photo.

5. Compact blade body: a round mounting hole on a narrow neck above the crimp profile, sized for the small tool holders these machines use.

6. Application fit: specified for wire stripping machines and cable cutting machines, ordered against the machine model and terminal number.

Technical Specifications

ParameterSpecification
ModelJW-AP28
ItemDupont terminal crimping mold and blade kit
Compatible terminalsDupont 2.0 and 2.54
MaterialBrass press die
Blade typesOTP blade, stripper blade, wire cutting machine blade
Set layoutUpper punch and lower die in matched pairs (photo)
ApplicationWire stripping machines, cable cutting machines

Applications

— Dupont 2.0 terminal crimping on stripping machines set up for board connectors.

— Dupont 2.54 terminal crimping on the same machine family with the matching die nest.

— Ribbon and equipment wiring harnesses, where the terminal is crimped after the cable is cut and stripped in the same cycle.

— Re-tooling a machine for a new board connector, where the whole kit is changed rather than the die alone.

— Replacement of a worn nest on an existing Dupont tool, when crimp wings stop folding evenly.

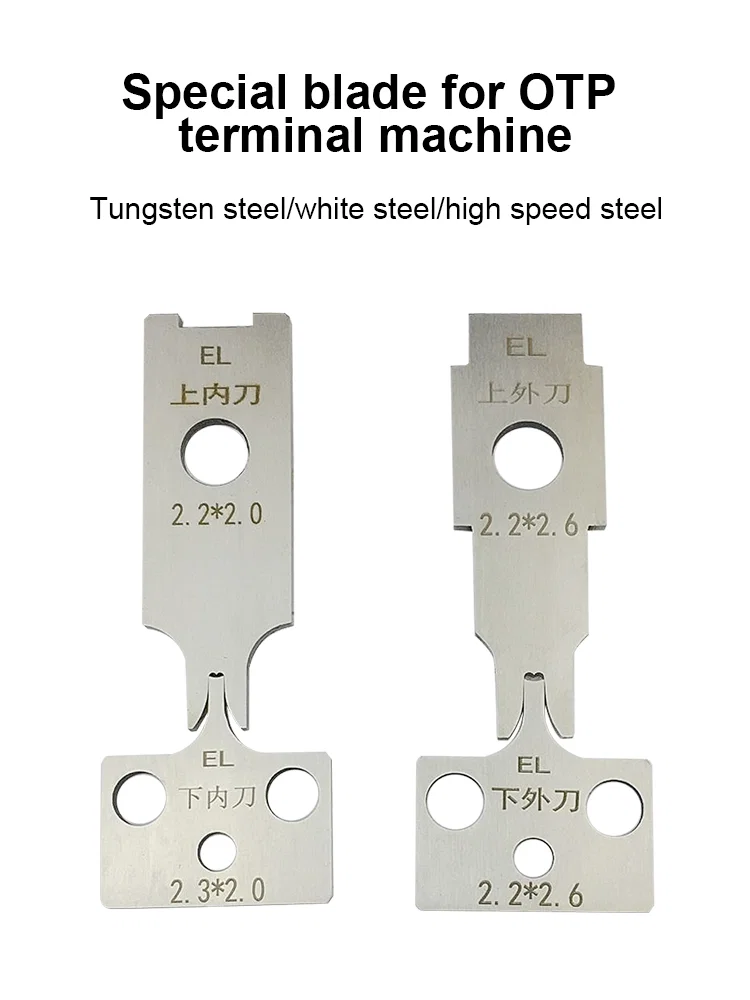

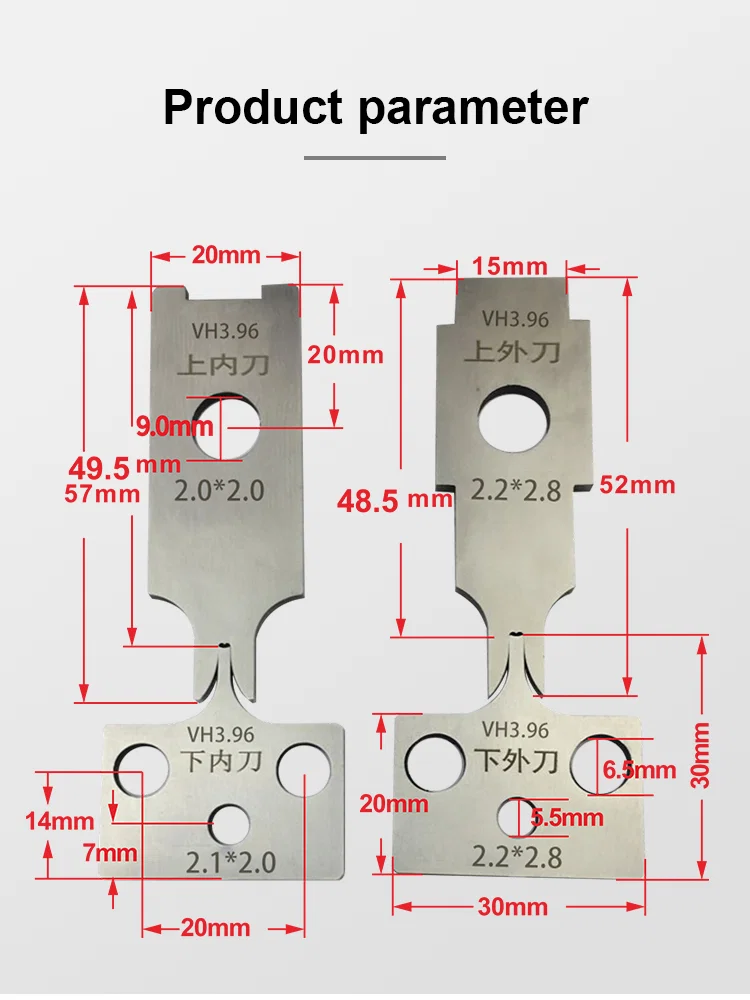

JW-AP28 EL blade pair marked 2.2x2.0 inner and 2.2x2.6 outer cuttersJW-AP28 dimension drawing of VH3.96 blades with 49.5mm and 52mm heightsStacked DC53 steel plates checked with a Niton spectrometer36-process page: vacuum quenching text with raw, semi-finished and finished blade photosSix conventional terminal blade pairs labeled 1.0, 1.25, ZH1.5, PH2.0, XH2.54 and VH3.96Grid of six additional EL and VH terminal blade size setsBlade grid with DuPont 2.0, DuPont 2.54, JC20, JC25, XT60 and 250 terminal moldsBlue bins of bulk stripping blades ready for shipment
