Name: Touch Screen Wire Stripper Cutter (0.1-10mm²)
Brand: JINGWEI
SKU: WPM-JE2S
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

Touch Screen Wire Stripper Cutter (0.1-10mm²)

Touch Screen Wire Stripper Cutter (0.1-10mm²)
Model No: WPM-JE2S
Our WPM-JE2S wire stripping and cutting machines feature touch screen controls and are designed for 0.1-10mm2 wires. They offer automatic cable cutting and stripping capabilities, making them an ideal choice for any wire stripping application.
Technical parameters:
ModelWPM-JE2S
Voltage AC 220V/110V 50/60 Hz
Power 300W
Cutting length 1-9999 mm
Cutting tolerance (0.2+/- 0.002 by L) mm
Cut off the error can be modified
Stripping length Front end 0-50mm, Rear end 0-50 mm
Middle strip cut 11 place strip
Cutting wire core section 0.1-10mm2 (AWG7 #-AWG28 #)
Inquiry now

Detailed description

Our WPM-JE2S wire stripping and cutting machines feature touchscreen controls and are designed for 0.1-10mm2 wires. They offer automatic cable cutting and stripping capabilities, making them an ideal choice for any wire stripping application.

Elevate Wire Processing Efficiency with Our Touchscreen Wire Stripping Cutting Machine: Precision & Automation for Diverse Applications

Introduction:

Introducing the WPM-JE2S Wire Stripping Cutting Machine, a cutting-edge solution designed to transform your wire preparation workflow. This advanced machine features intuitive touchscreen controls and is expertly engineered for precise and efficient processing of wires ranging from 0.1-10mm². The WPM-JE2S Wire Stripping Cutting Machine offers full automatic cable cutting and stripping capabilities, making it the ideal choice for a wide range of wire stripping applications. Leveraging advanced automation technology from Japan and Taiwan, this machine boasts a user-friendly LCD touchscreen interface for seamless operation and convenient maintenance. Experience enhanced productivity, superior precision, and consistent performance with this essential equipment designed to optimize your wire processing in the electronics industry and beyond.

Key Features and Benefits:

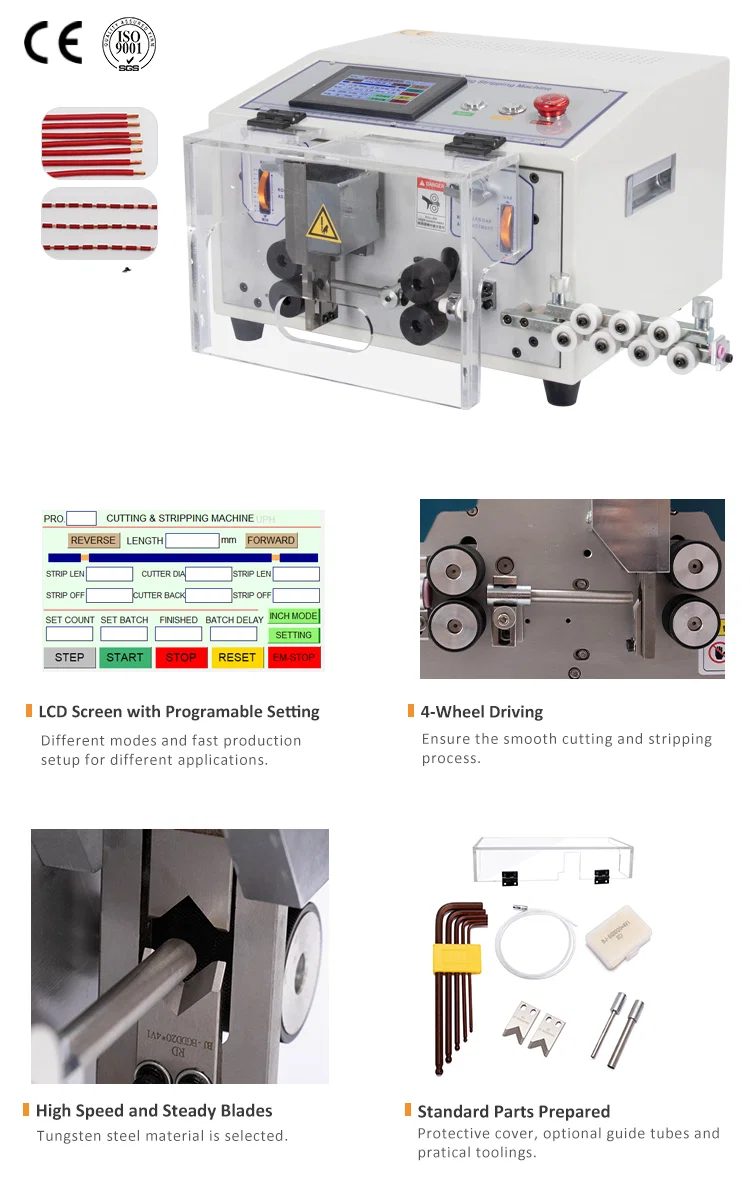

Touchscreen Control and LCD Interface for User-Friendly Operation and Monitoring: This Wire Stripping Cutting Machine features an intuitive touchscreen control panel with an LCD screen, enabling easy operation and clear display of settings and production data. Enjoy a seamless man-machine dialogue for efficient workflow management.
Automatic Cable Cutting and Stripping for Enhanced Efficiency and Labor Savings: The WPM-JE2S provides fully automatic cable cutting and stripping functions, significantly increasing your production efficiency and reducing reliance on manual labor. Streamline your wire preparation process and maximize throughput.
High Speed and Precision for Increased Productivity and Quality: Experience high-speed operation and exceptional precision with this advanced machine. The WPM-JE2S delivers consistent cutting and stripping results, boosting productivity while maintaining the highest quality standards for your wire processing.
Versatile Application Across the Electronics Industry: Widely utilized in the electronics industry, this machine is perfectly suited for wire processing in the manufacturing of electrical appliances, motors, lamps, lanterns, toys, and a multitude of other electronic products.
Optimal for Stripping Various Wire Types and Insulation Materials: This Wire Stripping Cutting Machine is optimally designed for stripping a wide range of wire types including PVC, Teflon, silica gel lines, and glass fiber cables. Handle diverse insulation materials with consistent precision and clean stripping results.
Adjustable Wire Length and Stripping Parameters for Customized Wire Preparation: The wire length can be set arbitrarily, and stripping parameters can be easily adjusted via the touchscreen interface, allowing for customized wire preparation to meet specific project requirements.
Middle Strip Cutting Capability with Up to 11 Places for Complex Wire Configurations: Supports middle strip cutting with up to 11 places along the wire, offering advanced capabilities for complex wire configurations and specialized stripping needs.
High Yield Performance for Increased Output (3000-5000 PCS/h): Achieve high yield performance with a peeling linear velocity of 3000-5000 pieces per hour (based on L=100mm), significantly boosting your output and reducing cycle times with this efficient Wire Stripping Cutting Machine.
Durable Hard Tungsten Steel Blade for Long-Lasting Precision and Reliability: Equipped with a durable blade made of hard tungsten steel (with imported BaiGang optional), this machine ensures long-lasting precision and reliable cutting and stripping performance for extended operational life.
Compact Design and Convenient Maintenance for Easy Integration and Reduced Downtime: Features a compact design for easy integration into various workspaces and is engineered for convenient maintenance, minimizing downtime and ensuring continuous production flow.

Technical Specifications:

Feature	Specification
Product Type	Wire Stripping Cutting Machine
Keyword Focus	Wire Stripping Cutting Machine
Model	WPM-JE2S
Control Type	Touchscreen Control
Operation Type	Automatic Cable Cutting and Stripping
Applicable Industries	Electronics, Electrical Appliances, Motors, Lamps, Lanterns, Toys
Applicable Wire Types	PVC, Teflon, Silica Gel Line, Glass Fiber Cables
Cutting Wire Core Section	0.1-10mm² (AWG7 #-AWG28 #)
Max Cut Diameter	10mm
Cutting Length Range	1-9999 mm
Cutting Tolerance	(0.2+/- 0.002 by L) mm
Stripping Length (Front End)	0-50mm
Stripping Length (Rear End)	0-50 mm
Middle Strip Cut	11 Places
Stripping Speed	3000-5000 PCS/h (L=100mm)
Blade Material	Hard Tungsten Steel (Import BaiGang Optional)
Power	300W
Voltage	AC 220V/110V 50/60 Hz
Key Benefits	Touchscreen Control, Automatic Cutting & Stripping, High Speed, High Precision, Versatile Wire Types, Easy Operation, Low Maintenance

Applications:

The WPM-JE2S Wire Stripping Cutting Machine is ideally suited for high-volume wire processing in various industries, particularly those requiring precise and efficient cutting and stripping of diverse wire types, including:

Electronics Manufacturing: High-speed cutting and stripping of wires for electronic components, circuit boards, and wire harnesses.
Electrical Appliance Manufacturing: Preparing wires for internal wiring in household appliances, consumer electronics, and industrial equipment.
Lighting Fixture Production: Efficiently processing wires for lamps, lanterns, LED lighting systems, and other lighting products.
Toy Manufacturing: High-volume wire preparation for electronic toys and games.
Any application requiring precise, high-speed, and automated wire cutting and stripping with touchscreen control and versatile material handling.

Conclusion:

Upgrade your wire preparation workflow with the WPM-JE2S Wire Stripping Cutting Machine and experience a significant improvement in efficiency, precision, and user control. This versatile, high-performance machine is designed to streamline your operations, reduce manual effort, and deliver consistently superior wire cutting and stripping results across a wide range of wire types. Contact us today to learn more and request a personalized quote to revolutionize your wire processing workflow!

Peel linear velocity (a/hour) L = 100 mm, 3000-5000 PCS/h (high yield)
