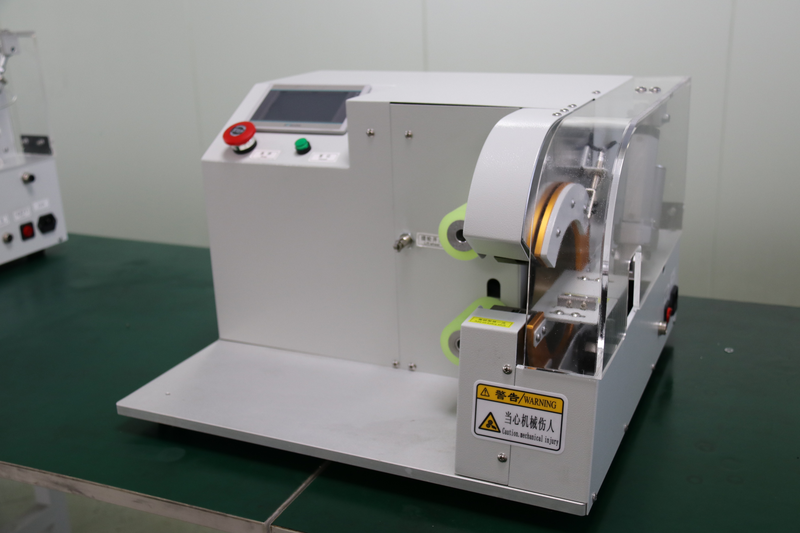

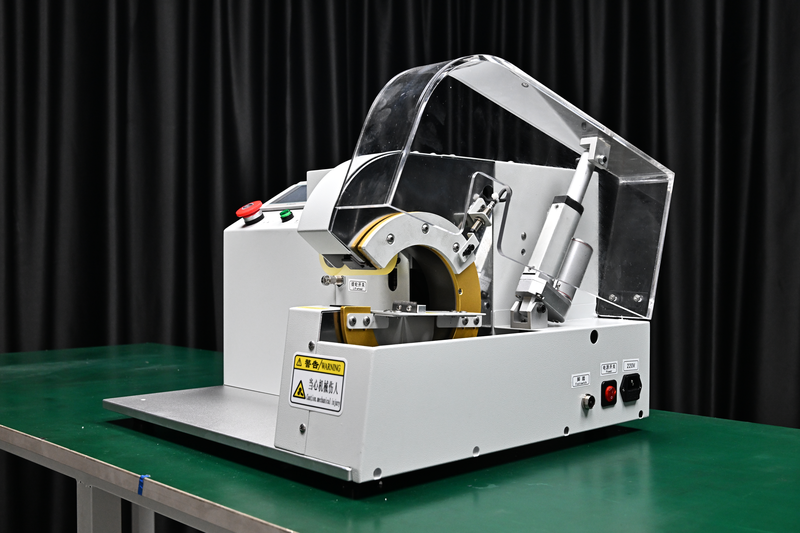

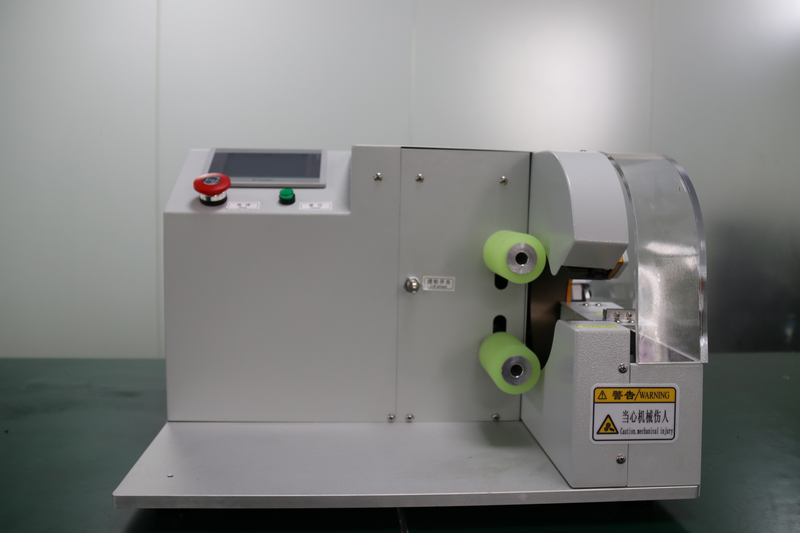

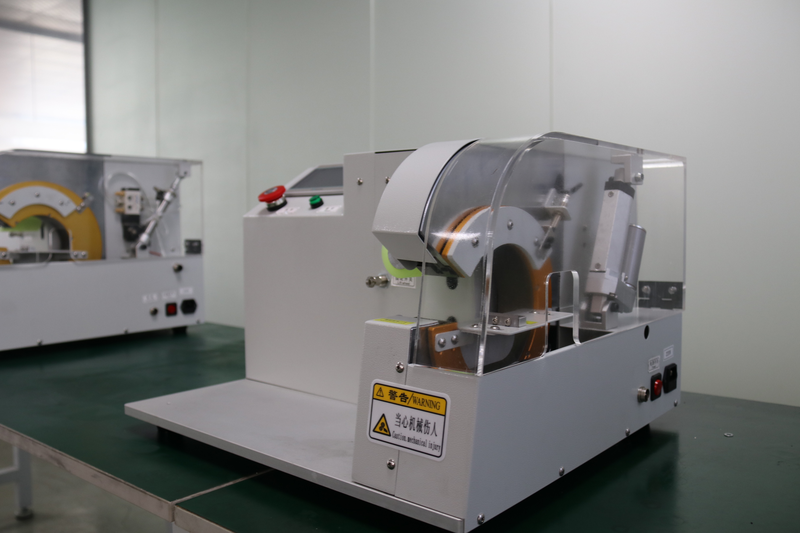

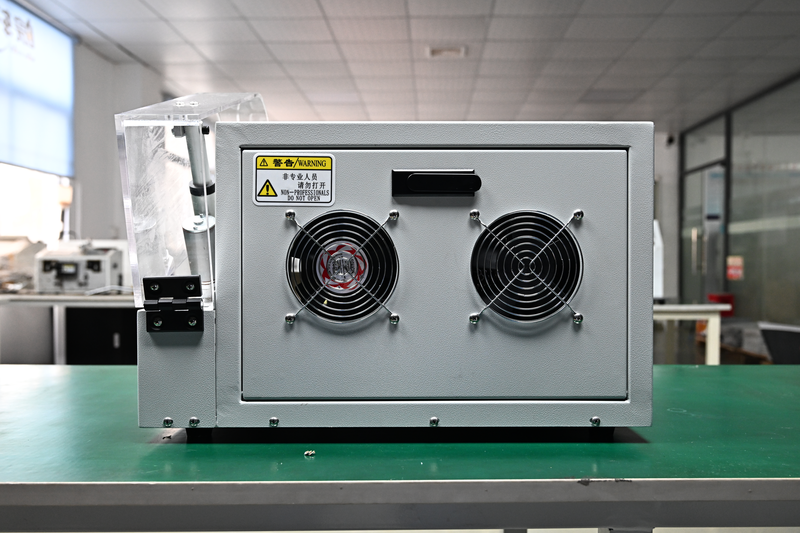

Wire Harness Tape Wrapping Machine WPM-303X

Wire Harness Tape Wrapping Machine WPM-303X Thumb

Wire Harness Tape Wrapping Machine WPM-303X

Name: Wire Harness Tape Wrapping Machine WPM-303X
Brand: JINGWEI TECHNOLOGY
SKU: WPM-303X
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-303X
Specifications
Machine Model: WPM-303X
Machine Name: Intelligent Tape Winding Machine
Operation Method: Touch Screen
Winding Mode: Spiral Winding
Applicable Wire Diameter: Ф3mm-25mm
Maximum Tape Outer Diameter: 110mm
Tape Width: 9-30mm
Winding Length: Unlimited
Tape Winding Density: Adjustable via machine parameter setting
Tape Inner Hole Size: Standard Ф38 (Other sizes like Ф32, Ф76... need to be informed in advance)
Main Machine Speed: Adjustable up to 4500 rpm
Applicable Tapes: PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, Mica Tape, Ceramic Tape, etc.
Voltage: AC220V/DC24V 50/60HZ, 110V optional
Machine Dimensions: 560*500*350mm, Net Weight: 48KG
Packaging Dimensions: Export Wooden Case 630*600*510mm, Gross Weight: 63KG
Inquiry now

WPM-303X Intelligent Tape Winding Machine

Machine Overview

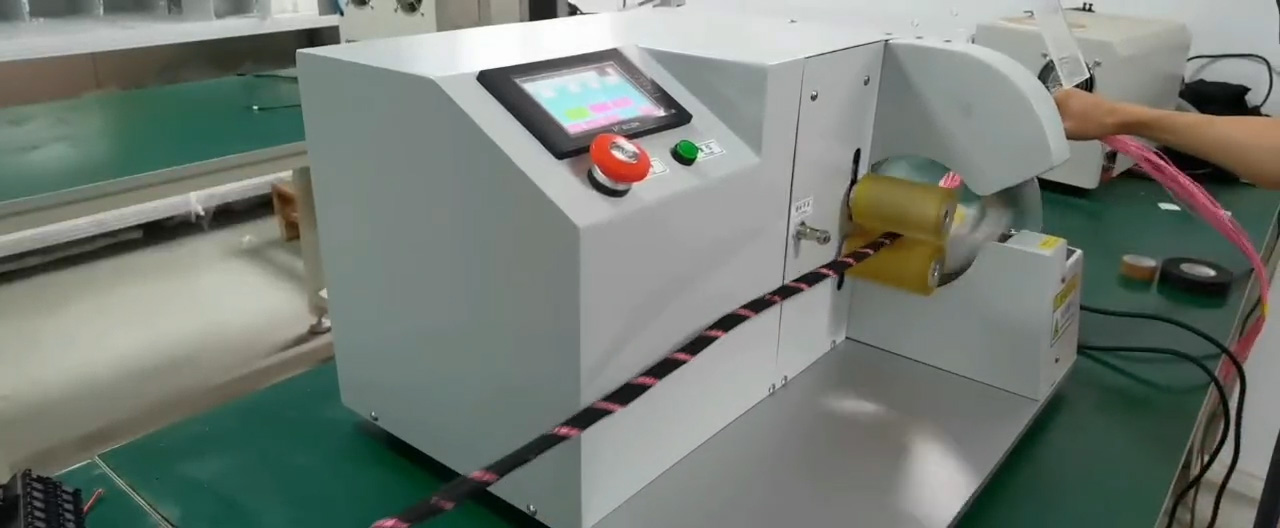

The WPM-303X is an intelligent tape winding machine featuring touch screen operation and spiral winding mode. It is specially designed for long wire winding scenarios, with adjustable tape winding density and multiple winding modes to meet diverse production needs. Its stable performance and high efficiency make it an ideal choice for professional wire harness processing.

Technical Parameters

Machine Model: WPM-303X
Machine Name: Intelligent Tape Winding Machine
Operation Method: Touch Screen
Winding Mode: Spiral Winding
Applicable Wire Diameter: Ф3mm-25mm
Maximum Tape Outer Diameter: 110mm
Tape Width: 9-30mm
Winding Length: Unlimited
Tape Winding Density: Adjustable via machine parameter setting
Tape Inner Hole Size: Standard Ф38 (Other sizes like Ф32, Ф76... need to be informed in advance)
Main Machine Speed: Adjustable up to 4500 rpm
Applicable Tapes: PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, Mica Tape, Ceramic Tape, etc.
Voltage: AC220V/DC24V 50/60HZ, 110V optional
Machine Dimensions: 560*500*350mm, Net Weight: 48KG
Packaging Dimensions: Export Wooden Case 630*600*510mm, Gross Weight: 63KG

Machine Functions & Reference Speed

Functions: Supports full winding, spaced winding and spot winding; tape overlap area is adjustable. Especially suitable for long wires.

Reference Speed: For Ф7MM corrugated pipe with 1/4 tape overlap density, winding speed reaches 6 meters per minute; for Ф5MM electronic wire with 1/3 tape overlap density, winding speed reaches 5 meters per minute.
