6-Wheel Automatic Wire Cutting & Stripping Machine JW-MAX1-6S

📅 2026-08-17 👁️ 250
  • Model No: JW-MAX1-6S

  • Specifications

    6-Wheel Automatic Wire Cutting & Stripping Machine JW-MAX1-6S
    Driving Mode Six-wheel silent hybrid stepper motor, 0.1mm feed per single step
    Processable Wire Cross Section 0.2–25mm² (Max 6mm² for BV single solid wire)
    Maximum Conduit Inner Diameter Φ11mm
    Net Weight 43kg
    Machine Overall Size 560460365mm
    Power Input 110V/220V, 50Hz/60Hz
    Rated Power 550W
    Operation Panel 4.3-inch touch screen with Chinese & English language switch
    Cutting Wire Length Range 1–9999mm
    Front & Rear Stripping Length 0–80mm for both ends
    Length Accuracy ±(0.002×L)mm
    Intermediate Peeling Times Max 16 times
    Production Output 3000–4000 pieces per hour (wire length 100mm)
    Blade Material High-speed steel, wear-resistant and reusable
    Compatible Wire Materials PVC, Teflon, braided wire, fiberglass wire
  • Inquiry now

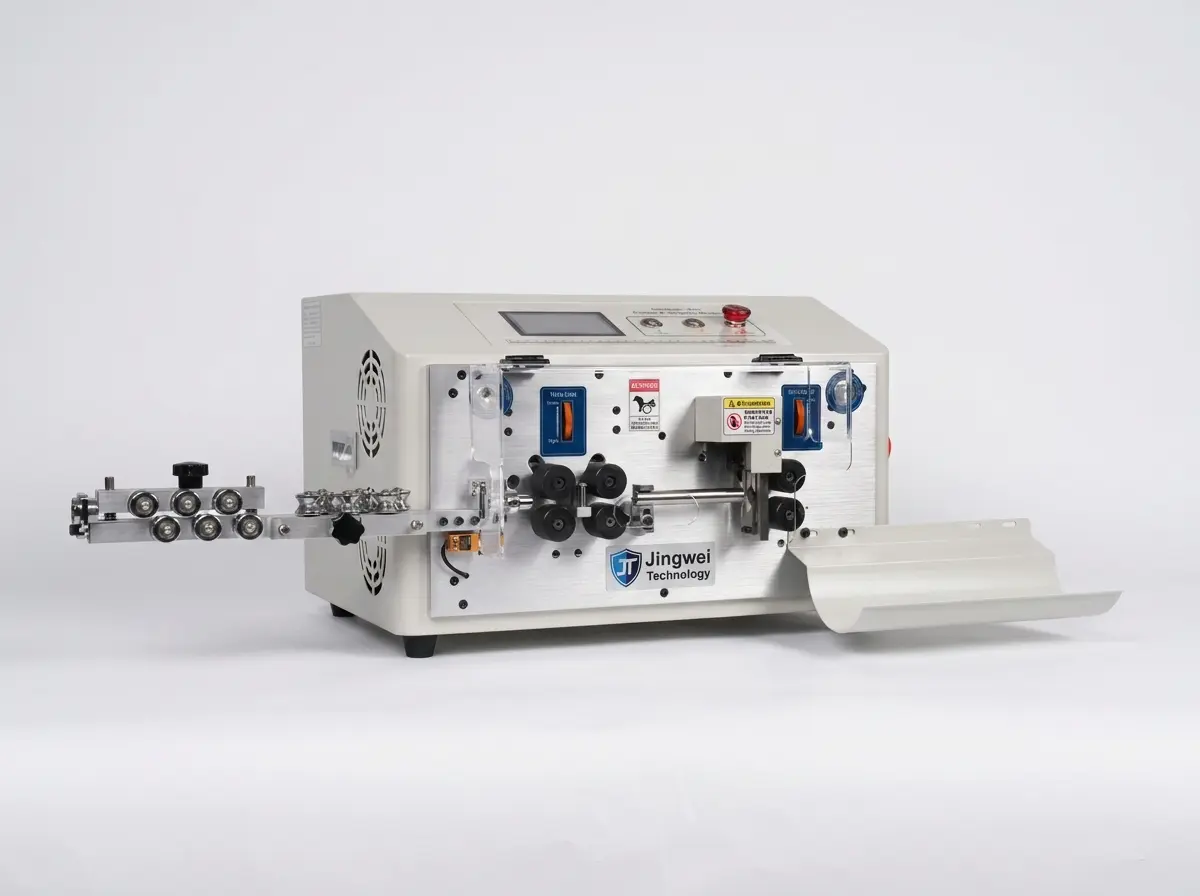

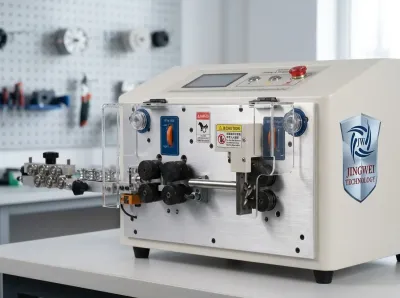

The JW-MAX1-6S is a six-wheel automatic cable stripping machine with a 4.3-inch touch screen that switches between Chinese and English, built for 0.2–25 mm² wire. It cuts to length, strips both ends to 80 mm, and runs up to 16 intermediate peel steps in one pass. Automotive harness plants, electronic wiring shops, and cable processors use it on PVC, Teflon, braided, and fiberglass insulation at 3000–4000 pieces per hour, and the 43 kg frame fits onto a bench line without a dedicated bay.

Key Features

  • Six-Wheel Stepper Feed — a silent hybrid stepper drive advances 0.1 mm per step with even clamping force, so the wire does not slip under load.
  • Built-In Straightener — reel memory is removed before the blade, which prevents surface indentation and holds strip quality.
  • 16 Intermediate Peels — full strip, half strip, and up to 16 window cuts handle multi-conductor jacket windows without a second station.
  • High-Speed Steel Blades — wear-resistant blades are reusable across campaigns and cut thick, heavy cable without nicking the copper.
  • Bilingual Touch Screen — cutting length, stripping depth, and peel segments are entered on screen, and programs are saved for repeat jobs.
  • ±(0.002 × L) Accuracy — closed-loop length control holds tolerance over long runs, with an emergency stop within reach.
  • Tool-Free Pressure Setting — presser wheel tension is adjusted by hand when the wire type changes, with no auxiliary tools.

Technical Specifications

ModelJW-MAX1-6S
Driving ModeSix-wheel silent hybrid stepper motor, 0.1 mm feed per single step
Processable Wire Cross Section0.2–25 mm² (max 6 mm² for BV single solid wire)
Maximum Conduit Inner DiameterΦ11 mm
Cutting Length Range1–9999 mm
Front and Rear Stripping Length0–80 mm at both ends
Length Accuracy±(0.002 × L) mm
Intermediate Peeling TimesMax 16 times
Production Output3000–4000 pcs/h (wire length 100 mm)
Blade MaterialHigh-speed steel, wear-resistant and reusable
Compatible Wire MaterialsPVC, Teflon, braided wire, fiberglass wire
Operation Panel4.3-inch touch screen with Chinese and English switch
Power Input110 V / 220 V, 50 Hz / 60 Hz
Rated Power550 W
Overall Size560 × 460 × 365 mm
Net Weight43 kg

Applications

  • Automotive wiring harnesses and connector leads.
  • Household electrical wire, appliance internal cabling, and lighting cable assemblies.
  • Internal cables of electronic equipment and control cabinet wiring.
  • New energy connecting wires and communication cable.
  • Small-batch production and automated mass cable processing lines, including appliance looms.

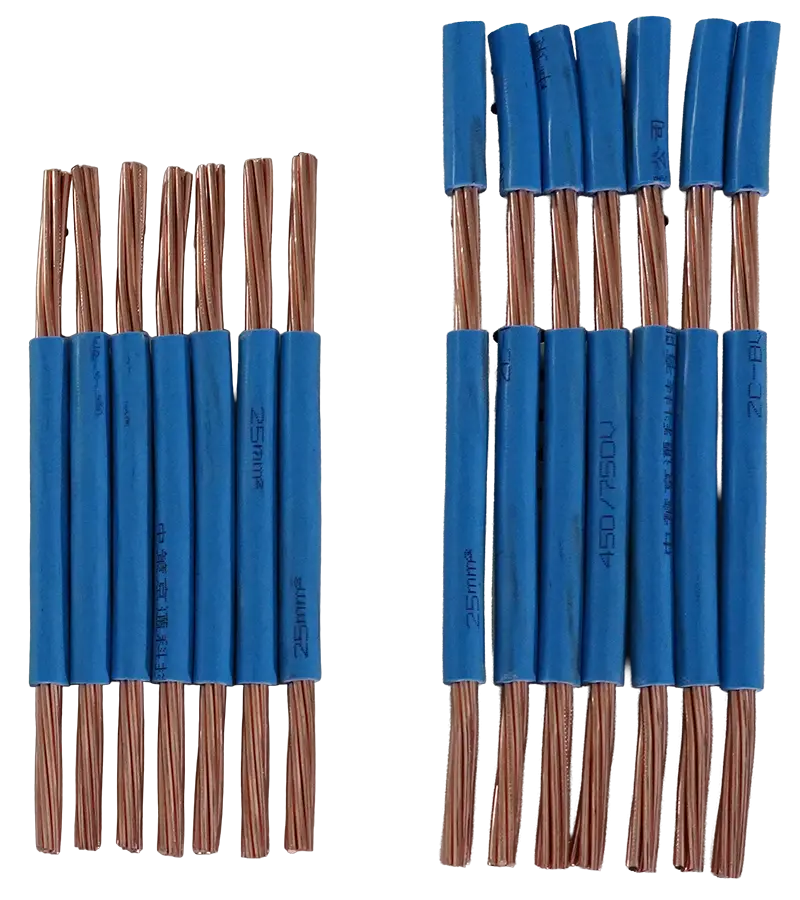

Cut and stripped wire samples processed on the JW-MAX1-6S six-wheel automatic stripping machine

Why Choose This Model

Export packing is a wooden case with spare blades and guide conduits included, so the unit goes into production without a separate tooling order. A one-year warranty runs alongside lifelong technical support and online remote parameter debugging, which shortens the learning curve for a new operator. Blades are changed on the bench with common tools, and a second set ordered with the unit covers a full campaign. If you send the wire list, programs can be prepared before dispatch.
