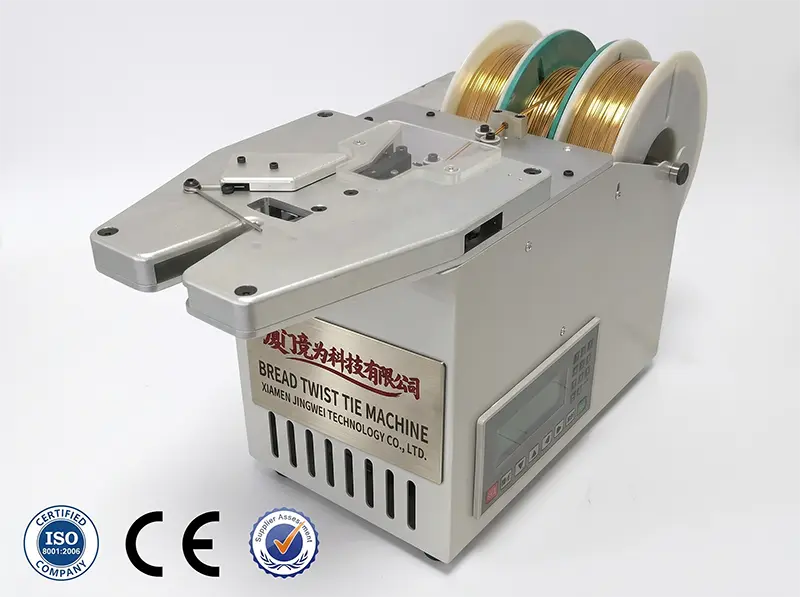

The WPM-EN closes a twist tie around the gathered neck of a bag. Banding diameter is 5 to 20 mm, which covers bread, snack, pasta and frozen food bags, and the tie is 4 mm wide golden encapsulated wire. Twisting length is set between 60 and 100 mm and the bag neck is twisted three times by default, with the turn count adjustable.
A hand-tied bag depends on the packer's grip and slows the line at every bag. The WPM-EN pulls the neck into the jaw and completes the twist in 0.6 s, with the closure set by the twist count rather than by hand pressure, so the same bag seals the same way through a shift. The encapsulated tie holds its shape without a clip or a sticker.
It is the only food-packaging unit in this group. The cable versions are the WPM-845A twist tie machine, which closes 5-30 mm wire bundles, and the 212 series, which coils and ties cable at 8-80 mm. The WPM-EN differs in both: a 4 mm encapsulated tie and a jaw shaped for a gathered bag neck rather than a round cable coil.
Key Features
1. Banding diameter 5-20 mm, adjustable for different bag neck sizes.
2. Twisting length 60-100 mm adjustable; three twists as standard, turn count adjustable.
3. 4 mm golden encapsulated twist tie, held on twin spools above the jaw.
4. 0.6 s per closure, driven from a side-mounted control panel.
5. AC 220 V 50 Hz or AC 110 V 60 Hz, under 200 W.
6. 13.7 kg, 49 x 22 x 31 cm, sitting directly on a packing bench.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-EN |
|---|
| Application | Bag neck twist tying |
|---|
| Banding diameter range | 5-20 mm (adjustable) |
|---|
| Suitable twisting length | 60-100 mm (adjustable) |
|---|
| Winding | 3 circles (adjustable) |
|---|
| Twist tie type | Golden, encapsulated core |
|---|
| Tie width | 4 mm |
|---|
| Strapping speed | 0.6 s/time |
|---|
| Voltage | 220 V 50 Hz or 110 V 60 Hz |
|---|
| Power | below 200 W |
|---|
| Dimensions | 49 x 22 x 31 cm |
|---|
| Weight | 13.7 kg |
|---|
Applications
— Bakery packing: closing bread and bun bags after filling.
— Snack and confectionery lines: sealing poly bags of chips, nuts and candy.
— Pasta and dry goods: closing 5-20 mm bag necks before cartoning.
— Frozen and fresh produce: bag closure where a clip or sticker is not wanted.
— Coffee and tea packing: sealed bag necks for retail pouches.
