Automatic Wire Rope Flat Head Fusing Machine 60KW WPM-60SF

📅 2026-05-14 👁️ 1,479
  • Model No: WPM-60SF

  • Specifications

    Model Number: WPM-60SF
    Input Voltage: 380V/50Hz or 220V/50Hz
    Rated Power: 60kW
    Fuse Wire Diameter: ≤Φ6.5 mm
    Efficiency: Approximately 30 times/min
    Wire Rope Fusing Diameter: 2-6.5mm (40AB), 2-10mm (80AB)
    Pressurized Mode: Air Pressure
    Cylinder Stroke: 25mm
    Fuse Back Head: Flat head
  • Inquiry now

The WPM-60SF automatic wire rope flat head fusing machine heats a rope end by resistance and forces it open under air pressure, leaving a compact flat head that will not scatter. Its 60 kW power stage fuses rope up to Φ6.5 mm at roughly 30 cycles per minute, with 40AB and 80AB head options covering 2–6.5 mm and 2–10 mm rope. It is specified where rope ends must stay tight through handling, coiling and transport.

Key Features

  • Resistance heating head — the alloy wire, rod, pipe or plate is brought to fusing temperature by direct current through the workpiece, so heat stays in the joint.
  • Pneumatic clamp and force-open — clamping and the force-open stroke use air pressure, keeping the head flat and the strands from brooming.
  • Guided electrode travel — the moving electrode runs on a precision limit bearing for accurate motion and low friction resistance.
  • 60 kW power stage — high current shortens heat-up and cool-down between fuses, lifting real output beyond the rated cycle figure.
  • Automatic fuse breaker — current is cut at the end of each cycle, protecting the head and the electrode from burn-through.
  • Self-diagnostic checks — the controller flags deviations before they turn into a stopped line or a rejected batch.

Technical Specifications

ModelWPM-60SF
Input voltage380V/50Hz or 220V/50Hz
Rated power60 kW
Fuse wire diameter≤Φ6.5 mm
Rope fusing diameter2–6.5 mm (40AB) / 2–10 mm (80AB)
Efficiency~30 times/min, excluding preparation such as taking the workpiece
Pressurized modeAir pressure
Cylinder stroke25 mm
Fuse back headFlat head
ControllerIndustrial control system + fuse breaker system
Delivery time10 business days

Applications

  • Wire rope manufacturing and pre-cut rope supply
  • Lifting slings assembled from rope and fittings
  • Construction and mining rope assemblies
  • Marine and offshore rope terminations
  • Cable car and elevator rope preparation

Why Choose This Model

The flat head geometry suits ropes that are coiled, bundled or fed through sheaves after fusing, because there is no raised burr to catch. The 8 mm automatic fuse breaker is held in stock and other specifications are customized, with standard delivery around 10 business days. Machines are run on the customer's own rope before shipment, and the test video is sent for confirmation before dispatch.

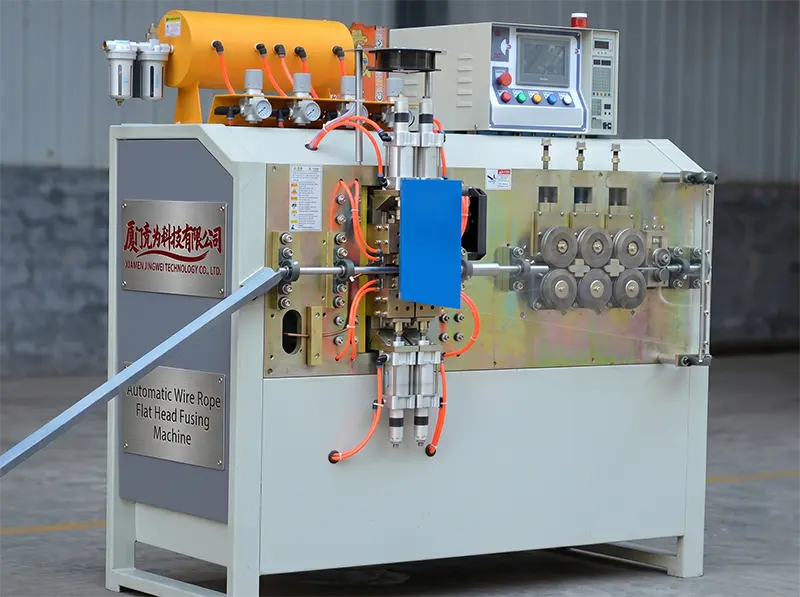

Auto Wire Rope Flathead Fusing Machine WPM-60SF
