Crimp Cross-sectional Analysis System WPM-SE4
Model No: WPM-SE4
cross-section analysis system, portable harness cross-section analyzer, cross-sectional image processing machine, wire cross-section analyzer

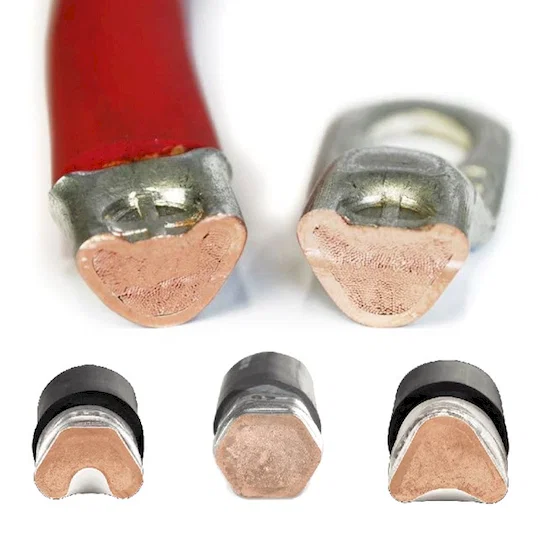

Terminal section analysis Japan imported segment less zoom optical system
Total video magnification Terminal section analysis Japan imported a segment less zoom optical system
Total video magnification 30~312X
Applicable wire range 0.01~50mm2
Power supply 100~240VAC, 50/60Hz
Imaging system Japanese industrial HD video system 5 million
Blade specifications Dia.110X0.5mm(Germany imported, delicate and durable)
Abrasive sandpaper 1200#
Standard fixture 0.01~50mm2
Special-grade high-precision reference ruler 0.01/10mm
Terminal corrosion Liquid cleaning (5S completed)
Lighting source All white adjustable LED lighting device
Dimensions W500XD350XH350
