Metal Shielding Mesh Fusing Machine JW-SM10

Name: Metal Shielding Mesh Fusing Machine JW-SM10
Brand: JINGWEI
SKU: JW-SM10
Availability: InStock
Rating: 5 (1 reviews)

Product Overview

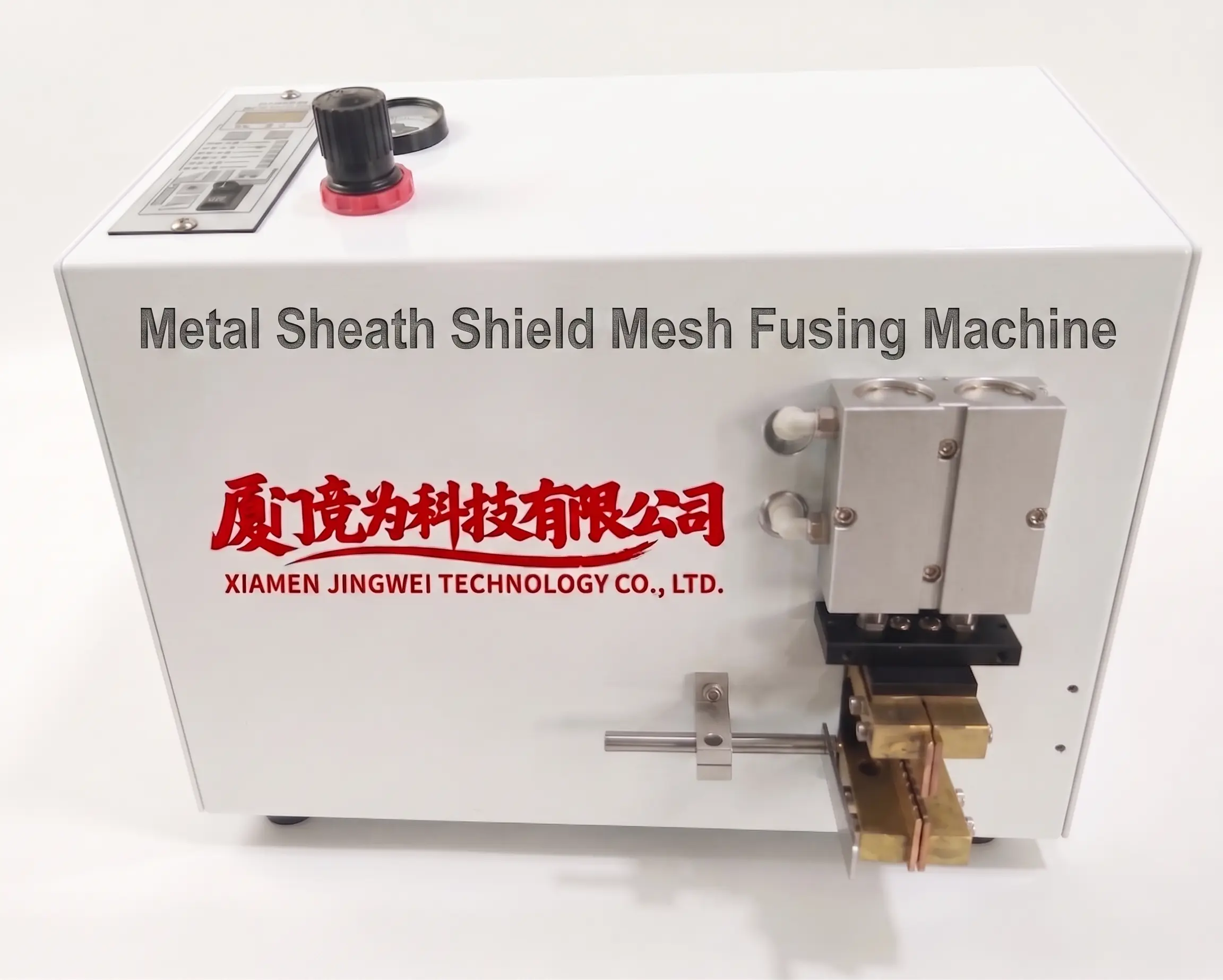

The JW-SM10 Metal Shielding Mesh Fusing Machine is an advanced industrial solution engineered specifically to cut and strip metal mesh sheaths and shielding nets. Utilizing a highly efficient thermal fusing principle, this machine perfectly melts the shielding net while ensuring the delicate inner core wire remains completely undamaged. With a rapid cutting efficiency of 1 second per piece, it is the ideal upgrade for high-volume wire processing lines.

Technical Specifications

Parameter	Specification
Voltage	220V 50Hz
Working Voltage	24V
Working Power	15KW
Air Pressure	0.2 - 0.4 MPa
Dimensions	400 x 460 x H350 mm
Weight	40 kg
Cutting Wire Diameter	1 - 10 mm
Cutting Length	2 mm to infinite length
Cutting Efficiency	1 second / piece

Operation Guide

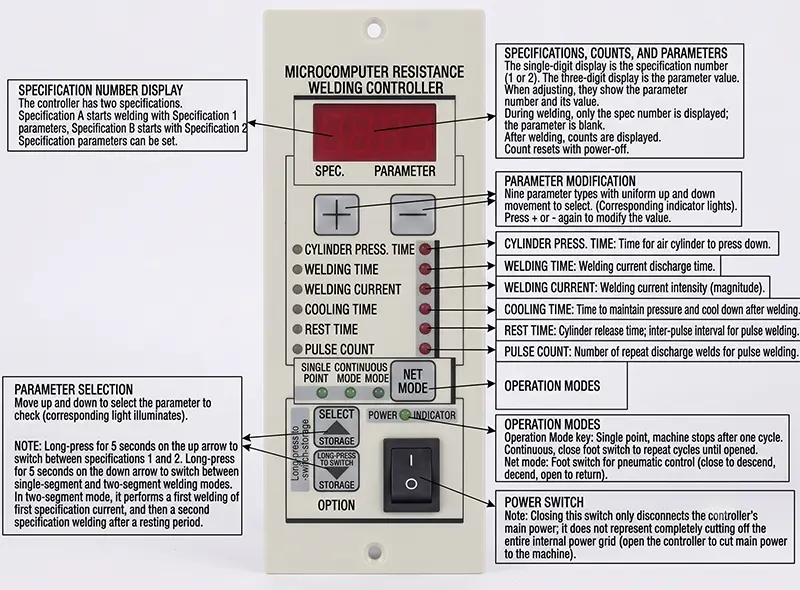

The JW-SM10 features a user-friendly microcomputer resistance welding controller.

Generally, operators only need to adjust the welding current.

Press the up and down triangle keys to align the red indicator light with the welding current position.

Next, press the plus (+) or minus (-) keys to adjust the parameter value.

Once adjusted, there is no need to manually confirm; the system automatically switches to the adjusted welding current value.

Important Precautions & Maintenance

Troubleshooting Sparks: If large sparks occur during welding, it is generally not a component failure. Carefully adjust the welding parameters, air pressure, and cylinder strokes based on the material properties and process requirements to achieve the best welding effect.

Power Safety: When repairing or disassembling the machine, please turn off the main power supply. A voltage drop remains inside the machine even when the controller power switch is disconnected.

Professional Servicing: To guarantee personal and machine safety, non-professionals must not disassemble, repair, or modify this machine.

Environmental Care: In damp weather environments, pay attention to ventilation. If necessary, perform air-drying treatments on the machine.

Child Safety: Please do not let children near this machine.

Weather Precautions: During severe lightning weather, it is recommended to turn off the main power and stop the machine to avoid unnecessary economic loss.

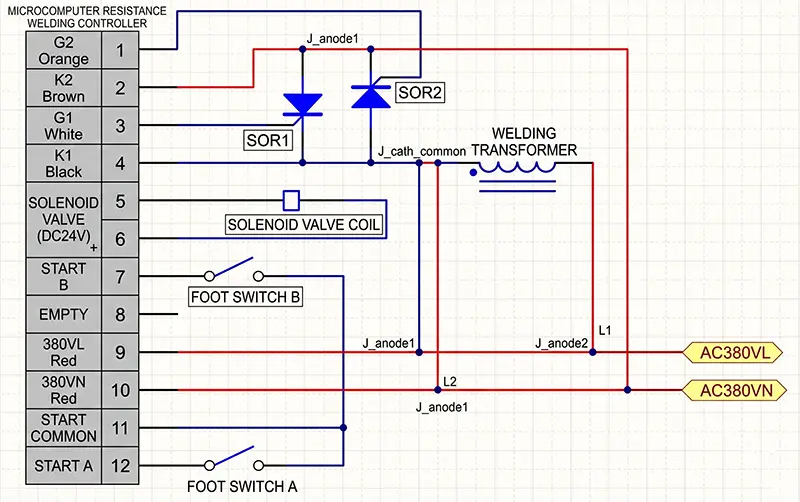

Wiring Accuracy: Wire strictly according to the wiring diagram; incorrect wiring may burn out the control box and machine components.

Grounding: Ensure the outer casing has a good grounding connection.

What is the JW-SM10 Metal Shielding Mesh Fusing Machine used for?

The JW-SM10 is designed to quickly fuse and strip metal mesh sheaths and shielding nets from wires without damaging the inner core wire. It uses a thermal fusing principle to melt the shielding net, making it ideal for high-volume wire processing lines with wire diameters from 1 to 10 mm.

How does the JW-SM10 ensure the core wire remains undamaged during operation?

The JW-SM10 employs a highly efficient thermal fusing method that precisely melts the metal shielding mesh while leaving the delicate inner core wire intact. This is achieved through controlled welding parameters, including adjustable welding current, air pressure, and cylinder strokes, which can be fine-tuned for specific material properties.

What are the key technical specifications of the JW-SM10?

The JW-SM10 operates on 220V 50Hz with a working voltage of 24V and a working power of 15KW. It requires an air pressure of 0.2 to 0.4 MPa, has dimensions of 400 x 460 x H350 mm, and weighs 40 kg. It can cut wire diameters from 1 to 10 mm, with cutting lengths from 2 mm to infinite, and achieves a cutting efficiency of 1 second per piece.

How do I operate and adjust the JW-SM10 for different materials?

The JW-SM10 features a microcomputer resistance welding controller. Operators typically only need to adjust the welding current by pressing the up/down triangle keys to align the red indicator light with the welding current position, then use the plus (+) or minus (-) keys to set the desired value. The system automatically saves changes, so no manual confirmation is needed. Adjustments to air pressure and cylinder strokes may also be required based on material properties.

What maintenance and safety precautions should be taken with the JW-SM10?

Key precautions include: turning off the main power before repairs (as voltage remains even when the controller switch is off); ensuring proper grounding; wiring strictly per the diagram to avoid damage; avoiding operation by non-professionals; keeping children away; providing ventilation in damp conditions; and stopping use during severe lightning. If large sparks occur during welding, adjust welding parameters, air pressure, and cylinder strokes rather than assuming component failure.
