Rj45 Straightening Machine Patch Cable Manufacturing Machine JW-P08

📅 2026-05-09 👁️ 2,838
  • Model No: JW-P08

  • Specifications

    Rj45 Straightening Machine Patch Cable Manufacturing Machine JW-P08
    Usage Straightening
    Name RJ45 Cable Machine
    Application RJ45 Connector
    Model JW-P08
    Type 2p-10p
    Power AC 220V, DC 24V 3A
    Weight 7 kg
    Dimension 21*11*23 cm
    Selling Units Single item
    Package size Standard wooden box with steel banding
  • Inquiry now

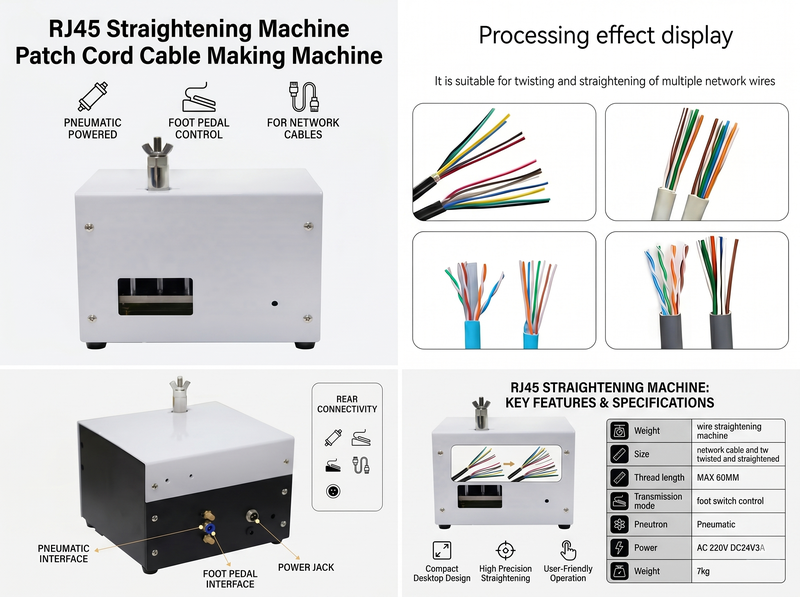

The JW-P08 is an RJ45 straightening machine that flattens and aligns the eight conductors of a network jumper cable before the plug is crimped on. It accepts 2p to 10p cable types and runs on AC 220 V with a DC 24 V control circuit. Patch cord workshops use it as bench-level cable assembly equipment to hold conductor order and cut scrap at the termination station.

Key Features

  • Purpose-built straightening head — The mechanism is set for RJ45 conductor geometry rather than adapted from a general straightener, so cores come out flat, parallel and in the right order.
  • Built for patch cord work — On a jumper cable maker bench the head is the step that decides whether all eight cores reach the plug in one push, so it is set for repeatable alignment rather than occasional use.
  • 2p to 10p coverage — One unit handles the pair counts found in voice and data patch cords.
  • Dual power input — AC 220 V mains with a DC 24 V 3 A circuit keeps operation stable where supply varies.
  • Bench-sized — At 21 × 11 × 23 cm and 7 kg the machine drops onto an existing assembly bench.
  • Low maintenance — Few moving parts keep servicing to routine cleaning, which matters where a cable manufacturing machine has to stay available for two or three shifts a day.
  • Protected shipment — Each unit is packed in a wooden case with steel banding for export transit.

Technical Specifications

ModelJW-P08 (P08)
BrandJINGWEI
FunctionStraightening
ApplicationRJ45 connector
Cable type2p–10p
PowerAC 220 V, DC 24 V 3 A
Dimensions21 × 11 × 23 cm
Weight7 kg
PackagingStandard wooden case with steel banding
Place of originXiamen, China

Applications

  • Patch cord production ahead of RJ45 plug termination
  • Network cable assembly lines running several pair counts
  • Rework benches where a rejected cord is re-straightened
  • Short-run custom lengths built to order
  • Structured cabling contractors preparing field terminations

Why Choose This Model

The tool is built and tested by JINGWEI in Xiamen, then packed in a wooden case with steel banding so it arrives undamaged. As an RJ45 connector tool it runs from a standard outlet rather than a compressed air line, which is why a line can add a second or third bench instead of routing all cable through one machine. Cables from 2p to 10p pass through the same head, so a mixed patch cord order does not call for a changeover. Replacement parts and consumables are supplied from stock, which keeps a high-volume assembly operation from stopping over a small component.
