Automatic Nylon Braiding Cable Cutting & Stripping Machine WPM-0-4

Name: Automatic Nylon Braiding Cable Cutting & Stripping Machin...
Brand: JINGWEI
SKU: WPM-0-4
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-0-4
Specifications
Model Number: WPM-0-4
Function: Heating cutting and stripping
Cutting Length: 1-9999mm
Stripping Length: Front: 30mm, Back: 30mm
Voltage: 220V/110V
Power Rate: 400W
Cutting Tolerance: (0.2+/- 0.002 by L) mm
Max Wire Core OD: 0-5mm
Optimal Wire Types: PVC, silica gel line, glass fiber cables
Blade Material: Hard tungsten steel
Output Speed: 3000-8000 PCS/h (L=100mm)
Weight: 32KG
Dimensions: 420*390*280mm
Wire Diameter Acceptance: 7.2mm
Drive System: Eight wheels drive
Control System: LCD touch screen microcomputer
Motor: Hybrid motor drive
Inquiry now

nylon braiding cable cutting stripping machine WPM-0-4
Nylon Braiding Cable Cutting And Stripping Machine, Heating Stripping Machine, USB Cable Stripping Machine, Auto Strip Cutting Machine, Wire Stripping Machine
1. The machine adopted an LCD. Touch Screen display microcomputer control.
2. hybrid motor drive, Multi-function setting.
3. Humanized stop function lets you need to stop and emergency stop, without fuss.
4. Surface mesh design, timely heat dissipation, and prolonged the service life
5. Diameter 7.2mm of wire accept Eight wheels drive, High speed: more than 5000 pcs per hour

Name WPM-0-4 Automatic heating automatic nylon wire braided cable cutting and stripping remove the machine
Function heating cutting and stripping
Cutting Length 1-9999mm
Stripping Length Front: 30mm Back: 30mm
Voltage 220V/110V
Power Rate 400W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section Max OD 0-5mm
Optimal stripped wire: PVC//silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel
Output L = 100 mm, 3000 8000 PCS/h (high yield)
Weight 32KG
Dimension 420*390*280mm

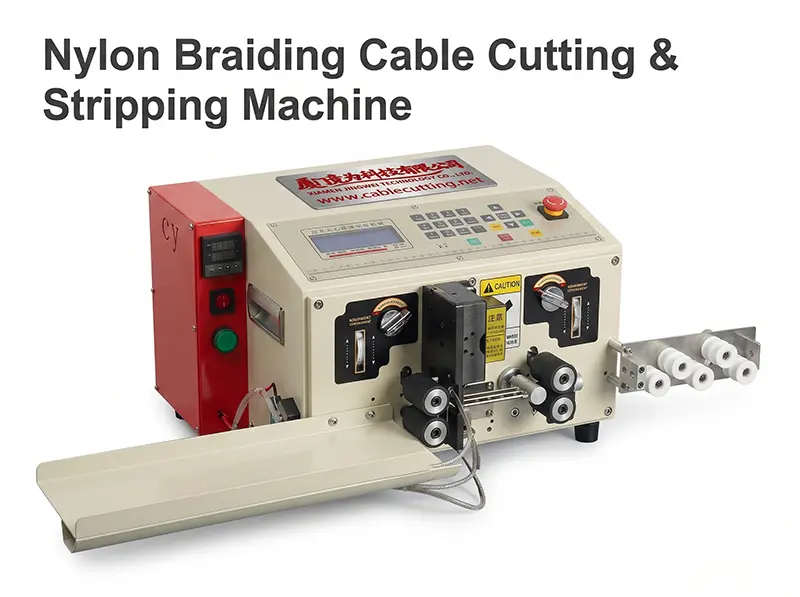

Nylon Braiding Cable Cutting And Stripping Machine, Heating Stripping Machine

sample display of Nylon Braiding Cable Cutting And Stripping Machine, Heating Stripping Machine

What types of cables is the WPM-0-4 Automatic Nylon Braiding Cable Cutting & Stripping Machine designed for?

The WPM-0-4 is specifically engineered for processing nylon braiding cables, such as those commonly used in USB cables, audio/video cables, and various data transmission lines. Its precision heating and cutting mechanism is ideal for removing the tough nylon outer sheath without damaging the delicate internal conductors, making it perfect for cable harness manufacturing.

How fast is the WPM-0-4 machine, and what is its production capacity?

This is a high-speed industrial wire processing machine capable of cutting and stripping over 5000 pieces per hour. This exceptional throughput significantly boosts production efficiency for industrial harness manufacturing, reducing labor costs and meeting tight production deadlines with consistent, reliable output.

What is the maximum cable diameter the WPM-0-4 can handle?

The WPM-0-4 automatic wire stripping machine is designed to handle nylon braiding cables with a maximum outer diameter of 7.2mm. This capacity covers a wide range of standard industrial cables, providing versatility for various projects within cable harness production.

How user-friendly is the operation of this heating stripping machine?

Operation is streamlined via an intuitive LCD touch screen control panel. This interface allows for easy programming of strip lengths, cutting parameters, and heating temperature. The user-friendly setup minimizes training time, reduces human error, and enables quick changeovers between different cable processing jobs.

What are the main benefits of using an automatic heating stripper like the WPM-0-4 for industrial wire processing?

The WPM-0-4 offers multiple key benefits: 1) **Superior Quality:** The heating element cleanly melts the nylon braid for a perfect strip without nicking conductors. 2) **High Efficiency:** Automated, high-speed operation maximizes output. 3) **Consistency:** Ensures every strip is identical, crucial for reliable cable harness assembly. 4) **Cost-Effectiveness:** Reduces manual labor and material waste. It's an essential piece of cable harness equipment for scaling production while maintaining precision.
