OTP High Precision Horizontal Mold for Terminal Crimping JW-AP14

📅 2023-01-06 👁️ 589
  • Model No: JW-AP14

  • Specifications

    Model: JW-AP14
    Type: OTP horizontal crimping mold, U-shaped applicator die
    Application: Wire terminal crimping
    Fits: OTP terminal crimping machines
    Orientation: Horizontal
  • Inquiry now

JW-AP14 is an OTP horizontal crimping mold with a U-shaped applicator die, fitted to OTP terminal crimping machines for wire terminal crimping. It is a mechanical die: the closing stroke comes from the press ram through the guide block, with no air cylinder carried on the body.

The die closes horizontally into a square ram guide, and the terminal is brought in from the left on a short track by a spring arm. The crimp inserts sit in a bolted block above the anvil with two knurled adjusters on the block face, an orange guard covers the top edge of the ram, and a deflector at the right of the bed turns the finished lead away from the crimp zone. The guide block holds the ram square through the stroke, which is what keeps the crimp depth repeatable between cycles.

It is used as a direct replacement die on OTP horizontal stations, and as a second die where the same machine has to run another terminal without a full applicator change.

Key Features

1. OTP horizontal die form, with the ram closing across the barrel in a square guide block

2. U-shaped applicator die seat for open-barrel terminals

3. Two knurled adjusters on the insert block face, reached from the front of the mold

4. Spring feed arm and short entry track holding the terminal in line at the anvil

5. Guard over the top edge of the ram and a deflector at the right of the bed to keep finished leads clear

6. Bolted insert block on a single base, so the crimp insert is changed without stripping the guide

Technical Specifications

ParameterSpecification
ModelJW-AP14
TypeOTP horizontal crimping mold
Die formU-shaped applicator die
Crimp orientationHorizontal
Machine fitOTP terminal crimping machines
ApplicationWire terminal crimping

Applications

— OTP terminal crimping machines running horizontal U-shaped open-barrel terminals

— Cable harness lines crimping small-gauge leads at a horizontal station

— Replacement of a worn horizontal OTP die, reusing the existing base and ram adapter

— Stations that run two terminal sizes, where a second die is kept set and swapped in

— Bench and short-run crimping where the open front allows each crimp to be checked

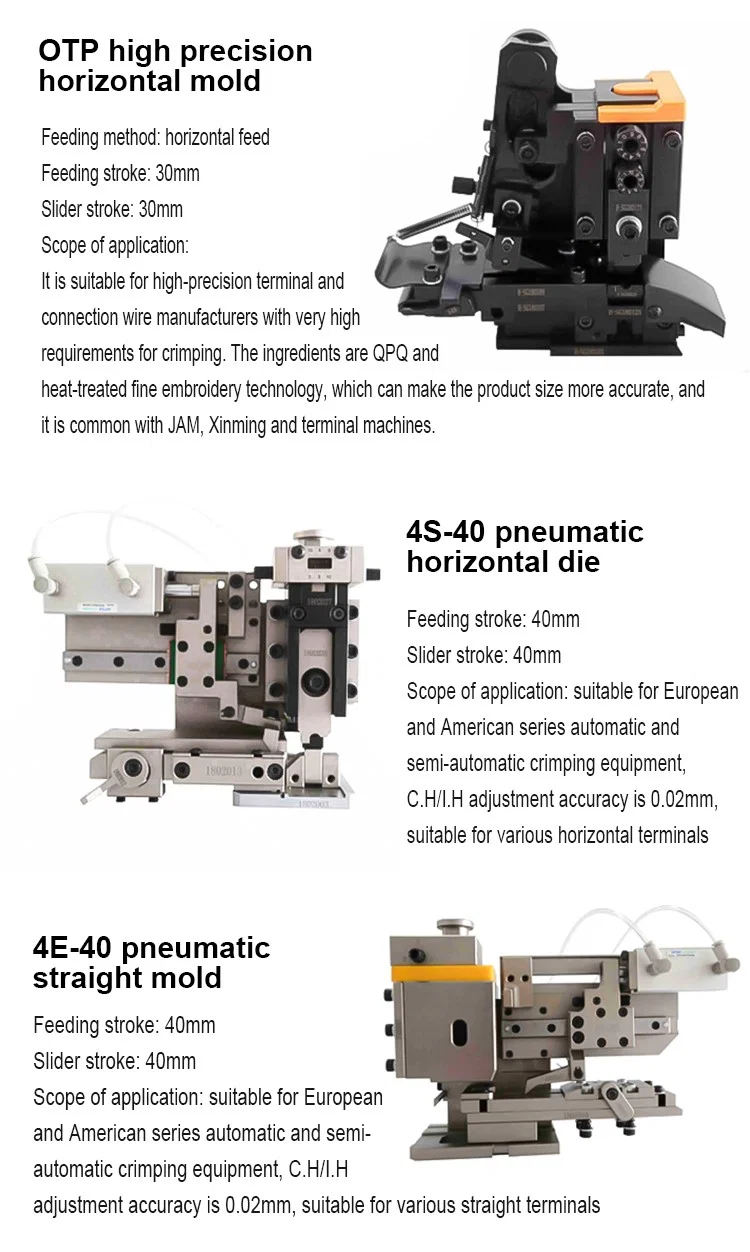

OTP high precision horizontal mold, 4S-40 pneumatic horizontal die and 4E-40 straight mold
