OTP Horizontal Terminal Crimping Mold for Wire Harness Machines JW-AP11

📅 2023-01-06 👁️ 1,752
  • Model No: JW-AP11

  • Specifications

    Operation Mode: Horizontal crimping
    Application: Terminal machine applicator die
    Compatibility: JST Terminal Crimping Machine, OTP U-shaped terminals
    Technology: High-frequency electronics precise positioning
    Noise Level: Super mute operation
    Energy Efficiency: Save electricity
    Transfer Mode: More convenient operation
  • Inquiry now

JW-AP11 is an OTP horizontal crimping mold for JST terminal crimping machines, running OTP U-shaped open-barrel terminals on a horizontal applicator station. The die is supplied as one mold unit with anvil, crimp insert and feed track on a common base, and mounts on the station bed in place of the die it replaces.

The ram closes horizontally across the barrel and the strip is indexed through a track at bed level, with a spring-loaded feed arm following the index stroke from the side. That keeps the strip under tension between crimps and leaves the front of the die open, so barrel and insulation positions can be checked before the ram comes down. The die body is a single block carrying the anvil, the crimp insert and the track, with the adjusters on the face of the block.

It fits JST machines as a replacement die on an existing applicator station, and as the horizontal die where the same terminal is also run on a vertical press and both stations have to hold one crimp reference.

Key Features

1. OTP horizontal die form, with the ram closing across the barrel and the terminal strip indexed at bed level

2. U-shaped open-barrel terminal seat matched to OTP terminals

3. Spring-loaded feed arm and curved entry chute that carry the carrier strip into the crimp position

4. Adjustment screws on the die block face for crimp height and insulation crimp, reached without removing the mold

5. Mounting pattern for the JST terminal crimping machine applicator station

6. Die body, anvil and track held on one base block, so the mold is removed and replaced as a unit

Technical Specifications

ParameterSpecification
ModelJW-AP11
Operation modeHorizontal crimping
Die typeOTP applicator die, U-shaped
CompatibilityJST terminal crimping machines
Terminal typeOTP U-shaped terminals
PositioningHigh-frequency electronic precise positioning
NoiseLow-noise operation
EnergyElectricity saving

Applications

— JST terminal crimping machines running OTP U-shaped open-barrel terminals

— Horizontal applicator stations in cable harness assembly

— Replacement of a worn horizontal OTP die, reusing the JST base and ram adapter

— Lines that run the same terminal on a horizontal press and a vertical press

— Short runs where the open front of the die allows each crimp to be inspected in place

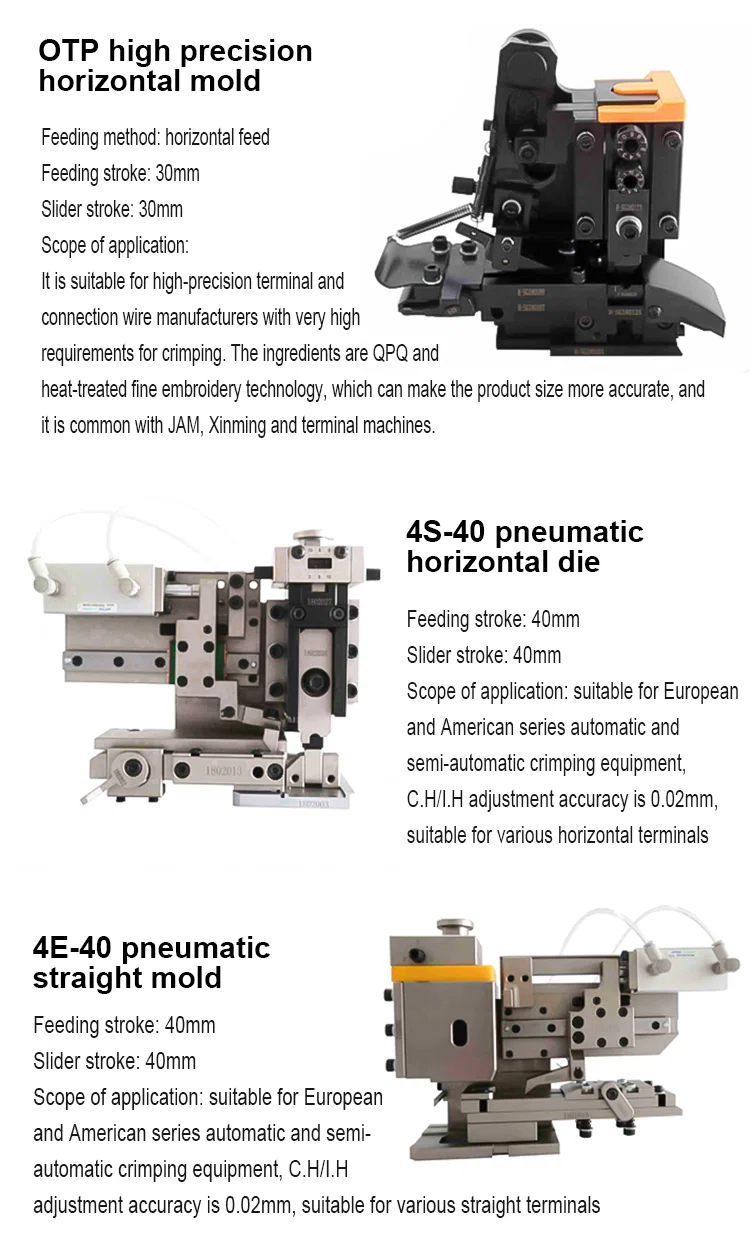

OTP horizontal mode applicator with scale knobs and crimped bullet terminal insetSuper mute terminal machine with horizontal, vertical and single grain moldsOTP straight mold and OTP single grain mold with weight and feeding specsSingle U-shaped mold and OTP U mold with feeding block and stroke dataFlag model, 2000# mold and plastic mold with weight and stroke specificationsOTP high precision horizontal mold, 4S-40 pneumatic horizontal die and 4E-40 straight mold4S-30 pneumatic horizontal die and 4E-30 mechanical straight mold for automotive terminalsJST horizontal mode, JST straight mold and JST flag mold4TS precision horizontal mold and 4TE precision straight mold with stroke specificationsPneumatic super wide transverse die, super wide horizontal die and European single die
