Pneumatic Multi-Core Cable Stripper No Blade Change WPM-0.5-30

📅 2026-05-16 👁️ 1,936
  • Model No: WPM-0.5-30

  • Specifications

    Pneumatic Multi-Core Cable Stripper No Blade Change WPM-0.5-30
    Wire Size Capacity: Up to 35 mm²
    Strip Length: Up to 30 mm
    Blade Type: Universal V-blades (no change required)
    Operation: Pneumatic/electric drive with sensor trigger
    Application: Single-conductor wires & multi-core cable inner wires
    Suitable Industries: Telecommunications, automotive, electrical
  • Inquiry now

The WPM-0.5-30 is a pneumatic bench stripper for single-conductor wire and the inner wires of multi-core cable up to 35 mm2, with a strip length of up to 30 mm. One universal V-blade pair covers the full range without a blade change.

Blade-change strippers cost time at every gauge change: the blade is set to the conductor size, the gap is checked on a scrap piece, and a blade set too deep nicks the copper. The WPM-0.5-30 closes a V-blade pair on the insulation and lets the V mouth follow the conductor diameter, so the same blades run from light control wire to 35 mm2 cable. A sensor at the entry starts the cycle when the wire is inserted, which leaves both hands free to hold the cable and set the strip length.

The WPM-0.5-10MM2 covers 0.5-10 mm wire diameter on the same no-blade-change principle, and the WPM-5-150MM2 is a cutting-only unit for 5-150 mm2 cable. The WPM-0.5-30 is the mid-range stripper: 35 mm2 capacity, 30 mm maximum strip length and a bench housing with its air regulator built in, for harness shops that strip inner wires as well as single conductors.

Key Features

1. A universal V-blade pair strips wire up to 35 mm2 without a blade change, with the V mouth following the conductor diameter across the range.

2. Strip length up to 30 mm, set at the machine, for both single conductors and multi-core inner wires.

3. A sensor trigger at the wire entry starts the stripping cycle on insertion, so the operator holds the cable with both hands.

4. Pneumatic cylinder drive gives a repeatable blade stroke independent of operator force, with no motor heat at the bench.

5. An integral filter-regulator with pressure gauge on the side of the housing sets the working pressure at the machine.

6. The bench housing has a V entry guide at the front and a guard over the blade area, sized to stand beside a harness board.

Technical Specifications

ParameterSpecification
ModelWPM-0.5-30
Machine typePneumatic multi-core cable stripper, no blade change
Wire size capacityUp to 35 mm2
Strip lengthUp to 30 mm
Blade typeUniversal V-blades, no change required
OperationPneumatic/electric drive with sensor trigger
ApplicationSingle-conductor wires and multi-core cable inner wires
Suitable industriesTelecommunications, automotive, electrical
Blade configuration2 universal V-jaws, no change required

Applications

— Automotive harness: inner wires of multi-core cable stripped before terminal crimping.

— Telecommunications: drop wire and jumper conductors stripped for termination in distribution frames.

— Electrical panel building: single conductors up to 35 mm2 stripped before fitting ferrules and lugs.

— New energy battery packs: flexible battery cable ends stripped for busbar and connector assembly.

— Appliance manufacturing: supply cord conductors stripped for terminal blocks and earth studs.

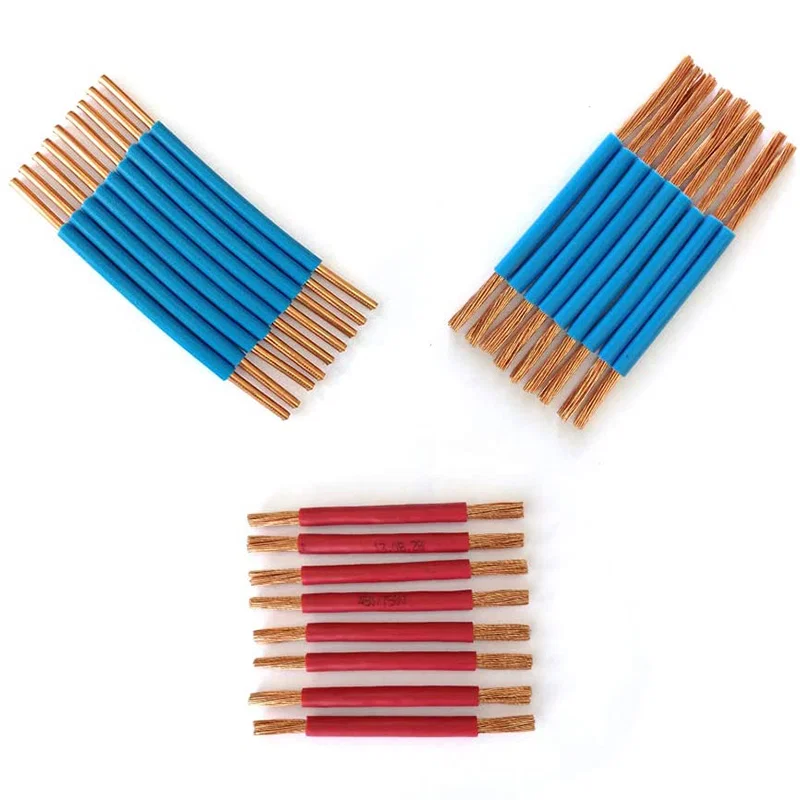

WPM-0.5-30 pneumatic cable stripper, white housing with black top opening and regulatorStripped wire samples, blue and red insulation with copper ends exposed
Pneumatic Multi-Core Stripper (No Blade Change)
