Pneumatic wire stripping machine WPM-305
- Model No: WPM-305
- Wire Stripping Machine has been improved to Cable Wire Stripping Machines, which is also known as Cable Peeling Machine.
Stripping length 50mm
Wire Dia. 0-5mm
Air Pressure 0.3-0.7mpa
Voltage 220V//50HZ 110V/60HZ
Force 31-73KG
Weight 20KG
Size L400*W300*H270mm - Inquiry now
Wire Stripping Machine has been improved to Cable Wire Stripping Machines, which is also known as Cable Peeling Machine.

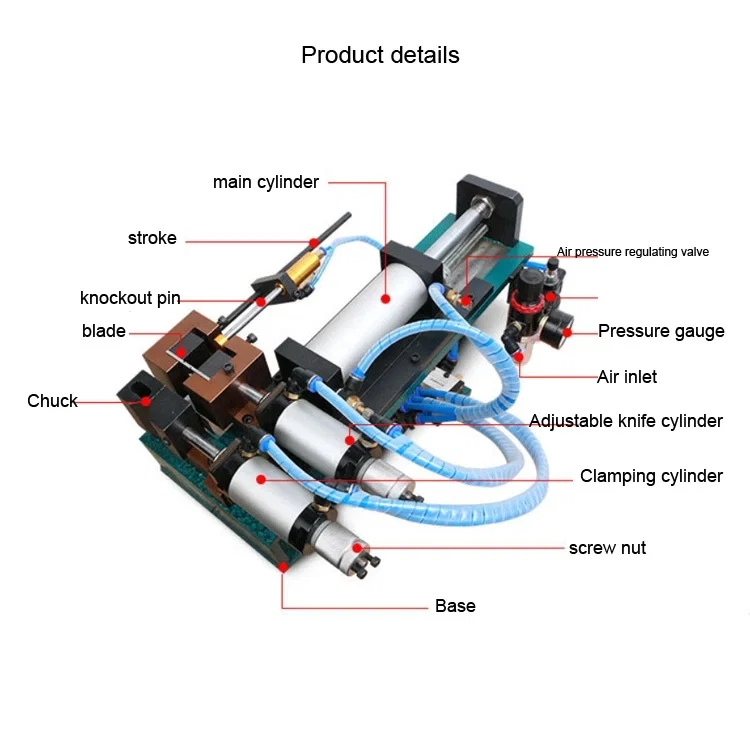

Pneumatic wire stripping machine (WPM-305)
Function
1. Bevel design, according to somatology.
2. Dual-driving cylinder, no spring breakage.
3. Self-feeding oil and supply. A timely oil supply to the cylinder can decrease the abrasion of the interior cylinder and lengthen life.
4. Special sliding holder, balance stroke, and high peeling precision. Electric control, easy operation.
5. Adjustable structure, and wire thickness.
6. Suitable for short cables with small diameters, such as AC/DC, power wire, computer cable, electronic cable, and multi-core cable.
Model WPM-305
Stripping length 50mm
Wire Dia. 0-5mm
Air Pressure 0.3-0.7mpa
Voltage 220V//50HZ 110V/60HZ
Force 31-73KG
Weight 20KG
Size L400*W300*H270mm
|
Model |
WPM-305 |
WPM-310 |
WPM-315 |
WPM-330 |
WPM-416 |
|
Wire Size |
1 - 5mm |
1 - 10mm |
1 - 15mm |
1 - 20mm |
1 - 30mm |
|
Stripping Length |
3 - 50mm |
3 - 100mm |
3 - 150mm |
3 - 330mm |
3 - 150mm |
|
Cylinder Dia. |
Ø40 |
Ø50 |
Ø60 |
Ø60 |
Ø80 |
|
Force |
31-37Kg |
49-115Kg |
84-196Kg |
84-196Kg |
165-300Kg |
|
Power Supply |
220V |
220V |
220V |
220V |
220V |
|
Dimension |
40×30×27cm |
48×33×28cm |
60×42×36cm |
110×55×45cm |
80×62×55cm |
|
Net. Weight |
20Kg |
25Kg |
35Kg |
65Kg |
50Kg |
|
Packing |
Packed in Wood Case (Standard Export Packing) |
||||
