Pneumatic Terminal Crimping Machine 6-4 Wire Connector WPM-06M
Pneumatic Terminal Crimping Machine 6-4 Wire Connector WPM-06M Thumb
Video Thumbnail

Pneumatic Terminal Crimping Machine 6-4 Wire Connector WPM-06M

📅 2026-03-15 👁️ 2,217
  • Model No: WPM-06M

  • Specifications

    Model Number: WPM-06M
    Operation Type: Pneumatic (Air Powered)
    Function: Multi-function terminal crimping
    Control: Foot pedal operation
    Portability: Portable and lightweight
    Footprint: Small bench top design
    Speed: 10 times faster than manual crimping
  • Inquiry now

The WPM-06M is a portable pneumatic crimping machine for wire terminals, built as a small bench-top unit with a carry handle. It is air powered and foot-pedal controlled, and the maker rates it at 10 times the speed of manual crimping. The die head sits at the front of the body, with the air fittings at the rear.

Hand crimp tools limit output to what an operator's grip can take over a shift, and crimp height drifts as the hand tires. On the 06M a pneumatic cylinder drives the die and the foot pedal releases the cycle, so both hands stay on the wire and the terminal and the crimp is set by the die rather than by grip force. The body carries a handle, and the footprint is small enough for the unit to be moved between benches.

It is the portable end of the pneumatic range. The WPM-20M and WPM-50L are bench-mounted units rated at 2.5 T output, the WPM-300L at 9.0 T with interchangeable dies and the WPM-5ND at 1.3 T. The 06M is the one to carry to the harness board, for terminals crimped at the point of assembly rather than at a fixed press.

Key Features

1. Foot pedal releases the crimp cycle, leaving both hands on the wire and terminal.

2. Pneumatic cylinder drives the die, so crimp height comes from the die setting rather than from operator grip.

3. Rated at 10 times the speed of manual crimping on the same terminal.

4. Carry handle on the body and a small bench-top footprint, so the unit can be moved to the harness board.

5. Die head at the front of the body with the air fittings at the rear, keeping the hose clear of the working area.

6. Multi-function terminal crimping: the press is listed for terminal work in general, with the die matched to the terminal family in use.

Technical Specifications

ParameterSpecification
ModelWPM-06M
Machine typePortable pneumatic terminal crimping machine
Operation typePneumatic (air powered)
FunctionMulti-function terminal crimping
ControlFoot pedal operation
PortabilityPortable and lightweight
FootprintSmall bench-top design
Speed10 times faster than manual crimping

Applications

— Control panel building: insulated ferrules crimped on panel wire.

— Harness assembly: loose terminals crimped at the harness board.

— Ground leads: ring and fork terminals on braided ground wire.

— Machine wiring: tube terminals on motor and sensor leads.

— Repair bench: single terminals replaced without a fixed press.

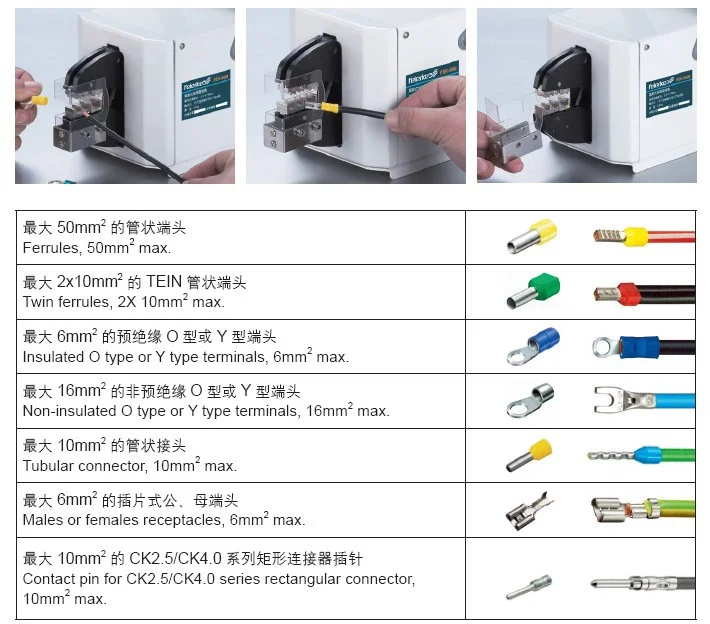

Specification table listing WPM-20M and WPM-06M crimping range, air pressure and outputClose-up of crimping die positioner holding ferrules with red, blue and white wiresTerminal capability chart showing ferrules, twin ferrules and insulated O or Y terminals
