Semi-Auto Wire Folding Labeling Machine, 900-1000pcs/H JW-T107
Semi-Auto Wire Folding Labeling Machine, 900-1000pcs/H JW-T107 Thumb Semi-Auto Wire Folding Labeling Machine, 900-1000pcs/H JW-T107 Thumb
Video Thumbnail

Semi-Auto Wire Folding Labeling Machine, 900-1000pcs/H JW-T107

📅 2026-05-16 👁️ 2,411
  • Model No: JW-T107

  • Specifications

    Applicable label roll specifications: Inner diameter: ¢76mm, Outer diameter: ¢240mm
    Labeling accuracy: ±0.5-1mm (excluding product and label itself errors)
    Labeling speed: 900-1000pcs/H (actual speed depends on label size and operator proficiency)
    Applicable wire diameter range: Standard: 4mm-10mm; Customization available for sizes beyond this range
    Applicable label specifications: Length: 10mm~40mm (customization available for other sizes); Width (folding direction): 30mm~130mm
    Overall machine dimensions: Approximately 650mm×780mm×1100mm (Length×Width×Height)
    Applicable power supply: 220V/50Hz, Rated power: 0.25kW
    Overall machine weight: Approximately 80kg
  • Inquiry now

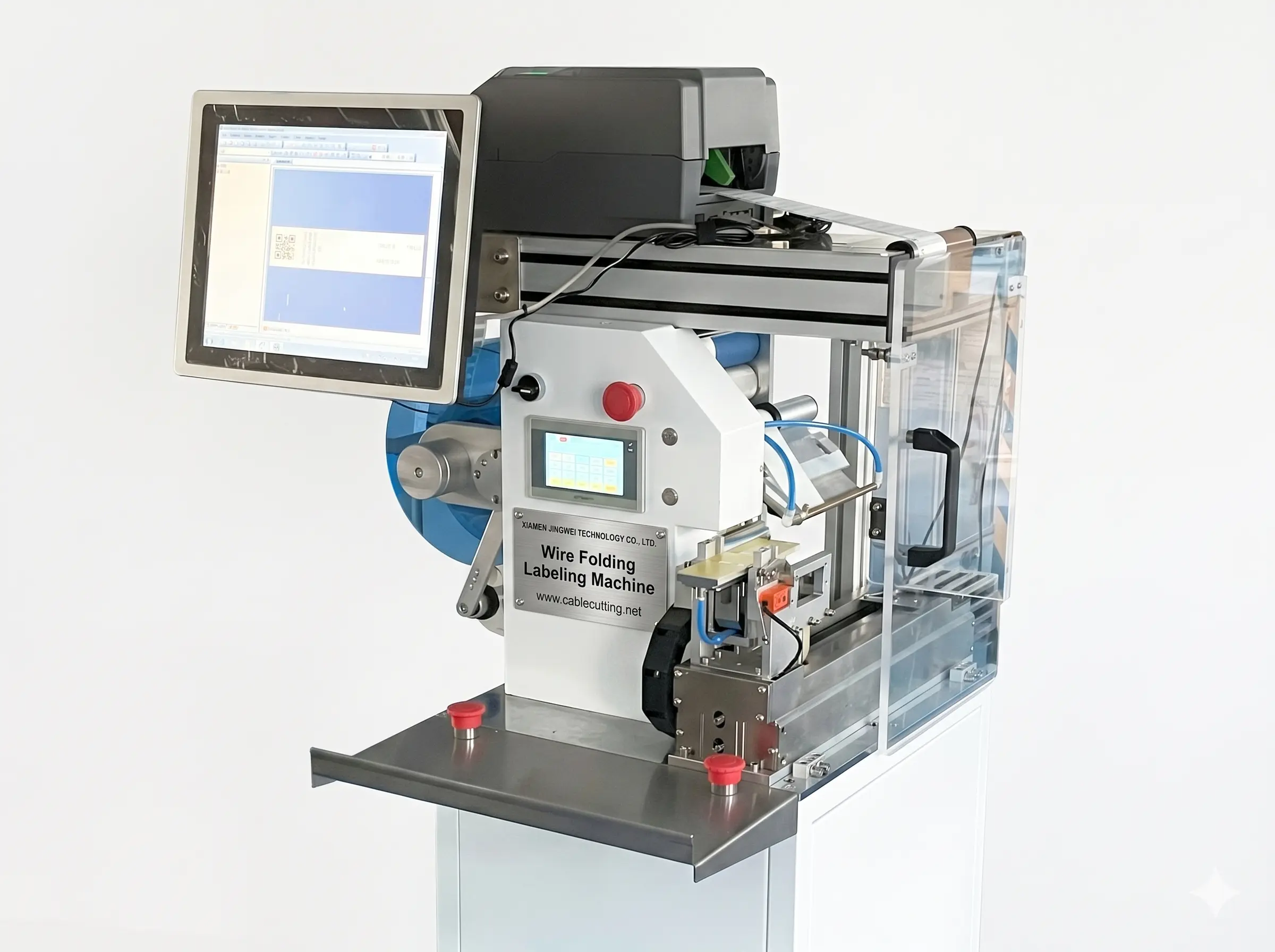

The JW-T107 is a semi-automatic labeling machine that folds a hang label around a cable or small product and applies it in one pass. Wire folding and label placement happen together, on one fixture, in a single stroke. It handles 4–10 mm wire as standard, labels 10–40 mm long and 30–130 mm wide in the folding direction, and runs at 900–1000 pieces per hour. Wire assemblers, packaging lines and consumer goods plants use it where hand folding cannot hold a consistent position.

Key Features

  • ±0.5–1 mm placement — Label position repeats within half a millimetre to one millimetre, excluding errors carried by the product and the label themselves.
  • Custom fixtures — Fixtures are built around the product, so switching between cable, tubing and small molded parts needs no rebuild of the machine.
  • PLC and touch screen — A Wecon PLC with a matching touch screen stores the recipe, which shortens changeover and cuts operator training time.
  • Named drive and sensing — HIWIN slide rail, TBI lead screw, Sick label detection sensor and Mean Well switching supply are fitted as standard.
  • 900–1000 pcs/h — The working rate depends on label size and operator skill, so the figure is a production estimate rather than a peak claim.
  • Optional inline printing — A barcode printer with computer and software can print barcodes and QR codes onto the label during the run, giving a single print-and-apply step.

Technical Specifications

ModelJW-T107
Label roll inner diameterФ76 mm
Label roll outer diameterФ240 mm
Labeling accuracy±0.5–1 mm
Labeling speed900–1000 pcs/h
Applicable wire diameter4–10 mm standard, customization beyond range
Label length10–40 mm, customization available
Label width, folding direction30–130 mm
Machine dimensionsApprox. 650 × 780 × 1100 mm
Power supply220V / 50 Hz, rated 0.25 kW
ControlWecon PLC + Wecon touch screen
Slide railHIWIN / domestic high-quality brand
Lead screwTBI / domestic high-quality brand

Applications

  • Power cords, data cables and earphone cables that carry a folded hang label.
  • Plastic pipes, hangers, tableware and disposable bowls and plates.
  • Food packaging such as lollipops and jelly cups with airplane-hole hanging labels.
  • Other small and medium products that need folding labeling or hanging-hole labeling.
  • Circular cable labeling, where full-circle wrap labeling is quoted as a customization.

Why Choose This Model

Every semi-automatic labeling machine is built to the product it will run, with the fixture and label path confirmed against a sample before shipment. Label sizes and wire diameters outside the standard range, along with the inline print module and full-circle wrap function, are quoted as options so the base price stays clear. Machines are run with customer labels before packing, and our engineers support changeover settings after delivery.

Semi-Automatic Wire Folding and Labeling Machine JW-T107
