Multi-Core Parallel Wire Stripping Machine for AWG 24-34 WPM-012

📅 2026-05-16 👁️ 2,478
  • Model No: WPM-012

  • Specifications

    Multi-Core Parallel Wire Stripping Machine for AWG 24-34 WPM-012
    Wire Range: AWG #24 to AWG #34
    Type: Multi-core parallel stripping machine
    Application: Cable tail stripping processing
    Features: Automatic thread cleaning device, durable blade
    Suitable Wires: Computer multi-core wires, telephone wires, parallel wires, power wires
  • Inquiry now

The WPM-012 is a multi-core parallel wire stripping machine for flat and parallel conductor constructions in the AWG 24 to AWG 34 range. It is a bench-top unit with a wide blade block that closes across the full width of the wire, so the whole conductor row is stripped in one stroke instead of one core at a time.

Compared with hand stripping, the WPM-012 removes the two defects that dominate small parallel cable: uneven strip length between adjacent conductors, and nicked strands from a knife drawn by hand. The blade block spans the row and cuts every core to the same depth in the same cycle, and an automatic thread cleaning device carries the severed insulation out of the blade area so the slot does not have to be cleared between terminations.

Within this group the WPM-012 is the only machine built for parallel and flat multi-core constructions, and it is the only one working below AWG 22. The WPM-19, WPM-190 and WPM-191 start at 0.1 mm2 or 1.2 mm and handle single conductor ends; the WPM-25-290 and WPM-5010 strip outer sheaths on round multi-core cable. The WPM-012 strips only and has no twisting function, so twisted tails are produced on a separate twisting unit.

Key Features

1. Multi-core capacity: the blade block spans the conductor row, so an entire parallel construction is stripped in a single stroke rather than core by core.

2. Wire range AWG 24 to AWG 34, the smallest gauge window in this group and the only one intended for flat parallel cable.

3. Strip length is set at the blade carrier and applied equally to every core in the row, which keeps the termination face square across the wire.

4. Pneumatic actuation: an air line and quick coupler on the housing indicate a pressure-driven closing stroke rather than a hand lever, so the blade closing force repeats from cycle to cycle.

5. No twisting function. The machine prepares the strip only; twisted ends are produced on the WPM-19 or WPM-190/191.

6. Blade form: a wide parallel blade block with a matching lower anvil, specified by the maker as a durable blade and replaced as a set rather than reground in place.

Technical Specifications

ParameterSpecification
ModelWPM-012
TypeMulti-core parallel wire stripping machine
Wire rangeAWG #24 to AWG #34
ApplicationCable tail stripping
BladeDurable blade (maker specification)
Scrap removalAutomatic thread cleaning device
Suitable wiresComputer multi-core wires, telephone wires, parallel wires, power wires
ActuationPneumatic (air line and coupler on housing)
TwistingNot included

Applications

— Computer and data cable assembly: flat multi-core and ribbon constructions, stripping jacket and conductor ends to a common length before IDC or connector termination.

— Telephone and telecom patch cord production: parallel drop wire, all conductors stripped in one stroke for modular plug assembly.

— Power cord and small appliance harness: two- and three-core parallel cable, tail stripping ahead of crimping or tinning.

— Consumer electronics cable processing: fine AWG 28 to AWG 34 leads, end stripping in volume runs where per-core hand work sets the line rate.

— Cable harness job shops: repeated changeover between parallel cable types on a single bench without re-tooling a vertical stripper.

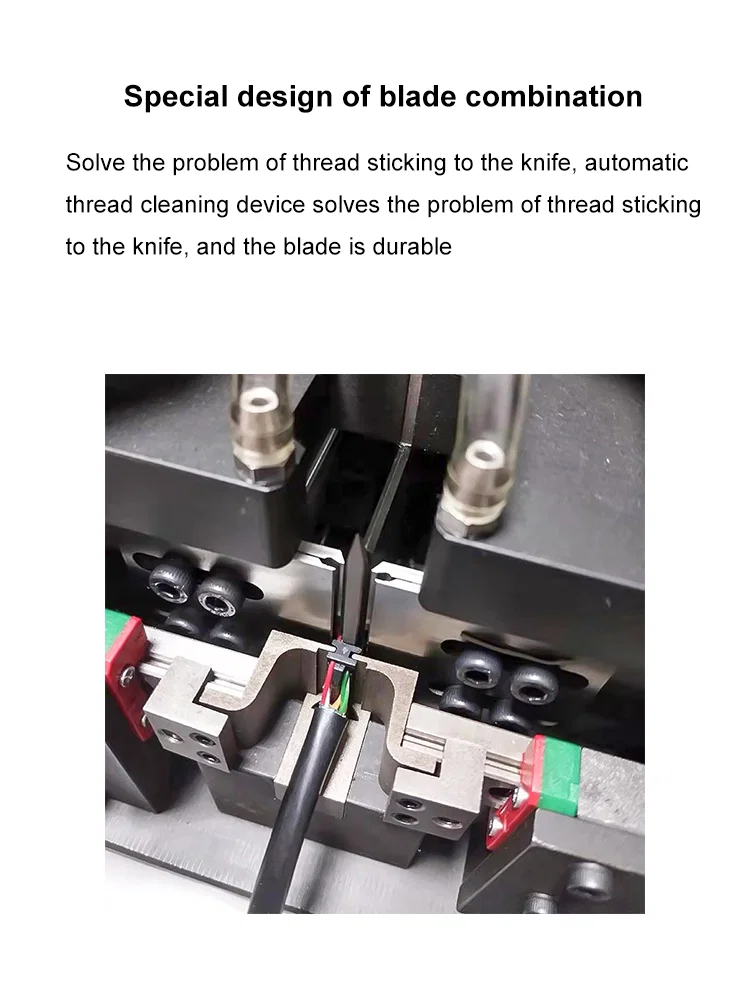

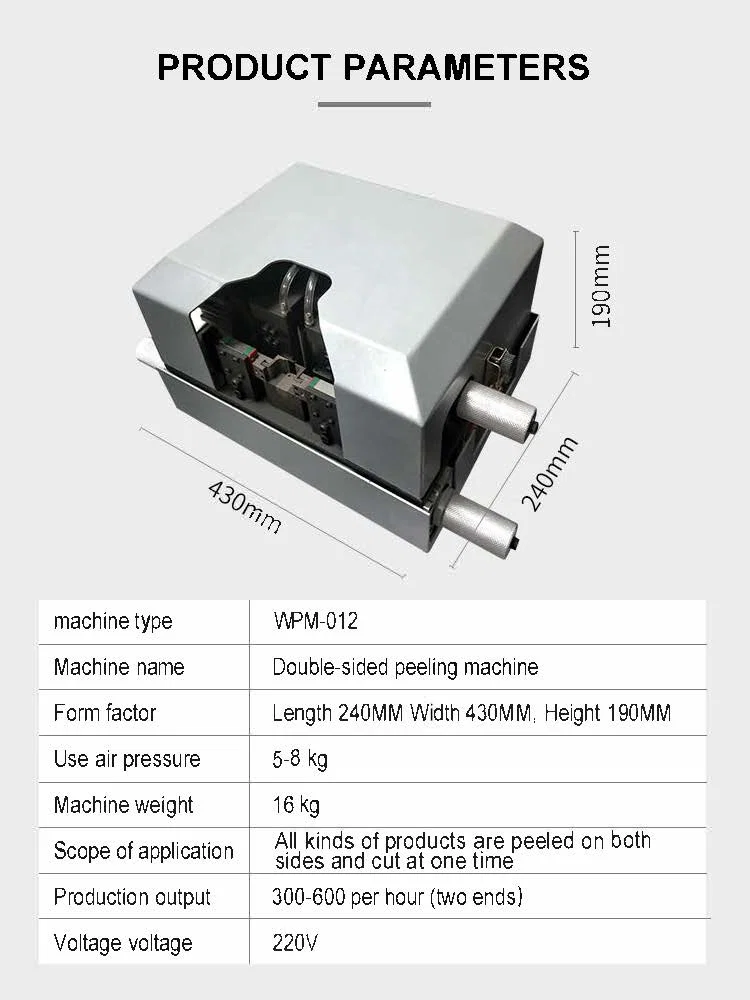

Multi-core double-sided peeling machine with stripped HDMI cable shown above itThread trimming and crimping cylinders with pneumatic tubing on the blade assemblyClose-up of blade combination cutting the jacket of a multi-core cableStripped HDMI and USB cable ends with exposed colored core wiresWPM-012 parameter table with 430x240x190mm dimensions and 16kg weightLeft side analysis view labeling air inlet, hood snap and two air cylindersFive numbered feature points describing double-sided peeling and blade designPeeling machine three-quarter view with open hood showing the blade assemblyFront view of peeling machine with pneumatic tubes, knurled rollers and blade block
