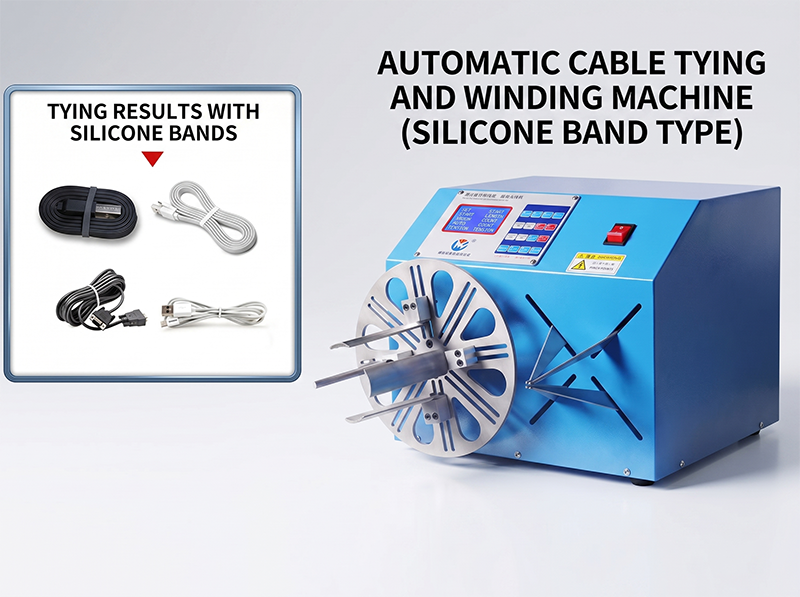

The WPM-K289 winds a cable into a coil or a figure-eight and closes a silicone band around it. Winding runs at 2 to 8 circles per second, adjustable, and the winding diameter is set between 50 and 200 mm, with both circle and figure-eight shapes available from the same winding head. The banding method is the distinguishing part: the machine is labelled as the silicone band type, and the tie is a silicone band rather than a plastic tie or a twist tie. It is built for USB, audio and earphone leads, the cables that are presented as a tidy coil in the box.
A hand-tied coil of earphone cable depends on the band being stretched to the right amount: too little and it slides off, too much and it cuts into the jacket. The K289 closes the band over a coil that the machine has formed to a set diameter, so the band sits in the same place on every coil and the coil is the same size in every box. The band is silicone, so it can be removed without leaving adhesive on the jacket and the coil can be opened without cutting anything.
The WPM-K287 is the semi-automatic member of this pair: foot-pedal operation, a text LCD, PLC control and a 20 kg frame, built around winding a lead to a paper card. The K289 is the automatic one, with 2-8 circles per second, 50-200 mm diameter, 100 W and both circle and figure-eight shapes. Against the tie-based models in the group, the WPM-85-40 closes a coreless plastic tie at 5-25 mm and the 212 series closes a twist tie from 5 mm upward; the K289 differs in the closure itself, a silicone band, and in the two selectable coil shapes.
Key Features
1. Winding diameter 50.0-200.0 mm, set on the panel.
2. Circle and figure-eight winding shapes selectable on the same head, covering looped and folded presentation.
3. Winding speed 2-8 circles per second, adjustable to the cable stiffness.
4. Silicone band closure, labelled as the silicone band type, with no plastic tie and no adhesive on the jacket.
5. Runs USB, audio and earphone cable, the light leads that are packed as a coil.
6. 100 W on AC 220 V, 50/60 Hz, in a bench-top cabinet with membrane controls.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-K289 |
|---|
| Power supply | AC 220 V, 50/60 Hz |
|---|
| Power rating | 100 W |
|---|
| Winding speed | 2-8 circles/s, adjustable |
|---|
| Winding diameter | 50.0-200.0 mm |
|---|
| Winding shape | Figure-eight, circle |
|---|
| Tying method | Silicone band (machine label) |
|---|
Applications
— Earphone and headset cable packing: the lead is wound in figure-eight and banded for retail boxes.
— USB cable production: leads coiled to 50-200 mm and banded at the end of the line.
— Audio cable assembly: audio and earphone leads wound and banded before bagging.
— Consumer electronics accessory packing: charging leads banded in silicone so the coil can be opened without cutting.
— Cable trading: loose leads re-wound and banded to a fixed diameter for resale lots.
