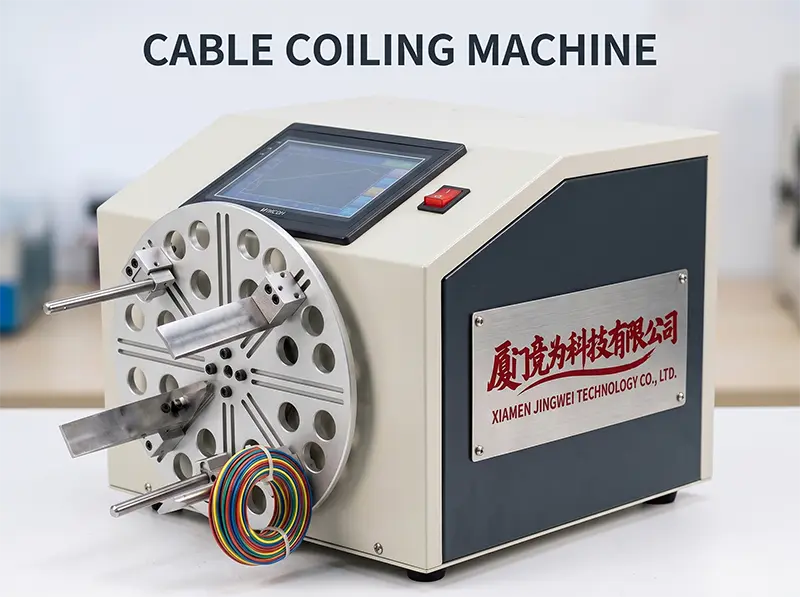

Automatic Cable Coiling Machine with Adjustable Speed WPM-2009L

📅 2026-05-15 👁️ 2,655
  • Model No: WPM-2009L

  • Specifications

    Model Number: WPM-2009L
    Voltage: AC220V/50Hz or AC110V/60Hz
    Winding Length Range: Adjustable
    Winding Numbers: Preset
    Dimensions: L485×W420×H340mm
    Winding Speed: Adjustable
    Winding Rod Spacing: 50-300mm
    Customization: Available
  • Inquiry now

The WPM-2009L winds cable and hose into coils at adjustable speed and adjustable winding length, holding a preset number of turns per coil. Winding rod spacing of 50 to 300 mm sets the coil width, so one machine covers narrow coils and wide, flat coils. The coil is released by foot pedal, which leaves both hands on the wire while the coil is formed.

Hand coiling ties up an operator for the whole coil and the result depends on wrist speed and reach. The 2009L drives the winding at a set speed and stops at the set turn count, and the manufacturer quotes a 75% reduction in labour cost against manual coiling. Coil width and length come from the machine settings rather than from how the operator holds the wire.

It is the larger of the two 2009 models: 485 x 420 x 340 mm with a touchscreen, foot-pedal release and 50-300 mm rod spacing, with custom coil sizes available, against the 400 x 280 x 400 mm keypad version. Neither model ties; for coil plus tie in a single cycle the next step is the 212 series, which adds a tie head to the winding head.

Key Features

1. Winding rod spacing 50-300 mm, setting coil width as well as coil diameter.

2. Winding speed and winding length adjustable, with the turn count preset.

3. Foot-pedal coil release, so both hands stay on the cable during winding.

4. Touchscreen parameter entry; custom coil sizes available on request.

5. Coiling only - no tie head; pairs with a separate tier or hand tying.

6. AC 220 V 50 Hz or AC 110 V 60 Hz; 485 x 420 x 340 mm bench frame.

Technical Specifications

ParameterSpecification
ModelWPM-2009L
FunctionCoiling only (no tying)
Winding rod spacing50-300 mm
Winding length rangeAdjustable
Winding numbersPreset
Winding speedAdjustable
VoltageAC 220 V 50 Hz or AC 110 V 60 Hz
Dimensions485 x 420 x 340 mm
CustomizationAvailable

Applications

— Cable and hose coiling: winding flexible cable and hose to a set width and diameter.

— Power cord production: coiling cordsets before banding, bagging or boxing.

— OEM custom coils: non-standard coil sizes produced from stored settings.

— Cable distribution: re-coiling bulk lengths into saleable coils of fixed width.

— Appliance and equipment builders: coiling supplied leads for kitting and shipment.

three stepper motors labeled 8, 12 and 18 with matching driversfour views of coiling machine showing spool and side panelfront and right side views of coiling machine with black spoolfront and rear views of coiling machine with black wire spoolmachine views plus foot pedal, tools and accessories laid outpacked wire spools and coiled power cords on pallets
