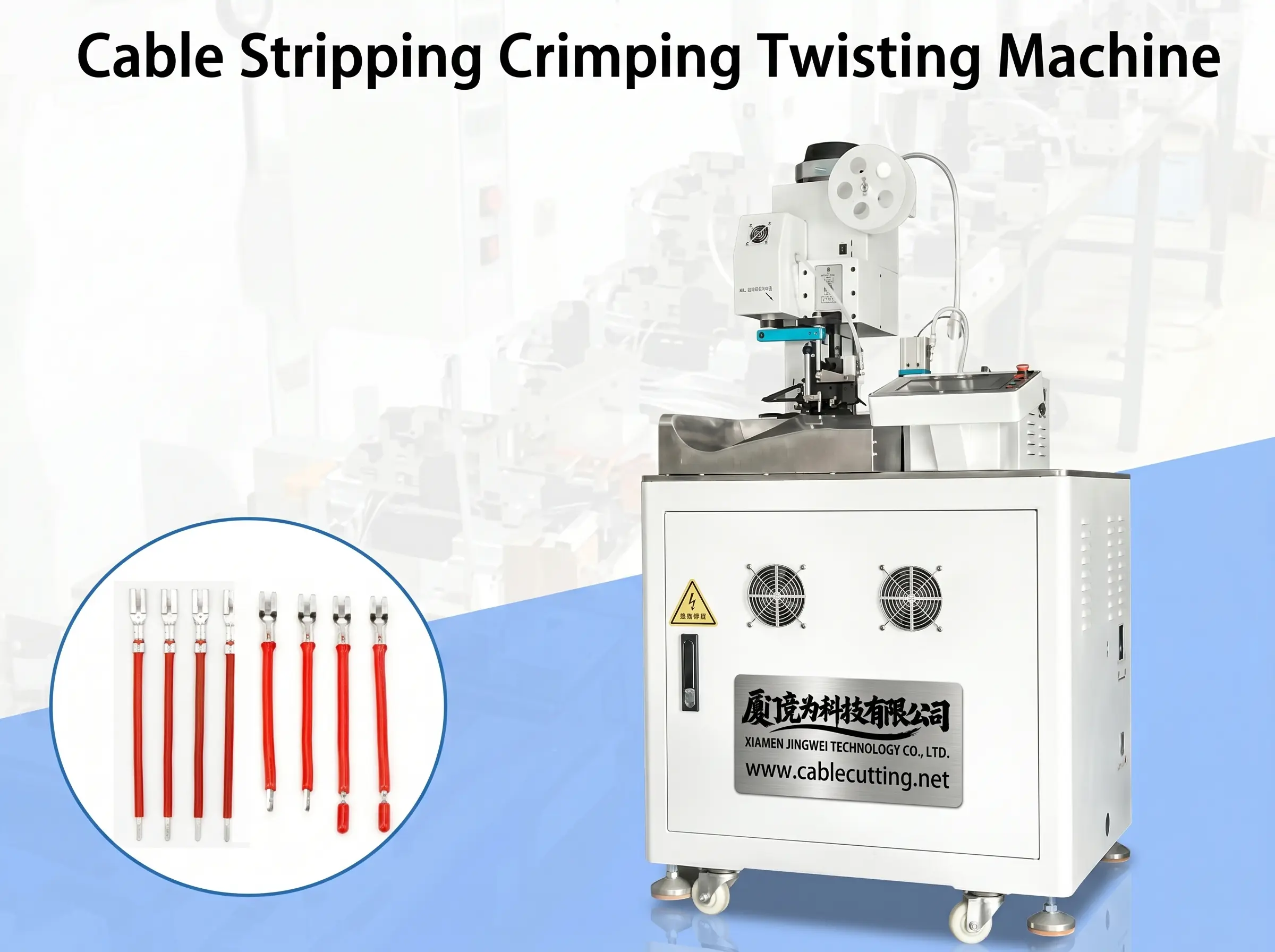

JW-CM03 runs cutting, stripping, terminal crimping and core twisting in one continuous cycle. Wire is pulled from the dereeler by motorised feed rollers, cut to length, stripped at the programmed position, then crimped at the single head while the twisting station closes the opposite end.
Because the four steps run in one pass, the lead no longer travels between a stripping machine, a crimping press and a hand twisting station. One operator loads the reel and unloads finished leads, and the die set is changed in under three minutes when the terminal family changes.
The machine covers four processes with one crimping head, so one terminal is applied per cycle on AWG14 to AWG28 wire. Where tinned ends or 4000-5000 pcs/h are required, the WPM-151T adds a solder pot; where both ends carry terminals, the double-side JW-CM04 is the closer match. An optional conveyor carries long leads clear of the machine.
Key Features
1. Cutting, stripping, crimping and twisting completed in a single cycle, with no re-clamping between stations.
2. Reel-type terminal feed accepts both insulated and non-insulated terminals, so loose terminals are not loaded by hand.
3. Die changeover in under three minutes keeps downtime short on mixed harness batches.
4. Wire range AWG14 to AWG28, customizable on request.
5. Single crimping head applies one terminal per cycle; the free end is finished by the twisting station.
6. Optional conveyor for long leads; the cabinet runs on castors and can be moved between lines.
Technical Specifications
| Parameter | Specification |
|---|
| Model | JW-CM03 |
|---|
| Wire Range | AWG14 - AWG28 (customizable) |
|---|
| Terminal Type | Reel-type terminals, insulated and non-insulated |
|---|
| Processes | Cutting, stripping, crimping, twisting |
|---|
| Crimping Heads | Single head |
|---|
| Die Changeover | Under 3 minutes |
|---|
| Operation | Fully automatic |
|---|
| Optional | Conveyor for long wires |
|---|
Applications
— Control cabinet wiring: AWG16-AWG20 PVC leads with insulated spade terminals, opposite end twisted for screw clamping.
— Appliance harnesses: AWG18-AWG22 leads with reel-fed ring and fork terminals.
— Lighting and sensor leads: short cut lengths with a twisted bare end for soldering or terminal posts.
— Automotive and motorcycle sub-harnesses: mixed batches where the die is changed several times per shift.
— Switch and relay panel leads using insulated spade terminals from reel stock.
