Fully Automatic Multi-Wire Plug Shell Inserting Machine WPM-DPW12

Name: Fully Automatic Multi-Wire Plug Shell Inserting Machine W...
Brand: JINGWEI
SKU: WPM-DPW12
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-DPW12
Specifications
Model Number: WPM-DPW12
Wire Processing Functions: Cutting, Stripping, Distributing, Splitting, End-Making, Dipping, Tinning, Twisting, Terminal Crimping, Plug Insertion
Applicable Wires: 12-color single election wire
Shell Compatibility: 2P-12P plastic/rubber shells (no vibration plate change)
Operation Interface: Microcomputer touch screen
Wire Feeding: High-precision device, smooth transmission
Positioning Accuracy: 0.01mm (ball screw)
Additional Features: Neat discharge, no material jams, conveyor belt system
Inquiry now

automatic multiple wires penetrate plastic plugs shell, wire stripping position terminal crimping tinning machine, View Plastic shell inserting machine

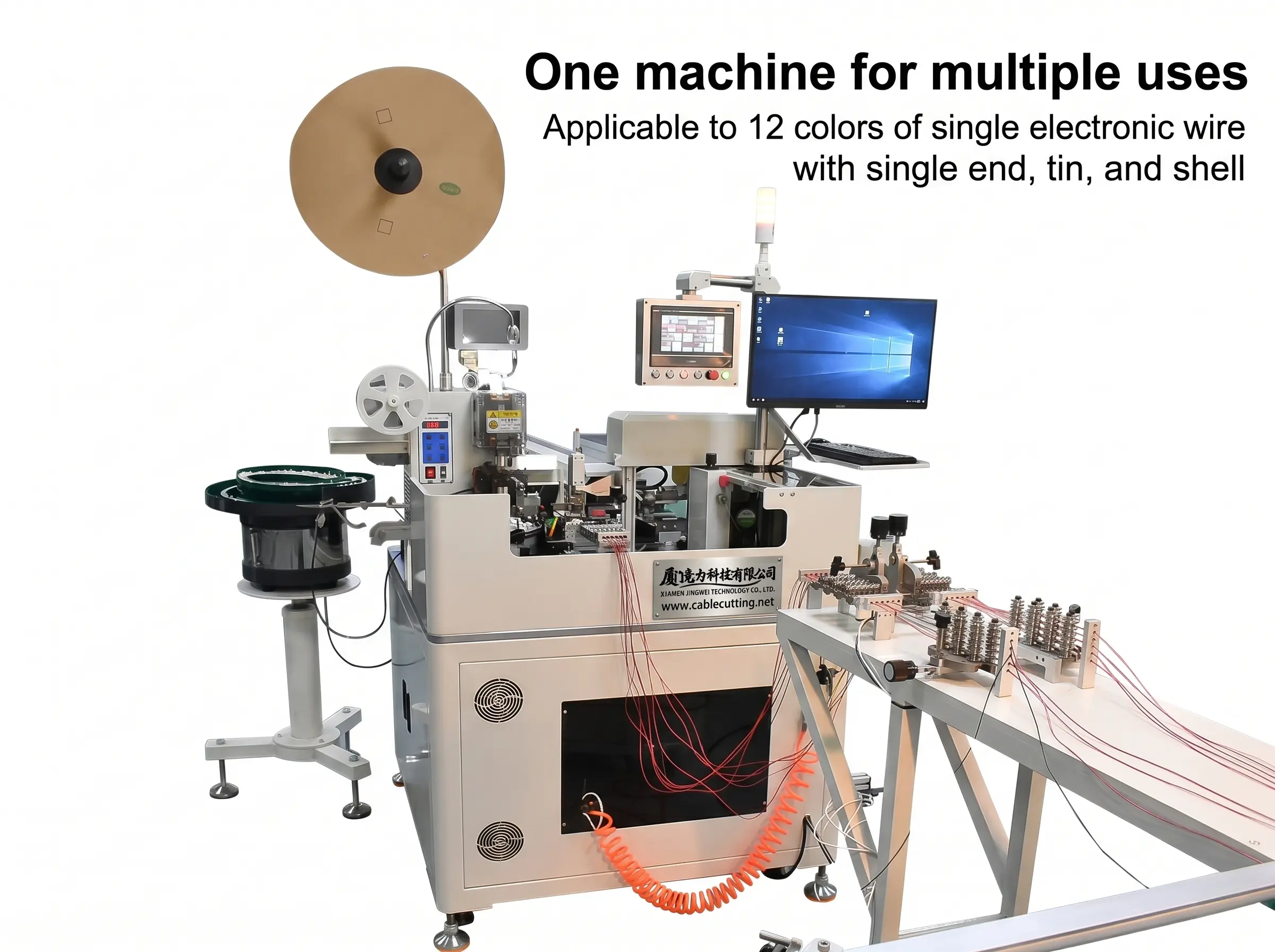

This Fully automatic multi-Position inserting machine, with wire cutting, stripping, distributing, splitting, automatic end-making, dipping, tinning, twisting, terminal, penetrating ect in a one-time function.
Applicable to 12 colors of single election wire with a single end, tin, and shelled.
No need to change the vibration plate for the same type of rubber shell 2P-12P
Microcomputer touch screen operation, simple operation and convenient debugging, adopt high-precision wire feeding device, smooth wire transmission, no knots, the discharge is neat, no material jam, and labor-saving
High precision ball screw and tangent accuracy can reach 0.01mm. The electrical box wiring is neat and clean, clear at a glance. Conveyor belt products are convenient and orderly.

multiple wires penetrate plastic plugs shell, wire stripping position terminal crimping tinning machine, View Plastic shell inserting machine

automatic multiple wires penetrate plastic plugs shell, wire stripping position terminal crimping tinning machine

What are the main functions of the Fully Automatic Multi-Wire Plug Shell Inserting Machine WPM-DPW12?

The WPM-DPW12 is a fully integrated wire processing solution that performs cutting, stripping, tinning, terminal crimping, and plug shell insertion in a single automated cycle. It is designed for efficient cable harness manufacturing, eliminating the need for multiple machines or manual steps.

What types of connectors or shells can this machine handle?

This machine is versatile and specifically designed to handle 2P to 12P (2-pin to 12-pin) plastic plug shells without requiring a change of the vibration plate or feeder. This flexibility makes it ideal for production runs involving connectors with different pin counts.

How does the WPM-DPW12 improve efficiency in cable harness production?

By combining cutting, stripping, tinning, crimping, and insertion into one fully automatic cycle, the WPM-DPW12 dramatically increases throughput, reduces labor costs, and minimizes human error. It ensures consistent, high-quality terminations and insertions, leading to faster production times and improved reliability in your harness assembly line.

Is this machine suitable for high-volume manufacturing?

Yes, the Fully Automatic Multi-Wire Plug Shell Inserting Machine is engineered for high-volume cable harness manufacturing. Its fully automatic operation, multi-position wire insertion capability, and quick changeover between different shell types (2P-12P) make it a highly productive and scalable solution for demanding production environments.

What are the key benefits of using an automatic machine over manual assembly for plug insertion?

Automating the process with the WPM-DPW12 provides numerous benefits: superior consistency and quality in every termination, significant increases in production speed, reduced operational costs by minimizing manual labor, and enhanced worker safety by automating repetitive tasks. It also ensures precise alignment and insertion into plastic shells, reducing waste and rework.
