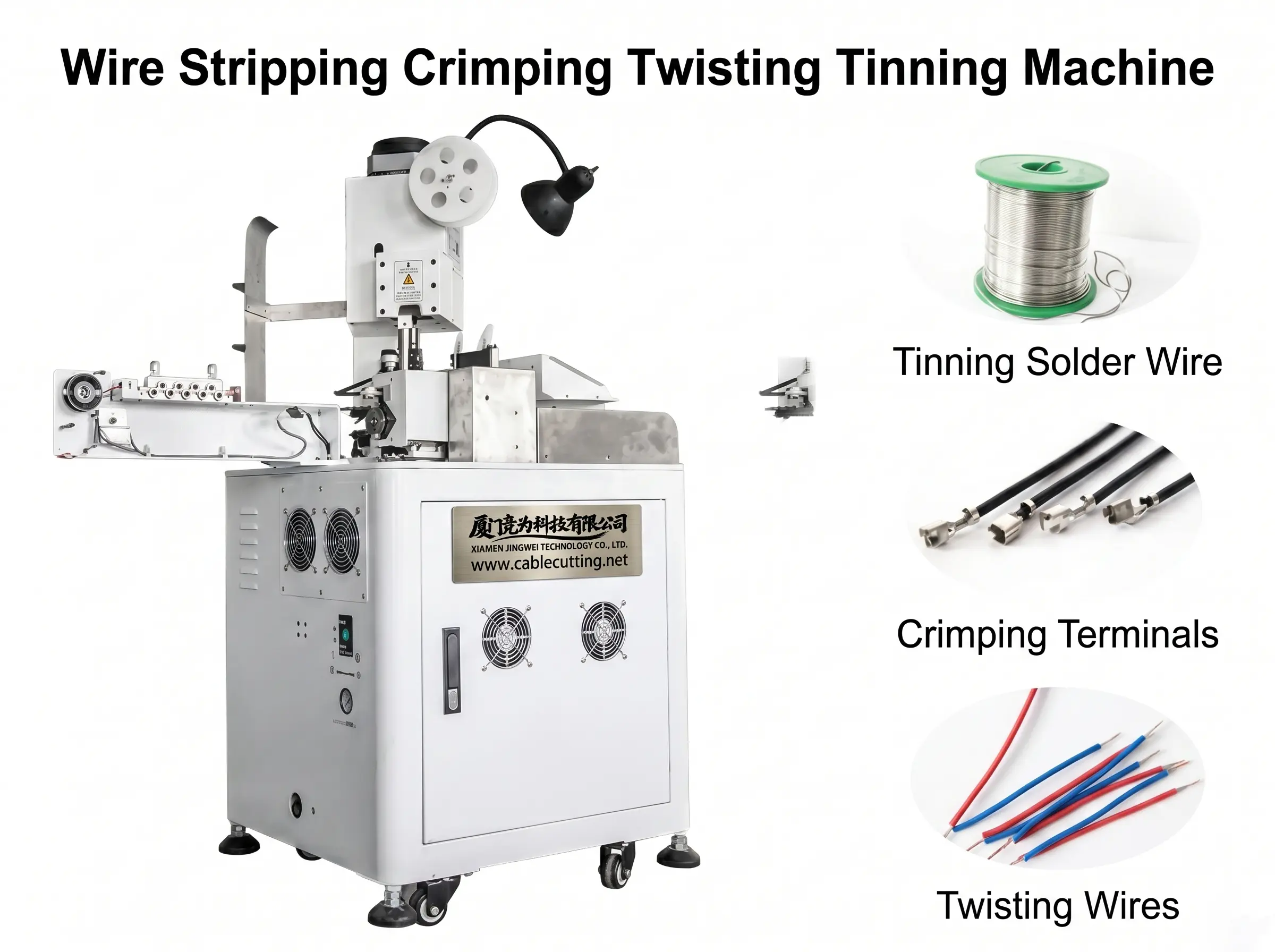

WPM-151T combines cutting, stripping, twisting, solder tinning and terminal crimping in one cycle. The wire is cut and stripped, one end is twisted and dipped at the tinning station, and the opposite end is crimped with a reel terminal by a 2.0T press, so both ends are finished before the lead is discharged.
The machine removes the transfer between a stripping line, a hand twisting station and a separate tinning pot. A single reel load produces a lead with a crimped terminal on one end and a tinned, twisted strand on the other, with the solder wire spool carried on the machine frame.
Against the JW-CM03, the WPM-151T adds solder tinning and raises output to 4000-5000 pcs/h at a 150mm cut length, with a wire range of AWG28 to AWG14 and cut lengths up to 9999mm. It remains a one-side crimp design; where both ends need terminals, the JW-CM04 or WPM-038F applies two or three terminals per cycle instead.
Key Features
1. Five functions in one cycle: cutting, stripping, twisting, solder tinning and one-side crimping.
2. Solder wire spool mounted on the frame feeds the tinning station, so no separate pot and wire supply are needed.
3. Capacity of 4000-5000 pcs/h at a 150mm cut length.
4. Cutting accuracy of 0.5mm plus 0.2% of cut length; stripping length adjustable from 0.5 to 8mm.
5. 2.0T crimping press handles reel terminals across the AWG28-AWG14 range.
6. PLC control with touch screen and servo motor drive for length setting and repeatability.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-151T |
|---|
| Power | AC220V / 50-60Hz |
|---|
| Capacity | 4000-5000 pcs/h (L=150mm) |
|---|
| Wire Range | AWG28 - AWG14 (customizable) |
|---|
| Cutting Length | 45-9999mm (customizable) |
|---|
| Cutting Accuracy | 0.5mm + cutting length x 0.2% |
|---|
| Stripping Length | 0.5-8mm (customizable) |
|---|
| Crimping Force | 2.0T |
|---|
| Functions | Cut, strip, twist, tin, one-side crimp |
|---|
| Control | PLC with touch screen, servo motor |
|---|
Applications
— Appliance and power supply harnesses: AWG18-AWG22 leads with a crimped insulated terminal on one end and a tinned strand on the other.
— Audio, lighting and transformer leads requiring a solderable tinned end for PCB or terminal post connection.
— Control panels: red and blue equipment wire with ring terminals one end, tinned other end.
— Motor lead sets: tinned ends for connection blocks, crimped terminals at the opposite end.
— Sensor and coil leads where tinning is currently done as a separate bench operation.
