Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine JW-RSCT

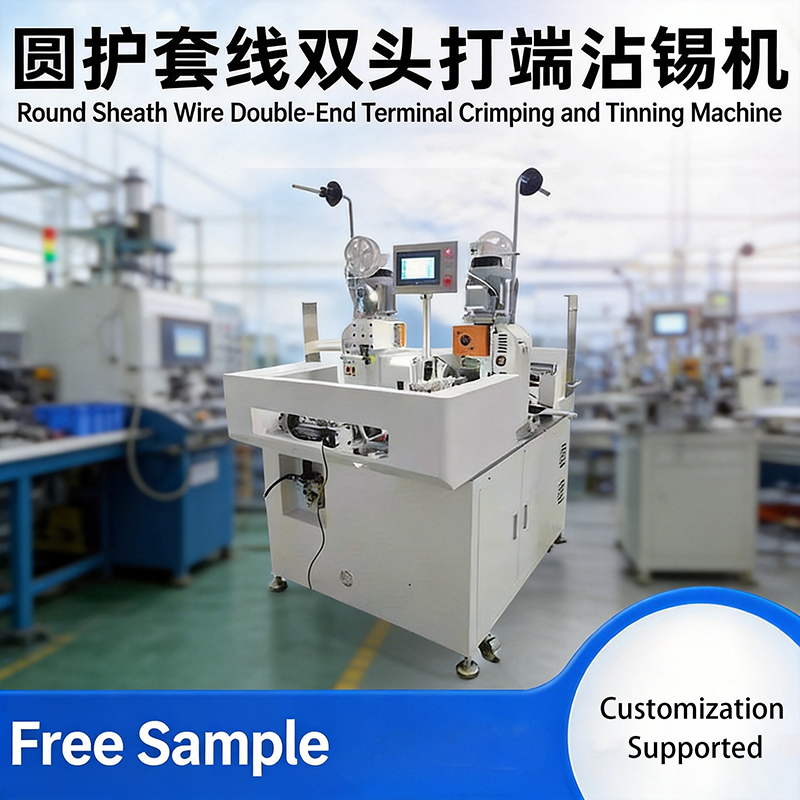

This fully automatic round sheathed cable double-end terminal crimping and tinning machine is professionally designed for multi-core round sheathed cables, integrating automatic wire cutting, outer sheath stripping, inner core stripping, terminal crimping and double-end tinning in one machine. It is widely used in wire harness processing for electronics, electrical appliances, new energy and lighting industries, delivering stable performance, high precision and high efficiency for mass production.

Product Parameters

Parameter	Specification
Product Name	JW-RSCT Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine
Outer Diameter	1.5–8.5 mm
Inner Cores	2–12 cores
Inner Wire Gauge	16–28 AWG
Cutting Length	60–1000 mm (customizable extension available)
Cutting Precision	≤0.5 mm + 0.2% of cutting length
Power Supply	AC 220 V 50/60 Hz, 20 A
Outer Stripping Length	15–100 mm
Inner Stripping Length	0–15 mm
Crimping Force	Standard 2 TON (ultra-quiet 2.0T terminal crimping machine)
Functions	Fully automatic cutting, outer stripping, inner core stripping, terminal crimping, double-end tinning for multi-core cables

Product Features

1. High Compatibility: Suitable for round sheathed cables with outer diameter 1.5–8.5 mm, 2–12 cores, 16–28 AWG inner wires.

2. High Precision & Stability: Cutting error controlled within 0.5 mm + 0.2%, consistent crimping and tinning quality.

3. All-in-One Processing: Automatically completes cutting, stripping, crimping and tinning, reducing manual operation and improving efficiency.

4. User-Friendly Operation: Equipped with HD LCD display for intuitive parameter setting and easy adjustment.

5. Smooth Feeding: High-precision wire straightener ensures stable and smooth wire conveying.

6. Customizable: Support customized length, function and structure to meet diversified production demands.

7. Reliable Quality: Made of premium materials with advanced equipment and strict quality control system.

8. Factory Direct Supply: With years of manufacturing experience, fast quotation, short delivery time and on-time delivery rate up to 99%.

Our Advantages

1. One-stop service from sample making to mass production, reducing R&D cost and accelerating product launch.

2. Professional after-sales team provides one-to-one exclusive service with worry-free after-sales support.

3. Stable performance, durable structure and easy operation, suitable for long-term heavy-duty production.

What types of cables can the JW-RSCT Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine process?

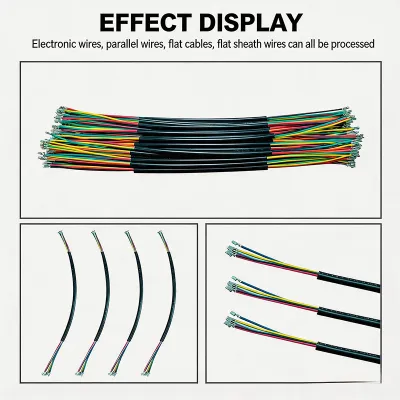

The JW-RSCT is designed for multi-core round sheathed cables with an outer diameter of 1.5–8.5 mm, supporting 2–12 inner cores and wire gauges from 16 to 28 AWG. It is ideal for wire harness processing in electronics, electrical appliances, new energy, and lighting industries.

What are the key functions of the JW-RSCT machine, and how does it improve production efficiency?

This all-in-one machine fully automates cutting, outer sheath stripping, inner core stripping, terminal crimping, and double-end tinning for multi-core cables. By integrating these processes, it significantly reduces manual labor, minimizes errors, and boosts throughput, making it highly efficient for mass production.

How precise is the cutting and processing on the JW-RSCT, and why is this important?

The JW-RSCT achieves a cutting precision of ≤0.5 mm plus 0.2% of the cutting length, ensuring consistent and accurate wire lengths. This high precision is critical for maintaining quality in crimped and tinned connections, reducing waste, and meeting strict industry standards in applications like new energy and electronics.

Can the JW-RSCT be customized for specific production requirements?

Yes, the JW-RSCT supports customization, including extended cutting lengths (beyond the standard 60–1000 mm), as well as tailored functions and structural modifications to meet diverse production needs. Factory direct supply allows for fast quotations and short lead times, with a 99% on-time delivery rate.

What makes the JW-RSCT a reliable choice for industrial wire processing?

The JW-RSCT features ultra-quiet 2.0T terminal crimping with a force of 2 tons, a high-precision wire straightener for smooth feeding, and an HD LCD display for intuitive operation. Built with premium materials and strict quality control, it offers stable performance, long-term reliability, and one-stop support from sample making to mass production.
