Automatic 3-Axis AB Glue Dispensing Machine with Dispenser Control JW-GL03
Automatic 3-Axis AB Glue Dispensing Machine with Dispenser Control JW-GL03 Thumb Automatic 3-Axis AB Glue Dispensing Machine with Dispenser Control JW-GL03 Thumb
Video Thumbnail

Automatic 3-Axis AB Glue Dispensing Machine with Dispenser Control JW-GL03

📅 2026-03-19 👁️ 858
  • Model No: JW-GL03

  • Specifications

    Control System: 3-Axis Dispenser Control System
    Programming Capability: High-precision programming of dots, strips, arcs, patterns
    Surface Compatibility: Different planes and curved surfaces
    File Support: PLT files, TCF files, G-code files, computer graphics
    Adhesive Compatibility: AB Glue, Epoxy Resin, Silicones, UV Glue, Cyanoacrylates, Sealants, Conductive Adhesive
    Applications: Electronic components, PCB boards, sensors, relays, automotive parts, household appliances, battery packaging
  • Inquiry now

JW-GL03 is a three-axis AB glue dispensing machine built around a dedicated dispenser control system. It programs dots, strips, arcs and closed patterns on flat and curved surfaces, and accepts PLT, TCF and G-code files as well as computer graphics, so a drawing can be used as the path source.

Manual two-part dispensing ties the result to the operator: bead width follows hand speed, and the mixed adhesive starts curing before the pattern is finished. GL03 runs the path from the control system and meters AB glue, epoxy, silicone, UV glue, cyanoacrylate, sealant and conductive adhesive through the head, so the bead follows the same coordinates on every part. The interlock guard over the valve keeps hands out of the dispense zone while the axes are in motion.

GL03 differs from GL01 and GL02 in control rather than in axes. GL01 is a bench robot fed from a syringe with a pressure regulator and no dedicated controller; GL02 is the floor-standing two-component machine with 10:1 metering and twin tanks; GL03 is the bench machine with a three-axis dispenser control system, computer-graphics input and two fixture platforms on the base.

Key Features

1. Three-axis dispenser control system programs dots, strips, arcs and patterns, so the path is stored on the controller rather than taught part by part.

2. File support for PLT, TCF, G-code and computer graphics, allowing a CAD drawing to be used as the dispensing path.

3. Three-axis motion over planes and curved surfaces, following contours that a fixed-height dispenser cannot reach.

4. Seven adhesive families on one head: AB glue, epoxy resin, silicone, UV glue, cyanoacrylate, sealant and conductive adhesive.

5. Two fixture platforms on the base, giving two part-nest positions inside the working envelope.

6. Interlock guard over the dispensing valve, with the emergency stop on the base, keeping the dispense zone closed while the axes move.

Technical Specifications

ParameterSpecification
ModelJW-GL03
Machine type3-axis AB glue dispensing machine, bench frame
Control system3-axis dispenser control system
ProgrammingDots, strips, arcs and patterns, high-precision path programming
File supportPLT, TCF, G-code, computer graphics
Surface compatibilityPlanes and curved surfaces
AdhesivesAB glue, epoxy resin, silicone, UV glue, cyanoacrylate, sealant, conductive adhesive
Work holdingTwo fixture platforms on the base
ApplicationsElectronic components, PCB, sensors, relays, automotive parts, appliances, battery packaging

Applications

— PCB board bonding - AB glue or epoxy dots and strips on board-mounted components and stiffener edges.

— Sensor and relay assembly - conductive adhesive or sealant patterns on housings, dispensed from a stored contour path.

— Automotive electronics - bonding of connectors and housings on curved surfaces where a fixed-height head cannot follow.

— Battery pack packaging - structural epoxy strips between cell holders and module frames.

— Household appliance controls - sealant and UV glue patterns on display windows and switch housings.

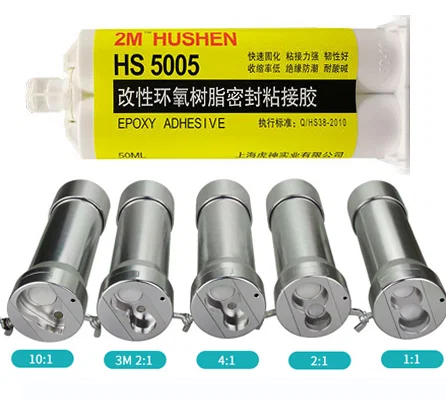

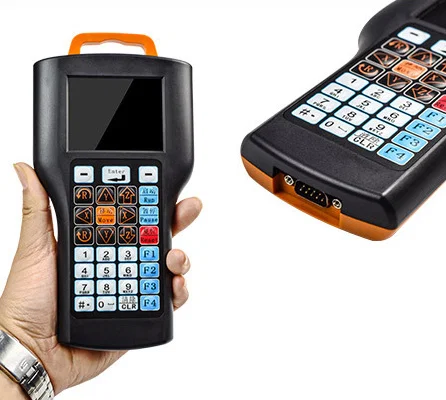

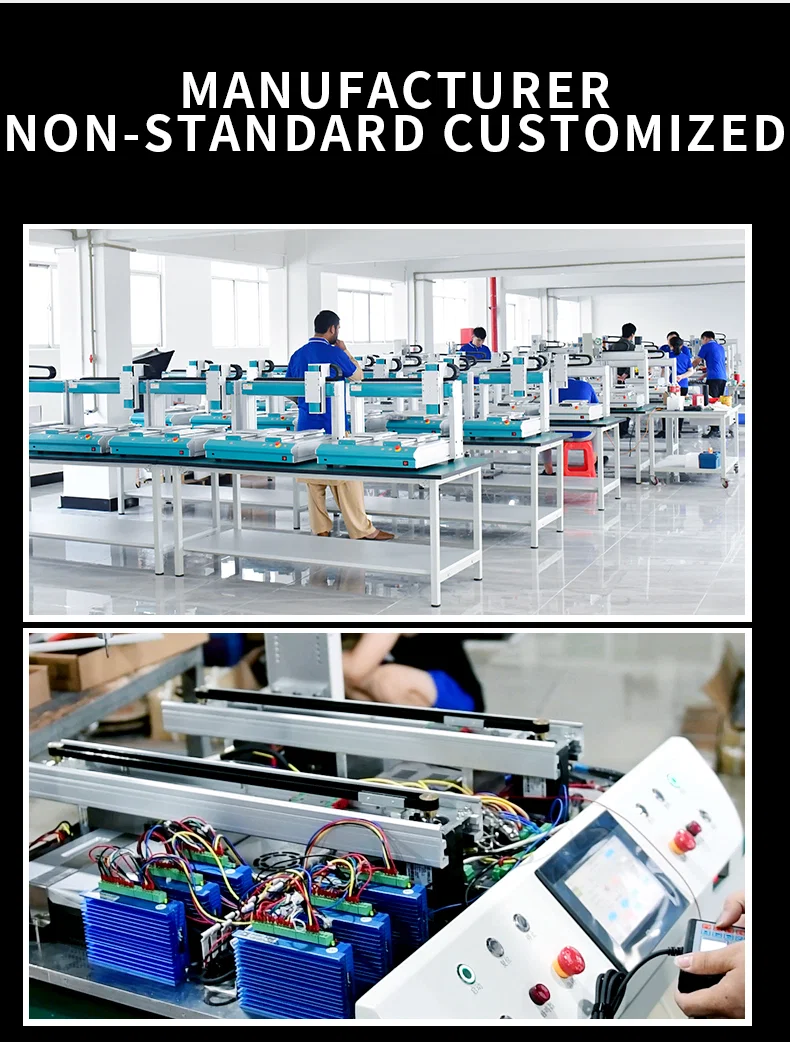

Three-axis AB glue dispensing machine with teach pendant, front viewAB glue dispensing machine with two work platforms and mixing valveSide view of automatic glue dispensing robot with pneumatic control boxHandheld teach pendant keypad close-ups for glue dispensing programming2M HS500 epoxy adhesive cartridge with 10:1, 2:1, 4:1 and 1:1 mixing tubesGrid of dispensing valves: single liquid, double acting, hot melt and sprayApplication collage of glue dispensing on phone housings, LED boards and PCBsFactory line of glue dispensing machines being assembled and wired
Auto 3-Axis AB Glue Dispensing System
