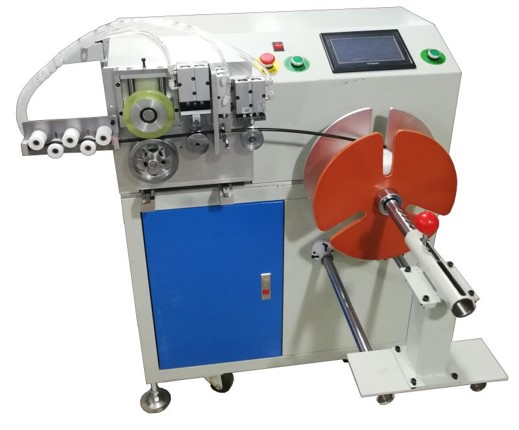

Detailed description

Main electrical component
1.Winding mechanism Adopt: 750W servo motor drive and planetary reducer set.
2.Control system: PLC+touch screen.
3.Sliding guide rail: NSK from Japan.
4.Homemade rack and chassis.
5.2 sets of relays and one set of OMRON sensor.
6.One set of power supply system
7.One set of wire cutting mechanism (pneumatic cutting)
8.Meter counting mechanism adopts the principle of pulling rotary encoder.

Processing fixture part
1. Important mounting plate adopts CNC computer gong numerical control machining center.
2. processing parts in strict accordance with the engineering design, milling machine, grinder, lathe, wire cutting, heat treatment. Clamping and electrical installation and commissioning.
3.Wire fixture (shaft): Sai steel material size according to the customer to provide, the machine is only equipped with a spool of wire winding

Winding inner diameter range: 50-300mm
Winding meters or turns: adjustable
Input voltage: AC220V 50HZ/60HZ Special voltage can be customized.
Rated power (800W) 15kg load (can be customized)
 Row stroke: standard 120MM optional 200MM stroke)"
Volume: L800×W1000×H1030
Standard disk diameter 320MM
Can also be optional with the following 4 kinds of disk:
220280320350mm (350 to be customized)

Description of winding spool size
Shaft diameter: 50-300 (winding finished product can not exceed the winding disk)
Spool length: wire diameter * number of rows + 1mm allowance".
Winding speed: 1-8 turns/second
Tying speed: 0.6sec/time
Weight: 180KG
