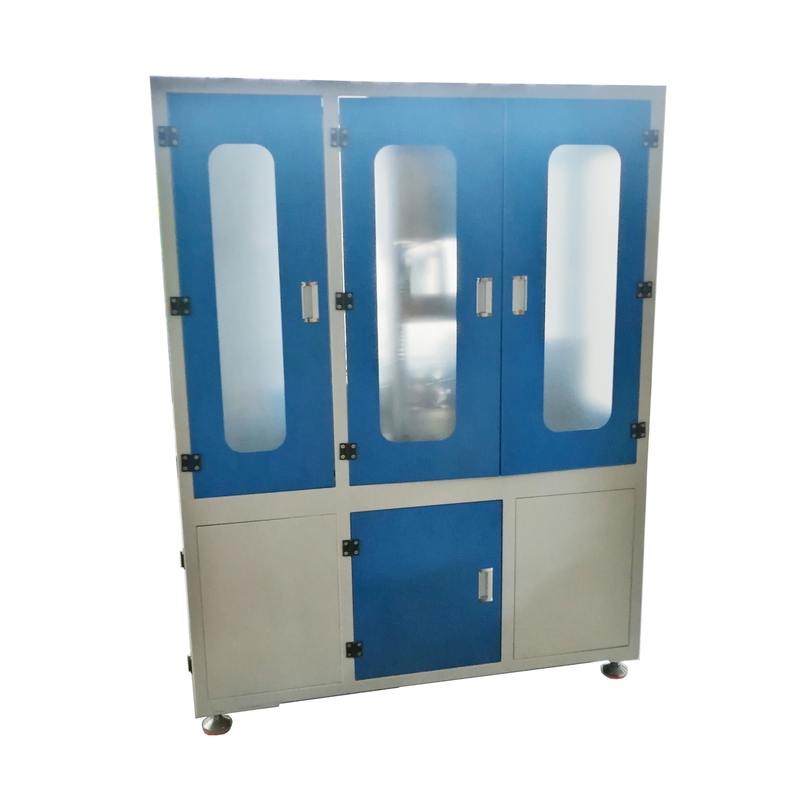

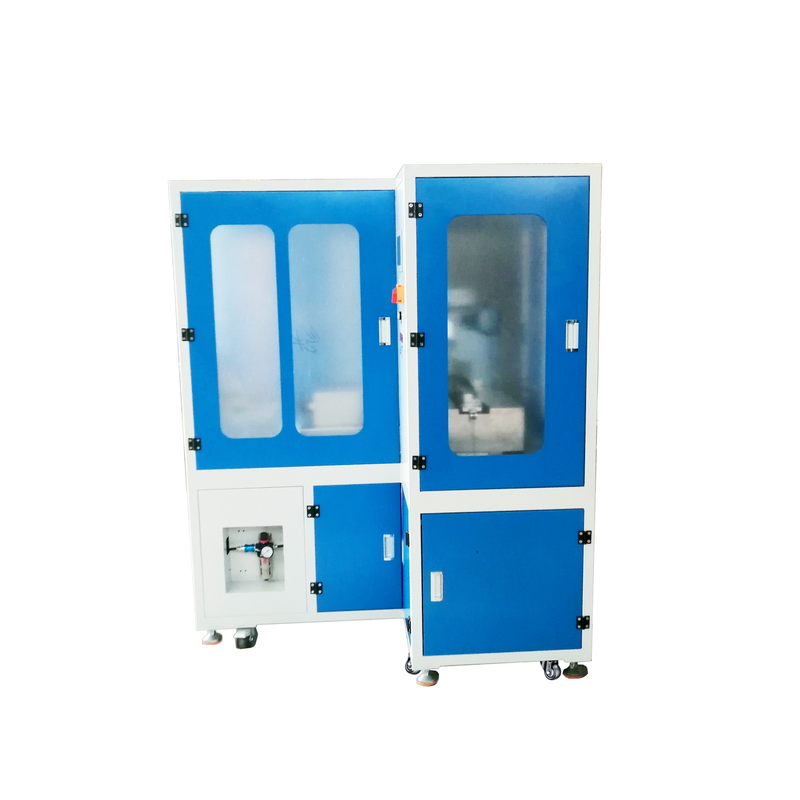

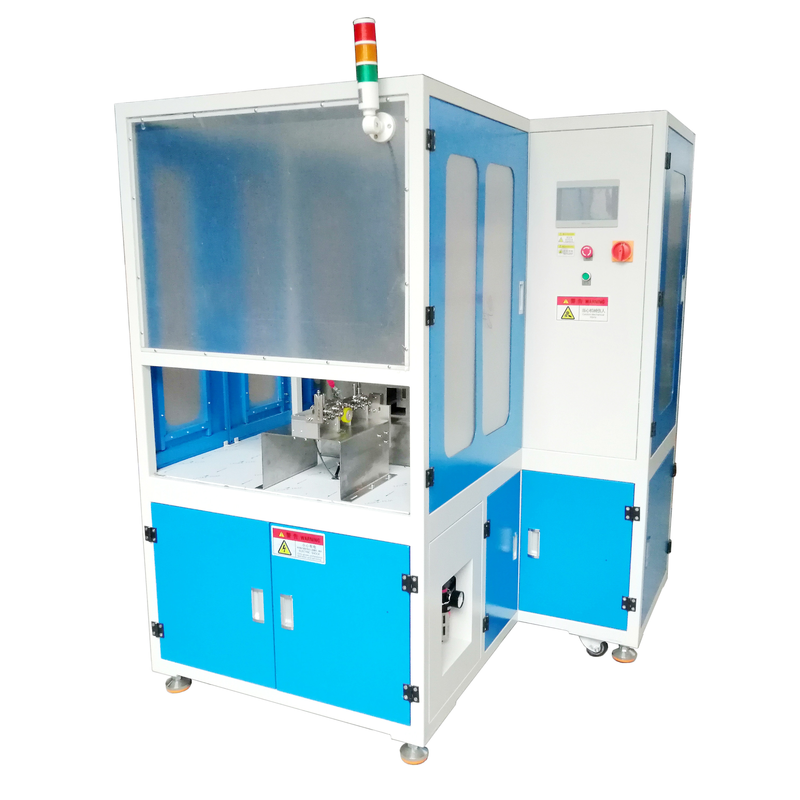

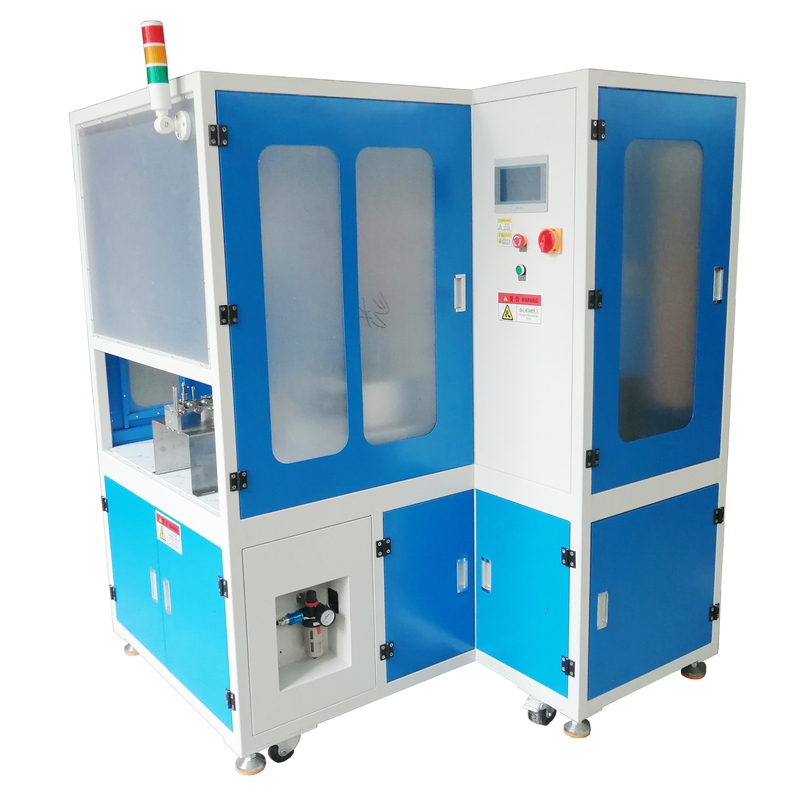

Ultra-Small Circle 3-Tie Automatic Wire Cutting, Winding and Tying Machine CRT-03SL-A

Technical Parameters

•        Coil Specifications: Inner diameter 50mm (non-adjustable), outer diameter 75-100mm, height 50mm (non-adjustable)

•        Production Related: 3 ties per coil, winding speed 1-10 circles/second (configurable), production efficiency 36 PCS/H (955 circles/PCS)

•        Applicable Conditions: Rubber-coated iron core cable ties (≤5KG/roll), air pressure 0.5-0.6MPa, voltage 220V/50Hz

•        Machine Specifications: Power 5.0KW/H, dimensions 1580L × 1420W × 1870H mm, weight approx. 650KG

•        Packaging Dimensions: Export wooden case 1670 × 1520 × 2050mm

Main Accessories (with Brand/Specification)

•        Cylinder and Solenoid Valve: Airtac brand

•        Servo Motors (YAKO): 1.8KW main winding servo motor (equipped with 1/3 reducer), 1KW vertical wire arrangement servo motor, 1KW horizontal wire arrangement servo motor, 400W vertical wire taking servo motor, 400W vertical upper/lower clamp servo motor, 1KW wire feeding servo motor, 400W cable tie feeding servo motor

•        Stepper/Constant Speed Motor: 57-type wire twisting stepper motor (Leadshine), 6W constant speed cable tie storage motor (Zuoxin)

•        Control Components: PLC (Fatek), 7-inch Wecon touch screen (Chinese-English bilingual), Mean Well power supply, Omron encoder (2000 pulses)

•        Other Components: Iron frame with blue-white baking paint, three-color light with buzzer for large roll material shortage alarm, three-color light with buzzer for cable tie shortage alarm
