Automatic Coil Winding & Tape Wrapping Machine WPM-301

📅 2026-05-14 👁️ 375
  • Model No: WPM-301

  • Specifications

    Model Number: WPM-301
    Tape width: 2-50mm
    Wire diameter: 0.1-50mm
    Winding length: 0-600mm/second
    Net Weight: 35kg
    Size: 300*350*425mm
    Motor power: AC220V 50/60Hz 300W
  • Inquiry now

The WPM-301 is a bench-top unit that combines coil winding with tape wrapping for wire harness assembly. It accepts tape from 2 mm to 50 mm wide and handles wire from 0.1 mm to 50 mm in diameter, so one head covers single leads as well as small cable bundles.

Compared with hand taping, the motorised head feeds at a set winding length of up to 600 mm per second and holds the same pitch from the first wrap to the last. Three stored patterns - branch winding, dense winding and 1/2 overlapping winding - reproduce the same joint on every unit, instead of leaving overlap and tension to the operator's feel.

Inside this group the WPM-301 is the model that also winds coils, and it has the widest tape range at 2-50 mm. The WPM-303 (84) and WPM-302 (159) wrap only, and the WPM-303 adds a touch screen with unlimited wrapping length while the WPM-302 is a pure electric taper at 800 mm per second.

Key Features

1. Coil winding and tape wrapping combined in one automatic cycle

2. Tape width 2-50 mm accepted on the same wrap head

3. Wire diameter 0.1-50 mm, from single leads to bundled cable

4. Winding length up to 600 mm per second with motorised feed

5. Three wrap patterns: branch winding, dense winding, 1/2 overlapping winding

6. 300 W motor on AC 220 V 50/60 Hz; 35 kg bench-top frame

Technical Specifications

ParameterSpecification
ModelWPM-301
FunctionCoil winding and tape wrapping
Tape width2-50 mm
Wire diameter0.1-50 mm
Winding length0-600 mm/second
Wrap patternsBranch, dense, 1/2 overlapping
Net weight35 kg
Dimensions300 x 350 x 425 mm
Motor powerAC 220 V 50/60 Hz, 300 W

Applications

— Automotive wire harness - taping branch joints and splices on multi-core engine and cabin looms

— Home appliance wiring - wrapping lead bundles for refrigerators, washing machines and air conditioners

— Control panel assembly - taping formed harness bundles before routing into enclosures

— Electronics production - wrapping fine 0.1 mm leads and sensor cables

— Coil and transformer winding - winding and taping small coils in one operation

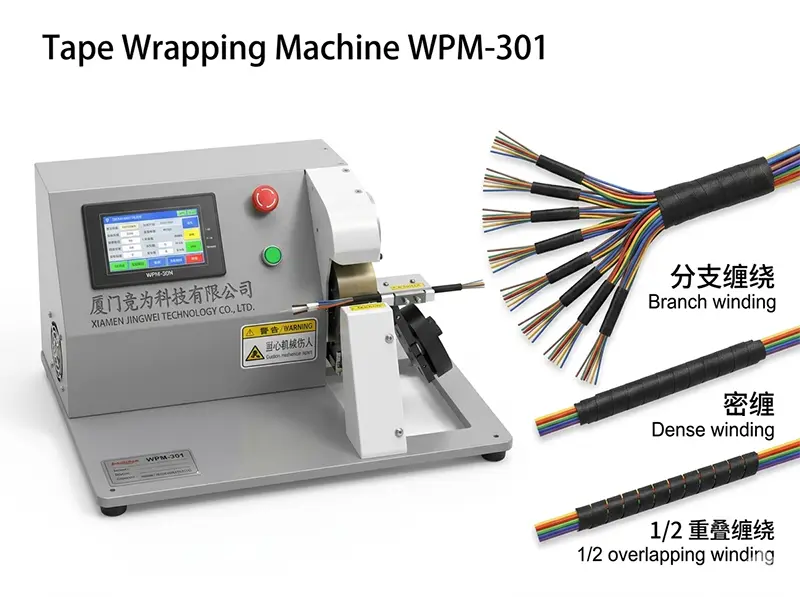

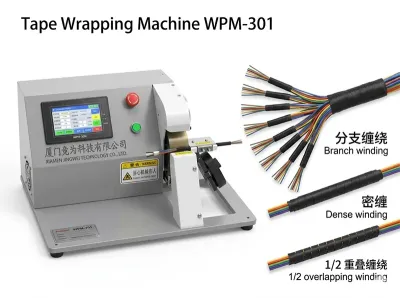

coil winding and tape wrapping machine with touchscreen and tape rollsdiagram of eight wrapping patterns such as dense and interval winding
Automatic Tape Wrapping Machine WPM-301
