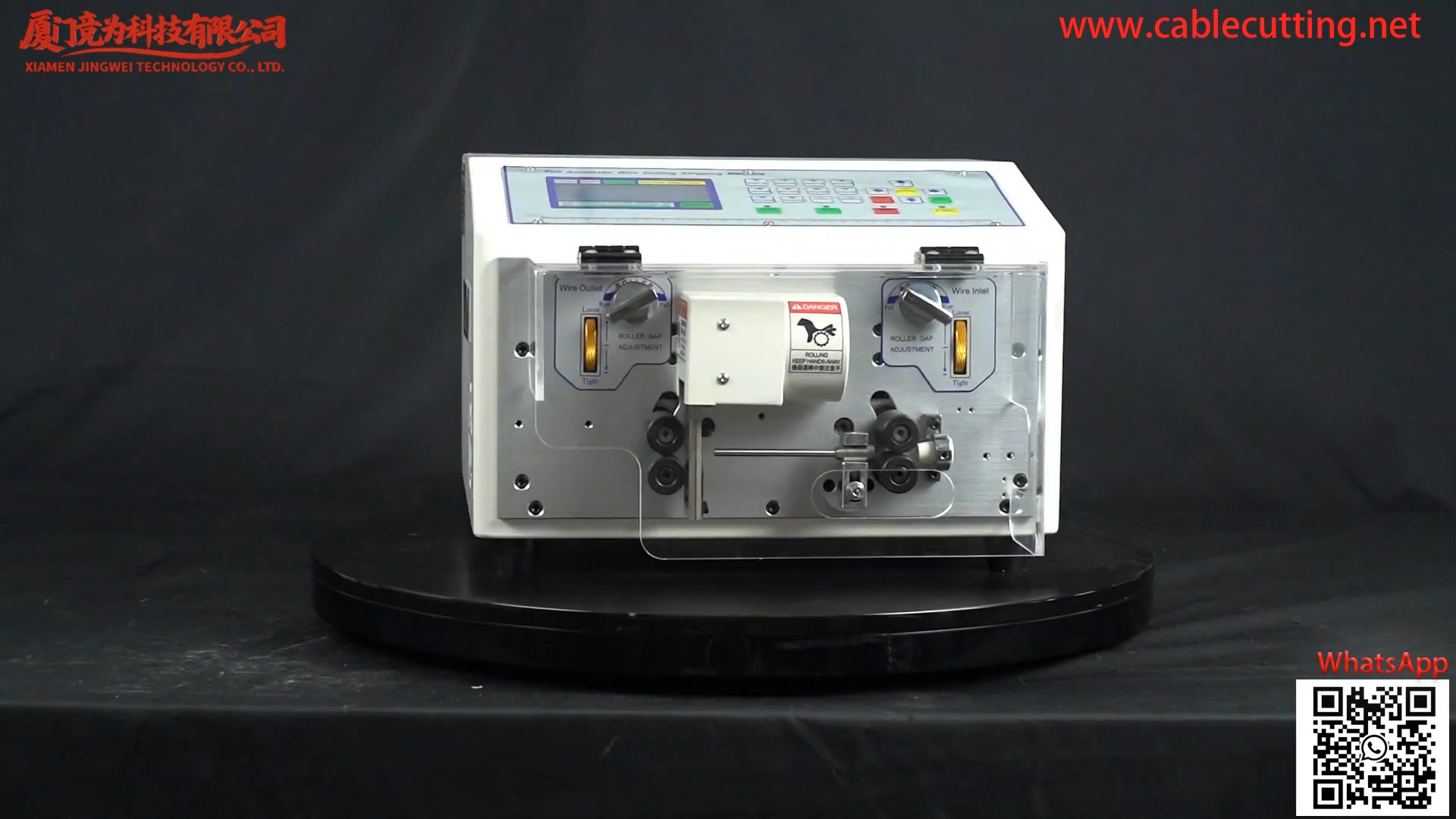

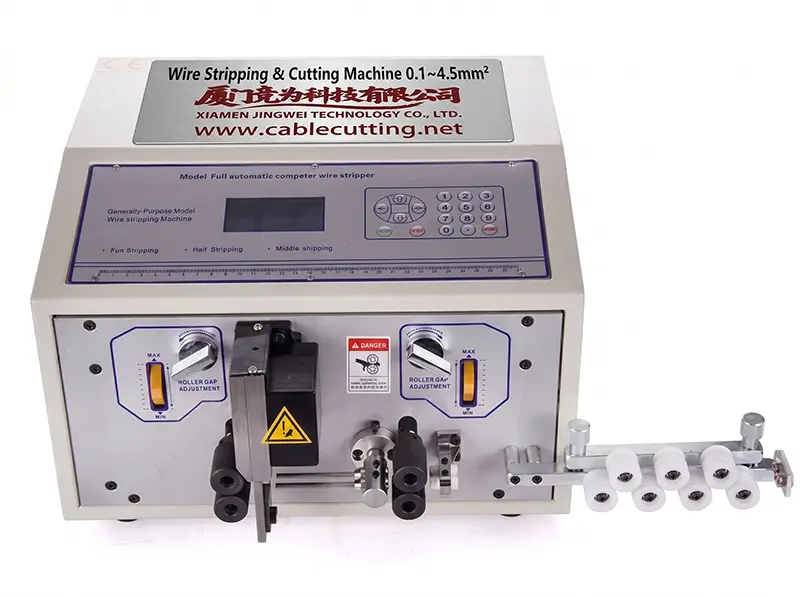

The WPM-09C is a high-speed automatic wire stripping and cutting machine for the 0.1–4.5 mm² range — the sizes that make up most appliance, control panel and small harness work. Wire is fed, measured, cut and stripped at both ends in one continuous cycle, so a batch of 5,000 leads is a machine job rather than a bench job.
Both ends are stripped in the same pass, with independent lengths: up to 35 mm on the head side and 15 mm on the tail side. That covers the common asymmetric lead — a long strip at the terminal end, a short one at the other — without running the wire twice.
Cutting length runs from 1 mm to 9,999 mm on a 6 mm conduit, and the whole unit sits on a 39 × 35 × 25 cm footprint, so it fits on an existing bench next to the crimping press rather than needing its own cell.
Key Features
1. 0.1 – 4.5 mm² wire range on a 6 mm conduit — covers the mainstream appliance and control-panel sizes.
2. Both ends stripped in one cycle, with independent lengths: head side 0 – 35 mm, tail side 0 – 15 mm.
3. Cutting length 1 – 9,999 mm, set as a number rather than by moving a mechanical stop.
4. One continuous feed-measure-cut-strip cycle — no operator handling between steps.
5. Compact 39 × 35 × 25 cm body that fits an existing workbench.
6. Program-based settings so a repeat batch runs at the same length and strip depth as the first.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-09C |
|---|
| Machine type | Automatic wire stripping and cutting machine |
|---|
| Wire cross-section | 0.1 – 4.5 mm² |
|---|
| Conduit diameter | 6 mm |
|---|
| Stripping length (head side) | 0 – 35 mm |
|---|
| Stripping length (tail side) | 0 – 15 mm |
|---|
| Cutting length | 1 – 9,999 mm |
|---|
| Stripping mode | Both ends stripped in one cycle |
|---|
| Dimensions | 390 × 350 × 250 mm |
|---|
Applications
— Control panel and cabinet wiring — pre-cut, pre-stripped leads in consistent lengths.
— Home appliance harness — short leads where both ends need different strip depths.
— Small electronics assembly — 0.1–1 mm² wire at bench speed.
— Contract harness shops — repeat batches run from the same program.
