Double-End Terminal Crimping & Housing Inserting Machine JW-CK01
Double-End Terminal Crimping & Housing Inserting Machine JW-CK01 Thumb
Video Thumbnail

Double-End Terminal Crimping & Housing Inserting Machine JW-CK01

📅 2026-05-09 👁️ 653
  • Model No: JW-CK01

  • Specifications

    1. Model: JW-CK01 Double-End Terminal Crimping & Housing Inserting Machine
    2. Display: 15-inch LCD touch screen
    3. Control System: MCU control system
    4. Capacity: Approx. 1,600–2,600 pcs/hour for 100 mm wire length (actual capacity depends on working conditions)
    5. Applicable Wire Gauge: AWG30# – AWG16# (customizable for special requirements)
    6. Processing Length: 90 mm – 900 mm (customizable for longer sizes)
    7. Stripping Length: 0.1 mm – 14 mm (adjustable)
    8. Cutting Accuracy: ±0.1 mm
    9. Crimping Force: 1.5 tons (customizable for special needs)
  • Inquiry now

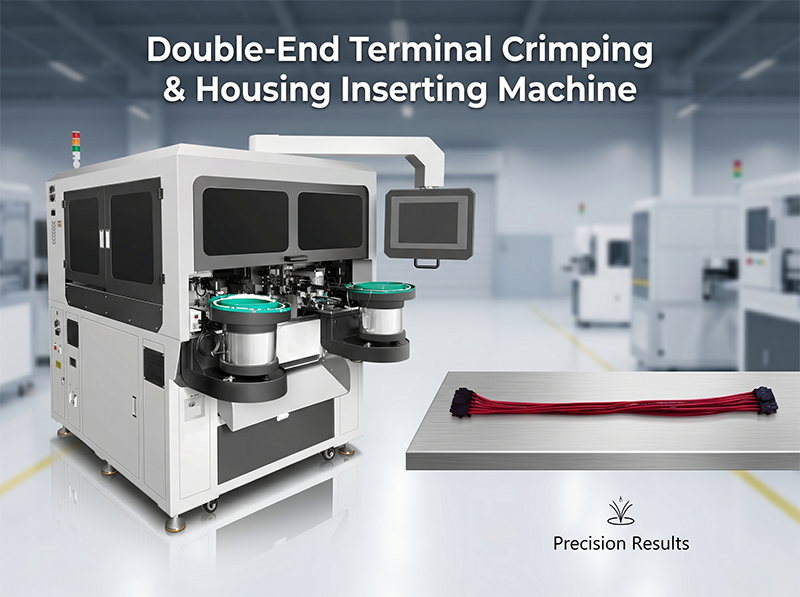

The JW-CK01 is a double end crimping housing machine that cuts, strips, crimps both ends and inserts housings in one automatic cycle. It runs AWG30 to AWG16 wire from 90 to 900 mm long, holds cut accuracy to ±0.1 mm and reaches 1,600 to 2,600 pieces per hour on 100 mm leads. Precision harness builders in new energy, appliances, 3C electronics and automotive supply use it for connectors that must seat first time.

Key Features

  • Insertion at both ends — Housings are pushed onto crimped terminals on each end, so a completed lead is a single machine output.
  • 15-inch touch interface — A large LCD screen with an MCU controller sets length, strip, crimp position and detection rules.
  • Fine gauge handling — AWG30 to AWG16 coverage with 0.1–14 mm stripping spans sensor leads and power leads on one platform.
  • 1.5-ton crimp head — Force is sufficient for the terminal range and can be specified higher for special terminals.
  • In-process inspection — Vision, wire absence, air pressure, paper collection and terminal shortage detection stop the cycle on a fault, with pull force and pressure monitoring available as options.
  • Waste handling — Waste paper winding, scrap collection and tape cutting are built in, keeping the cell clear through a shift.
  • Heavy frame — At about 1,100 kg on a 2200 × 1800 × 2200 mm base, alignment holds through continuous dual-end work.

Technical Specifications

ModelJW-CK01 double-end terminal crimping and housing inserting machine
Display15-inch LCD touch screen
Control systemMCU
OutputApprox. 1,600–2,600 pcs/h on 100 mm wire
Applicable wire gaugeAWG30–AWG16, customizable
Processing length90–900 mm, customizable for longer sizes
Stripping length0.1–14 mm, adjustable
Cutting accuracy±0.1 mm
Crimping force1.5 tons, customizable
Detection devicesVisual inspection, wire absence, air pressure, paper collection, terminal shortage; pull force and pressure monitoring optional
Standard external equipment8-axis tension pay-off stand, finished product conveyor
Power supplyAC 220 V, 50 Hz, customizable
DimensionsL2200 × W1800 × H2200 mm
WeightApprox. 1,100 kg
Installation spaceL3200 × W4000 × H2200 mm

Applications

  • New energy harnesses with small-gauge sensing conductors
  • Home appliance wiring that terminates into housings
  • 3C electronics leads built in high volume
  • Connector assemblies for automotive sub-harnesses
  • Precision harnesses requiring visual and pull force checks

Why Choose This Model

With 14 servo axes, a 15-inch interface and a full detection package, the machine holds finished housing position rather than relying on operator judgment. As an automatic wire harness processing machine it also collects scrap, winds waste paper and cuts tape, so the cell stays clear through a shift. Longer processing lengths, higher crimp force and special terminals are quoted as customization on the same base. The terminal crimping inserter is delivered factory direct with installation drawings, and the sales contract fixes the final configuration before shipment.
