Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B JW-HST-05B
Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B JW-HST-05B Thumb
Video Thumbnail

Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B JW-HST-05B

📅 2026-05-11 👁️ 2,439
  • Model No: JW-HST-05B

  • Specifications

    Mini Automatic Heat Shrink Machine for Cable Insertion and PVC Tubing Baking JW‑HST‑05B
    Power Supply AC 220V 50/60Hz
    Baking Length 5 mm–120 mm
    Baking Pipe Diameter 2.0 mm–45 mm
    Efficiency 600–1200 pcs/h
    Yield Rate 99%
    Power 1.6 / 2 / 3 kW
    Product Size 400×200×200 mm
    Weight Approx. 6 kg
  • Inquiry now

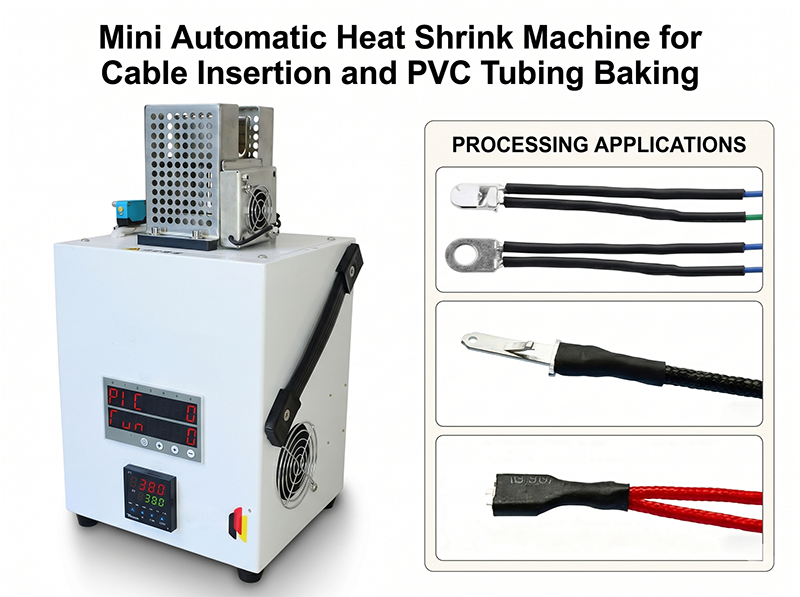

The JW-HST-05B is a mini heat shrink machine for cable insertion and PVC tubing baking. Tubing from 2.0 to 45 mm diameter is shrunk over lengths of 5 to 120 mm at 600 to 1200 pieces per hour, and the unit occupies a 400 × 200 × 200 mm footprint at about 6 kg. It suits harness cells and electronics assemblers that need a compact station beside manual insertion.

Key Features

  • Compact frame — 400 × 200 × 200 mm and roughly 6 kg, so it can be lifted onto any bench and moved between lines.
  • Stable temperature control — Heating is regulated digitally, which keeps shrinkage uniform from the first part to the last.
  • 99 percent yield — With correct loading practice the machine returns a 99 percent good-part rate.
  • 600–1200 pcs/h — Throughput depends on sleeve length and diameter and covers both short boots and longer sections.
  • Wide tube range — PVC and other heat-shrink tubing from 2.0 to 45 mm is accepted.
  • Safety switching — Sensing switches and a proven control circuit guard the heating zone during manual loading.
  • Patented design — The unit is covered by invention, utility model and design patents.

Technical Specifications

ModelJW-HST-05B
Power supplyAC 220 V, 50/60 Hz
Baking length5–120 mm
Baking pipe diameter2.0–45 mm
Output600–1200 pcs/h
Yield rate99%
Power1.6 / 2 / 3 kW
Dimensions400 × 200 × 200 mm
WeightApprox. 6 kg

Applications

  • Heat shrink sleeves on harness terminals and splices
  • Insulation of electronic components and lead joints
  • Connector boot shrinking on cable ends
  • Cable insertion and pressing before connector forming
  • Small-batch and semi-automatic production lines

Why Choose This Model

The compact size means a line can place one unit where the sleeves are actually fitted, instead of carrying parts to a central oven. As automatic cable heat shrink equipment it covers insertion, pressing, forming and baking in one pass, which keeps a manual bench at line speed. Machines are supplied factory direct with a short lead time, and heating elements are available as spares. Custom fixtures and alternative power configurations are quoted on request, so the PVC tubing baking machine can be matched to a specific sleeve or connector profile.
