EM-6B1 and EM-6B2 are the same benchtop electric crimping machine, wired for 110 V and 220 V respectively. Output force is 12.7 kN over a crimping range of 0.25 to 10 mm2 for pre-insulated terminals, with a crimp cycle of about 1.5 s. Seven interchangeable die sets are supplied, and the unit measures 325 x 265 x 150 mm at 16.8 kg.
Hand ratchet tools in this range depend on grip force and leave no record of how many crimps were made. The EM-6B1 and EM-6B2 are motor driven and triggered by a foot switch, so both hands stay on the terminal and wire, and each cycle is counted on the digital counter. An overload protector trips the motor instead of letting it stall, and the CW/CCW switch jogs the die open or closed during setup.
Within the group this is the small-terminal electric unit. The WPM-50T is hydraulic and reaches 120 mm2 cable lugs; the EM-6B1 and EM-6B2 stop at 10 mm2 and are built to sit on a bench. Against the WPM-2P_64P, which closes IDC ribbon connectors, this machine crimps discrete insulated terminals one at a time.
Key Features
1. 12.7 kN output force with a crimp cycle of about 1.5 s, applied as a motor-driven squeeze rather than a hammer blow, so the noise at the bench is the motor and not an impact

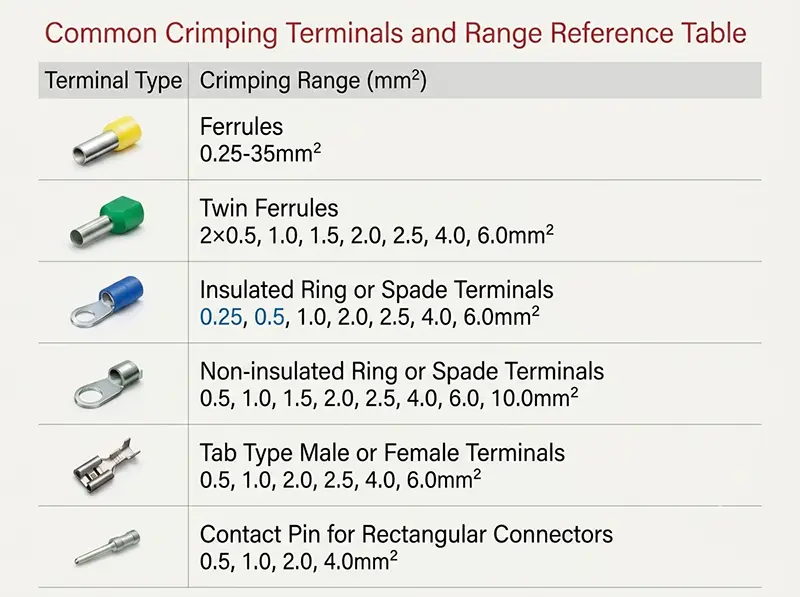

2. Crimping range of 0.25 to 10 mm2 for pre-insulated terminals; cutting capacity is Cu/Al conductors up to 7 mm
3. Seven interchangeable precision die sets cover the range and are changed at the die window on the right of the housing
4. Foot switch operation leaves both hands on the wire; the CW/CCW switch jogs the die for insertion and release
5. Digital counter, overload protector and guiding LED sit on the front panel, so cycle count and fault state are read at the machine
6. The overload protector stops the motor on a jam, and the die window is recessed in the housing so fingers cannot reach the closing dies
Technical Specifications
| Parameter | Specification |
|---|
| Model | EM-6B1 (110 V) / EM-6B2 (220 V) |
|---|
| Machine type | Electric terminal crimping machine |
|---|
| Output force | 12.7 kN |
|---|
| Crimping range | 0.25 - 10 mm2 |
|---|
| Cutting capacity | Cu/Al conductors up to 7 mm |
|---|
| Die sets included | 7 interchangeable precision die sets |
|---|
| Crimp time | About 1.5 s |
|---|
| Voltage | AC 110 / 220 V |
|---|
| Operation | Foot switch control |
|---|
| Additional features | Counter, overload protection, CW/CCW switch, carry handle |
|---|
| Dimensions | 325 x 265 x 150 mm |
|---|
| Weight (net) | 16.8 kg |
|---|
Applications
— Control cabinet wiring: pre-insulated ferrules and terminals crimped before the wire is dressed into duct
— Appliance and lighting assembly: 0.25 to 10 mm2 insulated terminals on internal leads
— Automotive aftermarket and repair benches: single crimps on replacement leads without a reel-fed press
— Site and retrofit work: the 16.8 kg unit with carry handle travels to the panel being modified
— Small harness shops: one tool covering seven die sizes instead of seven separate hand tools
