Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18
Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18 Thumb Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18 Thumb Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18 Thumb Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18 Thumb
Video Thumbnail

Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18

📅 2026-05-16 👁️ 2,113
  • Model No: WPM-FCCM-18

  • Specifications

    Semi-Automatic Flat Ribbon Cable Crimping Machine WPM-FCCM-18
    Power: 220V, 50/60Hz
    Terminal Pressing Force: Adjustable
    Terminal Crimping Direction: Positive and negative crimping adjustable
    Stripping Length: 1-5mm (customizable)
    Weight: 65kg
    Flat Cable Splitting Length: Over 30mm
    Cable Length: Over 90mm
    Number of Flat Cables: 2P-20P
  • Inquiry now

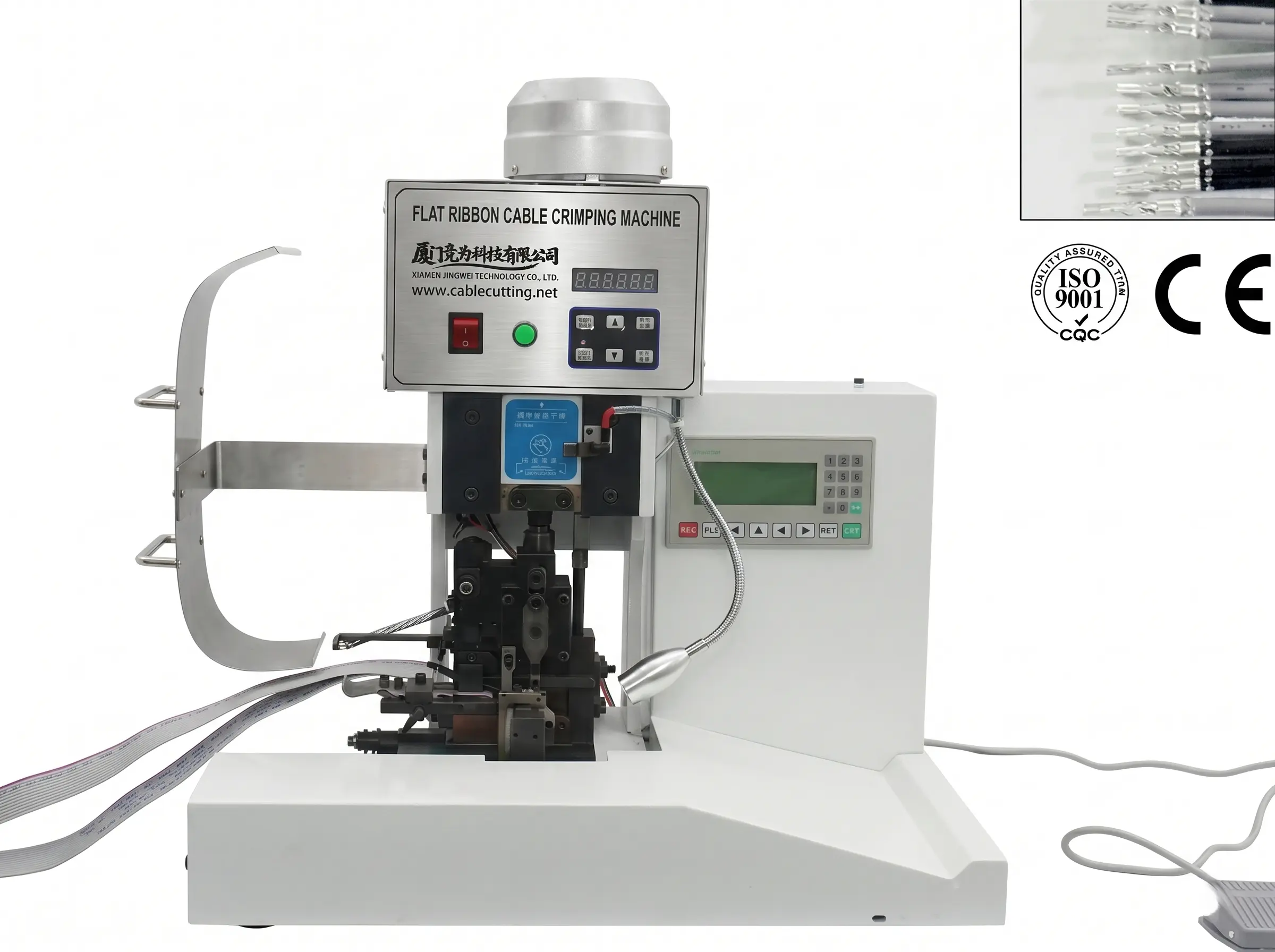

WPM-FCCM-18 is a semi-automatic crimping machine for flat ribbon cable, covering connectors from 2P to 20P. Crimping force is adjustable, and the crimp direction can be set for positive or negative presentation, so the same head accepts a connector from either side of the ribbon. It runs on 220 V 50/60 Hz and weighs 65 kg, with the crimping head on a bench base and a separate control cabinet to the right.

Ribbon cable is normally terminated with a hand tool or an arbor press, and both leave the seating of the connector to the operator. Here the connector is located in the die, the cable is held in the swing-away guide arm, and the values are entered on the control cabinet keypad, so a 2P to 20P connector family crimps to the same depth whoever is at the machine. Stripping length is set between 1 and 5 mm, and the cycle is started from a foot pedal.

There is no direct equivalent in the terminal press range. The S series presses crimp single terminals with interchangeable applicators, while this machine is built around the flat cable itself: the guide arm, the split-length setting of over 30 mm, the 2P-20P die range and the adjustable crimp direction. Cable length must be over 90 mm, which is the one limit to check before the machine is specified.

Key Features

1. Covers 2P to 20P flat ribbon cable connectors on one machine

2. Terminal pressing force adjustable at the control cabinet

3. Crimp direction adjustable for positive and negative presentation

4. Stripping length 1-5 mm, customizable on request

5. Flat cable splitting length over 30 mm and cable length over 90 mm

6. Swing-away cable guide arm, work lamp at the die and a foot pedal cycle, supplied under CE and ISO 9001 (CQC) marking

Technical Specifications

ParameterSpecification
ModelWPM-FCCM-18
Number of flat cables2P-20P
Terminal pressing forceAdjustable
Terminal crimping directionPositive and negative crimping adjustable
Stripping length1-5 mm (customizable)
Flat cable splitting lengthOver 30 mm
Cable lengthOver 90 mm
Power220V, 50/60Hz
Weight65 kg

Applications

— IDC socket and header assemblies: ribbon pressed onto the connector in one pedal cycle

— Computer and instrument internal harnesses: 2P to 20P jumpers cut to length and terminated in house

— Appliance controller boards: flat cable terminated with the crimp direction set to suit the connector entry

— Test fixture and rack wiring, where a short run of ribbon has to be terminated without a hand tool

— Contract assembly of ribbon cable sets, with stripping length set between 1 and 5 mm for the connector family
