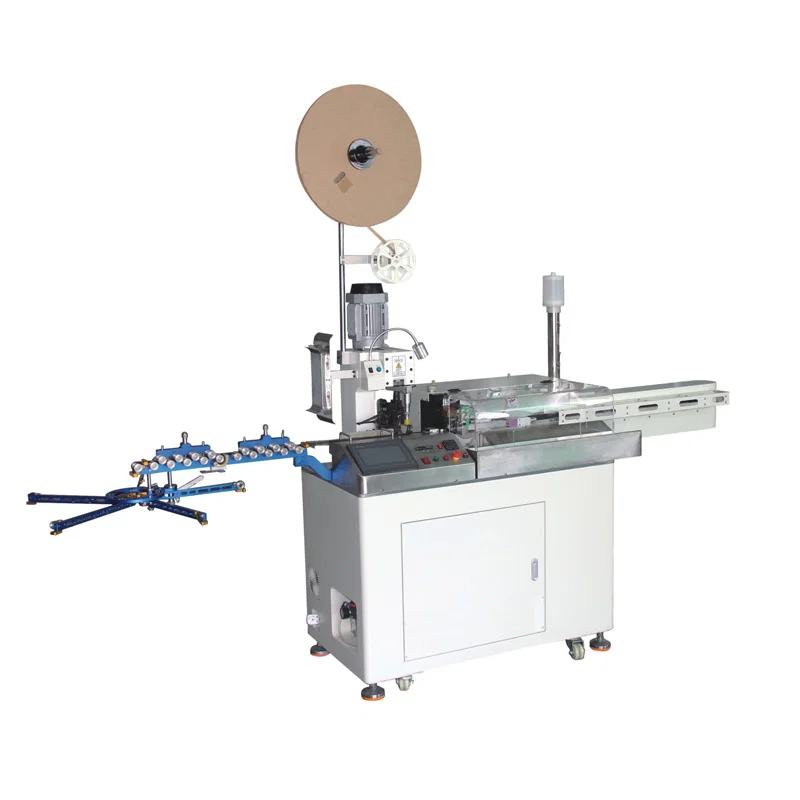

  • Fully Automatic Single End 5 Wire Cutting Stripping Crimping And Tinning Machine

  • detailed description
  • Fully Automatic single-end 5 wire cutting stripping crimping and tinning machine, Wire Cutting Stripping Crimping Tinning, Wire Cutting Stripping Crimping Tinning Machine, Wire Crimping Tinning Machine

    The machine is designed to automatically cut, and strip wires, and single-end crimp terminal, and the other end dip tin. With high efficiency and high accuracy.

    Features

    Machine Dimensions(L*W*H): 1210*770*1370mm.

    Machine Weight: 450KG.

    Features:

    1. Control system: Delta PLC.

    2. Cylinder: Germany Mayer.

    3. Solenoid valve: Festo, Germany.

    4. Screw guide: Taiwan silver.

    5. Servo motor drive: Hechuan (optional with Mitsubishi).

    6. Pneumatic components: SMC

    7. Temperature control table: Omron

    Advantages:

    Fully Automatic single end 5 wire cutting stripping crimping and tinning machine
    1. Factory-direct sales, excellent quality, computer touch screen Chinese/English operation menu is easy to learn and use.

    2. Using imported high-precision parts, stable performance.

    3. The operation is simple, the length of the wire, the cutting speed, the time of immersion tin, and the number of times of tin dipping are completely touched by the touch screen, which realizes that some wires that are difficult to tin are dipped in the tin.

    4. Lead-free tin furnace meets high environmental protection standards; has an automatic tin scraping device, which makes the cut wire bright without tin residue; the tin scraping time can be set to make the tin loss reach the bottom; the tin is dipped at a 90-degree angle, and the tin mouth is even.

    Specification

    Item value

    Place of Origin China

    Usage Both ends cut, strip, one end twist dip tin, one end crimp

    Warranty 1 Year

    Efficiency 6000-8000/H depends on the product

    Applicable wire AWG18-24 / AWG24-32

    Cutting length 15-1000mm

    Cutting tolerance 0.2+/-0.02* Length

    Stripping length 0-9mm

    Twist length 3-9mm

    Tinning length 0.5-9mm

    Crimping force 2T, customized

    Air supply 0.5~0.7MPA

    wire cutting stripping crimping tinning, wire cutting stripping crimping tinning machine, wire crimping tinning machinewire cutting stripping crimping tinning, wire cutting stripping crimping tinning machine, wire crimping tinning machine
