Universal Heat Shrink Tubing Baking Machine JW-100ST-01

📅 2026-05-05 👁️ 2,693
  • Model No: JW-100ST-01

  • Specifications

    Universal Heat Shrink Tubing Baking Machine JW-100ST-01
    Model JW-100ST-01
    Input Voltage 220V-AC
    Frequency 50/60Hz
    Rated Power 1350W
    Display 4.3 inch Color TFT
    Operation Cycle 2.2 seconds
    Operation Mode Passive
    Control System PLC/Touch Screen
    Tubing Compatibility φ1.0-φ6.5 (customizable above φ7.0)
    Baking Length 4mm-50mm (with optional jig)
    Baking Temperature 200℃-380℃ (adjustable)
    Air Pressure 5.5/6.5KPa
    Operating Temperature 0℃-50℃
    Storage Temperature -20℃-60℃
    Operating Humidity 10%RH~90%RH (non-condensing)
    Cooling Method Forced Air Cooling
    Dimensions L500×W640×H1300mm
    Weight 78kg
  • Inquiry now

The JW-100ST-01 is a universal heat shrink tubing baking machine that slides a sleeve over a crimped terminal and shrinks it to a fixed length. PLC control with a touch screen drives the cycle at 2.2 seconds, and the passive operation mode lets one operator load parts by hand while automatic processing handles tubing advance, baking and discharge. Harness shops and electronics assemblers use it for terminal boots, splices and connector tails at 700 to 2500 terminals per hour.

Key Features

  • PLC and touch screen control — Parameters are entered on a 4.3-inch color TFT and stored, so a repeat job is recalled rather than rebuilt.
  • Free baking length — Shrink length is set from 4 to 50 mm with the matching jig, covering short terminal boots and longer sleeve sections on one platform.
  • Adjustable temperature window — The heater runs from 200 to 380 °C, wide enough for thin-wall polyolefin and heavier PVC tubing.
  • Positioning device — The welding position shifts on the fixture so the tube seats against the terminal shoulder instead of overhanging it.
  • Jig-based changeover — Swapping the fixture adapts the machine to different wire and terminal sizes without mechanical rework.
  • Automatic wire picking — A manipulator lifts standard wires into position, removing the handling step that causes misalignment.
  • Fault protection — Heater anomaly monitoring, low air pressure protection and one-key parameter recovery limit scrap after an interruption.

Technical Specifications

ModelJW-100ST-01
Input voltage220 V AC
Frequency50/60 Hz
Rated power1350 W
Display4.3-inch color TFT
Operation cycle2.2 seconds
Operation modePassive
Control systemPLC with touch screen
Tubing compatibilityφ1.0–φ6.5 mm, customizable above φ7.0 mm
Baking length4–50 mm with optional jig
Baking temperature200–380 °C, adjustable
Air pressure5.5/6.5 KPa
Cooling methodForced air cooling
DimensionsL500 × W640 × H1300 mm
Weight78 kg
Output700–2500 terminals/hour, depending on manual loading speed

Applications

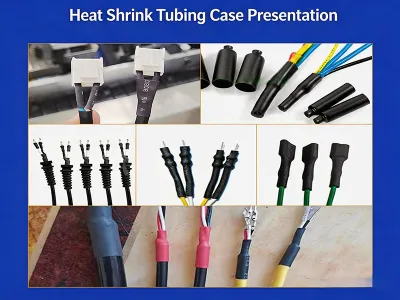

  • Heat shrink boots on crimped terminals in harness assembly
  • Splice sealing and wire joint insulation
  • Connector tail sleeving before final assembly
  • PVC tubing baking on small electronic assemblies
  • Mixed-model runs where one platform must cover several tube sizes

Why Choose This Model

The machine is built on a standard platform, so jigs and heaters are held as spares, so a second fixture does not hold up the order. Tubing above φ7.0 mm and non-standard baking lengths are handled as customization, quoted against the sample part. Support comes from the factory directly, including parameter files for repeat orders and remote diagnosis of control faults. Because the unit is a stock configuration rather than a project build, a second identical station can be added mid-season without a new tooling cycle.
