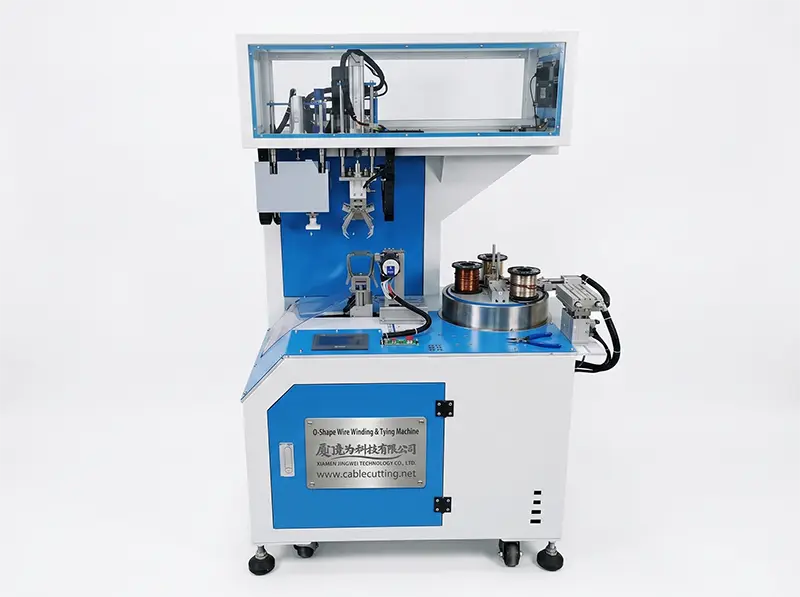

Automatic O-Shape Wire Winding & Tying Machine WPM-82o

Name: Automatic O-Shape Wire Winding & Tying Machine WPM-82o
Brand: JINGWEI
SKU: WPM-82o
Availability: InStock
Rating: 5 (1 reviews)

Headline: Achieve Perfect O-Shapes with the WPM-82o: The Premier Wire Winding Tying Machine for O-Shaped Bundles

Introduction:

Introducing the WPM-82o O-shaped Wire Winding and Tying Machine, a specialized solution engineered for creating perfectly formed O-shaped wire bundles with secure double ties. This advanced Wire Winding Tying machine, also known as a wire winding and bundling machine and functioning effectively as an automatic fan winding machine, is designed to deliver consistent, high-quality O-shaped wire bundles with exceptional efficiency and reliability. Ideal for various applications, the WPM-82o streamlines your production and ensures professional results every time.

Key Features and Benefits:

Specialized for O-Shaped Wire Bundles: The WPM-82o is specifically designed to create precise O-shaped wire configurations, meeting the unique requirements of various applications demanding this specific shape.
Double-Tying for Enhanced Security and Neatness: Equipped with double-tying capabilities, this machine ensures exceptionally secure and neat wire bundles, preventing loosening and maintaining a professional finish.
Versatile Cable Compatibility: Process a range of wire and cable types, including AC, DC, and USB cables, making this machine adaptable to diverse production needs.
Wide Range of Wire Diameters and Lengths: Handle wire outer diameters from 3 to 6 mm and winding lengths from 2 to 30 meters, offering flexibility for various cable sizes and bundle configurations.
Adjustable Winding Speed for Optimal Performance: Customize the winding speed to suit different wire types and thicknesses, ensuring optimal winding quality and efficiency.
Customizable Stripping Lengths (Head & Tail): Tailor the stripping lengths at both the head and tail of the wire to your exact specifications, providing maximum flexibility and customization.
Pre-set Wire Head and Tail Lengths for Consistency: Maintain consistent wire head lengths (80-120mm) and wire tail lengths (60-90mm) for standardized and professional-looking finished products.
High Productivity for Increased Throughput: Achieve a productivity rate of 450 pieces per hour (for 5-meter winding lengths), significantly boosting your production output and meeting demanding schedules.
Pneumatic Operation for Reliable Performance: Utilizing a compressed air connection (0.7 - 0.8 MPa), the machine ensures consistent and reliable operation with pneumatic precision.
Robust and Durable Construction: Built to withstand industrial demands, the WPM-82o features a robust construction with substantial dimensions (1500 * 1500 * 1770 mm) and weight (450 kg), ensuring long-term reliability and performance.

Technical Specifications:

Feature	Specification
Model	WPM-82o
Keyword Focus	Wire Winding Tying, wire winding and bundling machine, automatic fan winding machine
Finished Product	O-shaped with double tying
Wire/Cable Types	AC / DC / USB, etc.
Wire Outer Diameter	3 - 6 mm
Distance of Winding Part	200 - 220 mm
Winding Length	2 - 30 m
Winding Speed	Adjustable
Tying Outer Diameter	≤ 45 mm
Stripping Length (Head)	Customizable
Stripping Length (Tail)	Customizable
Wirehead Length	80 - 120 mm
Wire Tail Length	60 - 90 mm
Productivity	450 pieces per hour (5m winding length)
Compressed Air Connection	0.7 - 0.8 MPa
Power Supply	110, 220 V (50 - 60 Hz)
Power	3.5 kW
Dimensions	1500 * 1500 * 1770 mm
Weight	450 kg

Applications:

The WPM-82o Wire Winding Tying machine is specifically designed for applications requiring O-shaped wire bundles with secure double ties, including but not limited to:

Fan motor winding (functioning as an automatic fan winding machine)
Specialized cable assemblies requiring O-shaped configurations
And other applications demanding precise O-shape wire bundling

Conclusion:

Elevate your O-shaped wire bundle production with the WPM-82o Wire Winding and Tying Machine. This specialized machine delivers precision, efficiency, and consistent quality, ensuring perfectly formed O-shaped bundles every time. Contact us today to learn more about how the WPM-82o can optimize your specific O-shaped wire processing needs and request a personalized quote.

What is the primary application of the WPM-82o Automatic O-Shape Wire Winding & Tying Machine?

The WPM-82o is an industrial wire processing machine designed for automated, high-speed production of perfectly formed O-shaped wire bundles. It is ideal for cable harness manufacturing, fan winding, and any application requiring consistent, secure bundling of wires or cables with a precise O-shape and double ties for maximum stability.

What wire diameter range can the WPM-82o machine handle?

The WPM-82o is engineered to process wires within a diameter range of 3mm to 6mm. This makes it versatile for various industrial wire bundling tasks, accommodating a standard spectrum of wire and cable sizes commonly used in electrical assemblies and harnesses.

What is the production speed of this automatic wire bundling machine?

This machine delivers high productivity with an output of up to 450 pieces per hour. This efficient speed supports streamlined production lines, reduces manual labor, and significantly increases throughput in cable harness and wire processing operations.

How does the double-tying feature benefit the wire bundles?

The automatic double-tying mechanism ensures each O-shaped wire bundle is secured at two points. This provides superior bundle integrity, prevents loosening during handling or installation, and enhances the overall quality and reliability of the finished product, which is critical for industrial applications.

What are the key benefits of automating wire winding and tying with the WPM-82o?

Automating with the WPM-82o offers multiple key benefits: it ensures consistent, high-quality O-shaped bundles every time, dramatically boosts production efficiency to 450 pcs/hour, reduces labor costs and human error, and is specifically designed to integrate seamlessly into cable harness manufacturing and similar industrial wire processing workflows.
