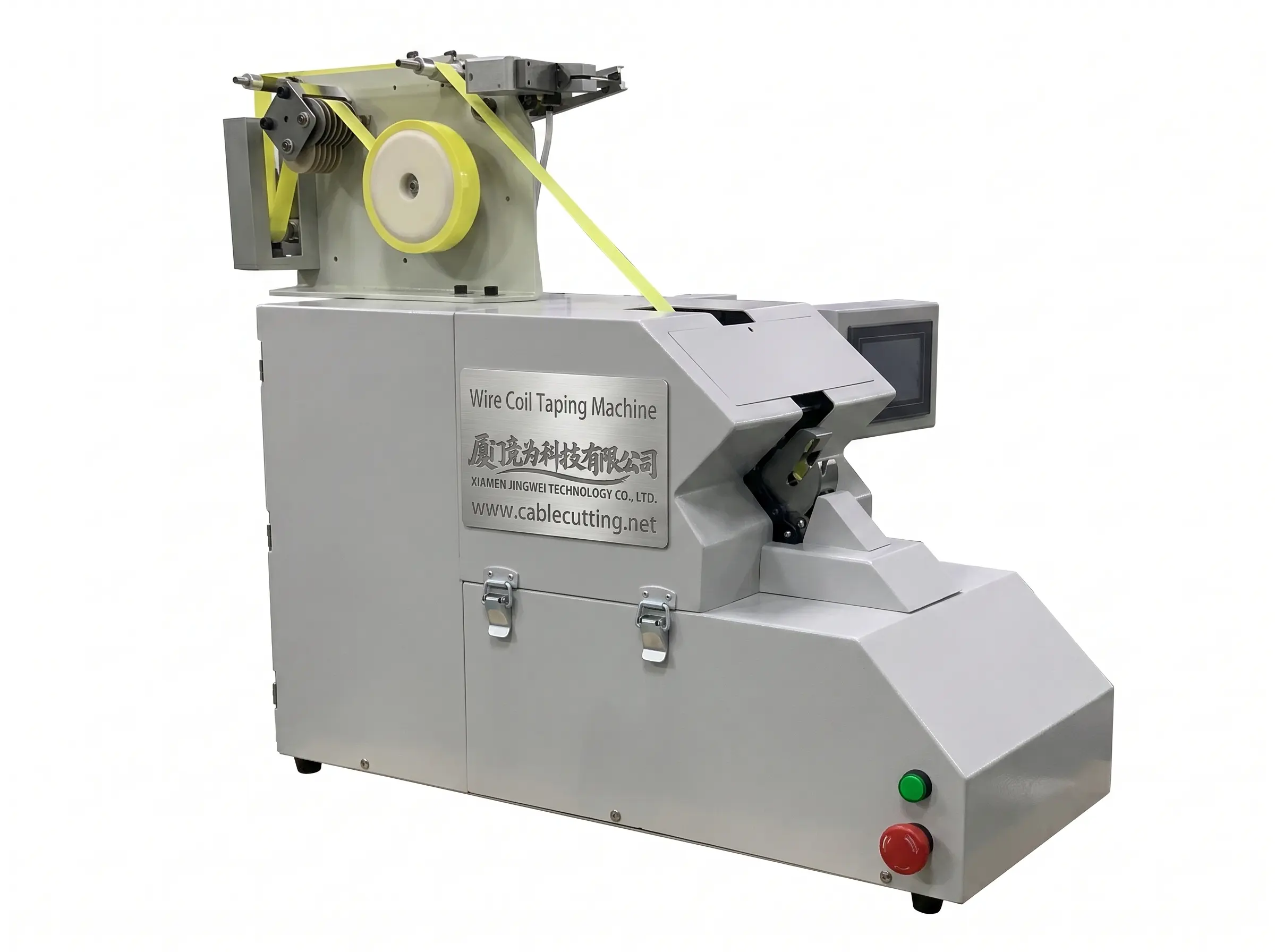

The WPM-75 is a semi-automatic bench machine that tapes the coiled wire bundle formed at the end of a harness. The operator loads the coil, the head applies tape from 12 mm to 18 mm wide and cuts it to a length set between 45 mm and 75 mm, and one cycle takes 1.5 seconds. Tape rolls with a 76 mm core and up to 120 mm outside diameter fit the spindle.
Hand taping a coil depends on how tightly the operator pulls the roll and where the roll happens to stop, so tape consumption and wrap position shift from coil to coil. On the WPM-75 the tape length is a set value in the 45-75 mm band and the cut happens on the same 1.5-second cycle, so each coil receives the same amount of tape in the same place. The pneumatic head runs on 4 kg/cm2 shop air and the drive is 0.55 kW at 220 V 50 Hz.
Within this group the WPM-75 is the coil machine: it works on a formed bundle rather than a cable run, and it is semi-automatic with a single-cycle head. The WPM-TP (279) wraps copper foil around round wire up to 10 mm for shielding, the WPM-1310 (362) winds PTFE tape on threaded fittings at 3-5 pieces per second, and the WPM-6-12 (367) flat-wraps harness runs. The WPM-75 is the model to specify when the workpiece is a coil, the tape is 12-18 mm, and the target is one coil every 1.5 seconds.
Key Features
1. Semi-automatic single-cycle head: load the coil, press start, 1.5 s per coil
2. Tape width 12-18 mm, tape roll core 76 mm
3. Accepts tape rolls up to 120 mm outside diameter
4. Cut tape length set from 45 mm to 75 mm per coil
5. 0.55 kW drive on 220 V 50 Hz, 4 kg/cm2 pneumatic supply
6. 30 kg bench frame, 670 x 390 x 480 mm, HMI screen with start and emergency stop
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-75 |
|---|
| Function | Wire coil taping, semi-automatic |
|---|
| Taping speed | 1.5 s per coil |
|---|
| Tape width | 12-18 mm |
|---|
| Tape inner diameter | 76 mm |
|---|
| Tape outer diameter max | 120 mm |
|---|
| Cutting length | 45-75 mm |
|---|
| Voltage / power | 220 V 50 Hz, 0.55 kW |
|---|
| Air pressure | 4 kg/cm2 |
|---|
| Dimensions | 670 x 390 x 480 mm |
|---|
| Weight | 30 kg |
|---|
Applications
— Automotive wiring - taping coiled bundles and branch take-offs at the end of a harness before routing into the cabin
— Home appliance wiring - taping coiled leads for motors, heaters and control boards before packing
— Small motor and power tool production - taping the coil ends of lead wires at the assembly bench
— Lighting and electrical assemblies - bundling and taping flexible wire coils for luminaires and drivers
— Harness subcontracting - repeatable coil taping with 12-18 mm tape at 1.5 s per coil
