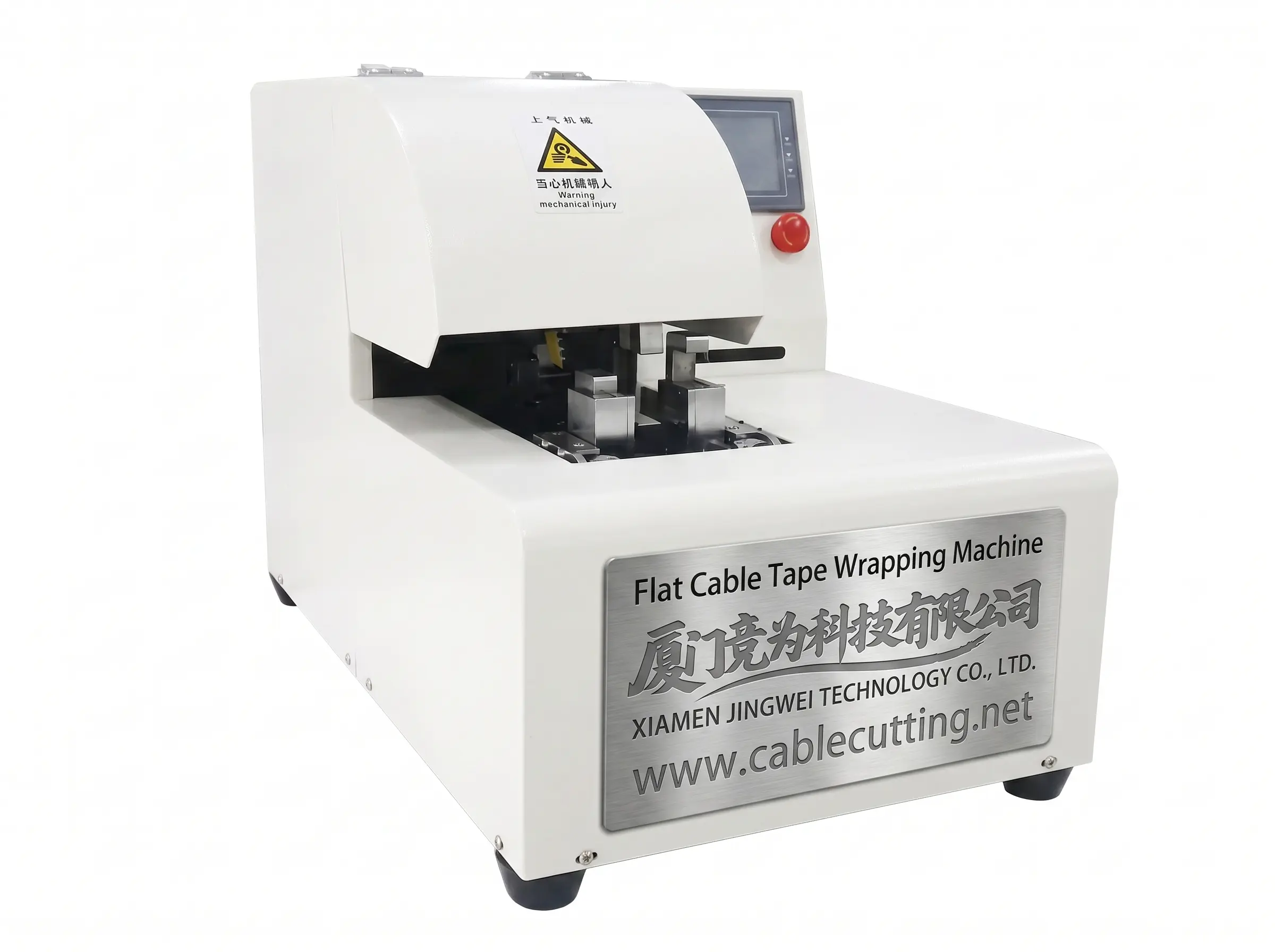

The WPM-690P spot-tapes flat cable and ribbon wire. It accepts cable up to 8 mm wide and 140 mm long or more, applies a 50 mm tape length from 10-45 mm wide tape, and runs 20 pieces per minute.
On ribbon cable the tape has to land on the same spot on every piece and fold evenly over both edges, which is hard to do by hand without creasing the conductors. The machine clamps the cable, applies the tape across the full width at the set length and folds it, so tape length and position come from the digital setting instead of the operator's eye.
This is the flat-cable model. The WPM-690L (198) folds a band around round harnesses, while the WPM-690P works on flat cable and ribbon wire with a short spot band. The rotary models 83, 84, 159 and 259 turn tape around a round conductor and cannot hold a flat profile.
Key Features
1. Spot taping for flat cable and ribbon wire
2. Cable width up to 8 mm, cable length from 140 mm
3. Tape width 10-45 mm with 50 mm tape length
4. Digital tape length adjustment
5. Production rate 20 pieces per minute
6. Pneumatic 0.4-0.6 MPa; 220 V or 110 V, 200 W
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-690P |
|---|
| Function | Spot taping |
|---|
| Applicable cable width | ≤ 8 mm |
|---|
| Applicable cable length | ≥ 140 mm |
|---|
| Tape length | 50 mm |
|---|
| Tape width | 10-45 mm |
|---|
| Production rate | 20 pcs/min |
|---|
| Air connection | 0.4-0.6 MPa |
|---|
| Power supply | 220 V and 110 V |
|---|
| Power | 200 W |
|---|
| Weight | 45 kg |
|---|
| Dimensions | 300 x 250 x 500 mm |
|---|
Applications
— Ribbon cable assembly - banding rainbow ribbon at the break-out point
— Electronics production - fixing flat cable before connector termination
— Appliance control boxes - taping flat cable runs at the cabinet entry
— Computer and peripheral cable - spot band at the split point of a flat cable
— Automotive flat loom - banding flat cable sections where a clip is fitted
