Wire Cut & Strip Machine With Ink-Jet Printer JW-WSCP

📅 2026-05-12 👁️ 427
  • Model No: JW-WSCP

  • Specifications

    Wire Cut & Strip Machine With Ink-Jet Printer JW-WSCP
    Function Wire cutting, double-end stripping, middle stripping, inkjet marking
    Wire Range 0.1-6mm² (AWG30-12)
    Cutting Length 0.1mm-99999.9mm
    Stripping Length Head: 0.1-250mm; Tail: 0.1-70mm
    Stripping Accuracy 0.01mm (Silent Hybrid Stepper Motor)
    Intermediate Strip 16 steps (Customizable)
    Working Capacity 3000-8000 pcs/h
    Blade Material Imported Tungsten Steel / High Speed Steel
    Power Supply AC110V/220V 50/60Hz
    Dimension 470mm * 450mm * 350mm
    Weight 31.5kg
    Extra Functions Automatic entry & exit, timing start, jog adjustment, wire shortage alarm
    Customization Support customized processing by providing samples
  • Inquiry now

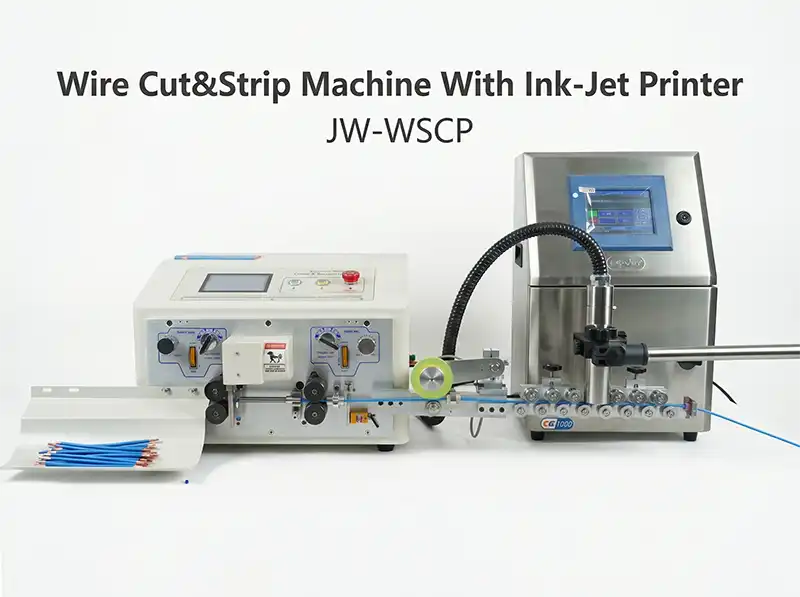

The JW-WSCP is an automatic wire cut & strip machine with a built-in ink-jet printer that cuts, strips both ends, opens a middle window, and marks each lead in a single pass. It processes 0.1–6 mm² (AWG 30–12) insulated cable at 3,000–8,000 pieces per hour. Harness shops, panel builders, and appliance OEMs use it where marked leads must reach the crimping station ready to terminate.

Key Features

  • Silent Hybrid Stepper Drive — a mute subdivision driver and integrated control board hold 0.01 mm stripping accuracy while keeping workshop noise low.
  • Multi-Step Stripping — full strip, partial strip, and multi-step programs cover window strips and staggered jackets, with up to 16 intermediate steps on request.
  • Automatic Length Correction — the machine measures wire size and trims the cut length back to the programmed value without operator input.
  • STEP Operation Display — on-screen step prompts walk new operators through setup, shortening training and reducing setup scrap.
  • Integrated Ink-Jet Marking — the built-in printer applies the legend during cutting, so leads need no separate marking operation.
  • Wire Shortage Detection — feed stops and alarms automatically when the supply reel runs out, protecting the blade and the batch.
  • Tungsten Steel Blades — imported tungsten steel or high-speed steel blades resist wear and cut without nicking the conductor.

Technical Specifications

ModelJW-WSCP
FunctionWire cutting, double-end stripping, middle stripping, ink-jet marking
Wire Range0.1–6 mm² (AWG 30–12)
Cutting Length0.1–99,999.9 mm
Stripping LengthHead end 0.1–250 mm; tail end 0.1–70 mm
Stripping Accuracy0.01 mm
Intermediate Strip16 steps, customizable
Working Capacity3,000–8,000 pcs/h
Blade MaterialImported tungsten steel / high-speed steel
Power SupplyAC 110 V / 220 V, 50/60 Hz
Dimensions470 × 450 × 350 mm
Weight31.5 kg
Extra FunctionsAutomatic entry and exit, timed start, jog adjustment, wire shortage alarm
CustomizationPrograms built from customer samples

Applications

  • Control cabinet and switchgear leads that must be cut, stripped, and identified in one operation.
  • Automotive, motorcycle, and appliance wire harness assembly.
  • Electronics and new energy equipment wiring.
  • Batch production of marked single conductors for OEM assembly lines.

Why Choose This Model

Stripping and marking programs for unusual wire constructions can be developed from samples you send with the inquiry. The compact 470 × 450 × 350 mm frame fits a standard workbench, so no dedicated floor space or compressed air line is required. Blades, feed wheels, and control boards are held as service parts, and our engineers support parameter setup and troubleshooting remotely during commissioning.
