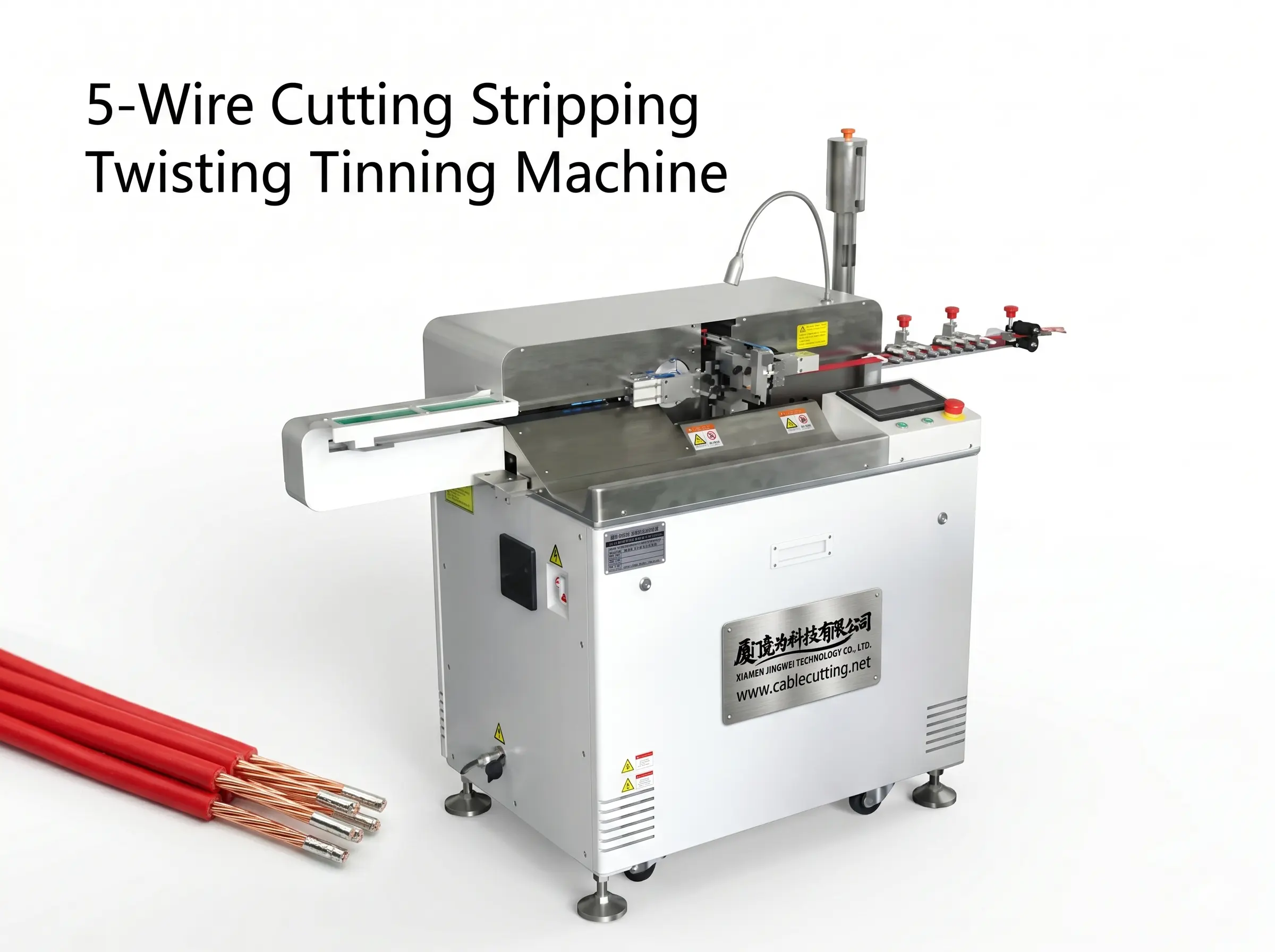

The JW-CM08 cuts, strips, twists and tins both ends of flat multi-core cable or single wire, taking up to 8 wires in one pass. Output is 2,700-4,000 pcs per hour at a 3-wire output on 32-20 AWG, rising to 6,400-10,000 pcs per hour at an 8-wire output on 20-16 AWG. Cutting length runs 30-550 mm, with a minimum of 8 mm available on custom order.
Twisting and tinning by hand gives a different twist pitch and a different dip depth on each lead, and a twisted end that is not fully wetted fails at the terminal block. The CM08 twists 3-9 mm and tins 0.5-9 mm on a controlled axis, holds cut length to 0.2 plus or minus 0.02 times the length, and finishes both ends without turning the cable around. Strip is 0-9 mm, so a bare end and a tinned end are set in the same program.
The CM08 is the double-end twisting model of this group: up to 8 wires per cycle, twisting and tinning at both ends, no terminal crimping. The JW-CM07 shares the five-wire platform but crimps one end and tin-dips instead of twisting. The 501S crimps one end and tins the other on single wire at 3,200 wires per hour. Where the finished part is a twisted and tinned multi-core tail rather than a terminated lead, the CM08 covers it in one cycle.
Key Features
1. Both ends cut, stripped, twisted and tinned in one cycle
2. Up to 8 wires processed simultaneously on the five-wire platform
3. 2,700-4,000 pcs/h at 3-wire output (32-20 AWG); 6,400-10,000 pcs/h at 8-wire output (20-16 AWG)
4. Applicable wire AWG18-AWG24 and AWG24-AWG32; cutting length 30-550 mm, 8 mm minimum on custom order
5. Strip 0-9 mm, twist 3-9 mm, tin 0.5-9 mm; cutting tolerance 0.2 +/- 0.02 x length
6. Air supply 0.5-0.7 MPa; 1-year warranty
Technical Specifications
| Parameter | Specification |
|---|
| Model | JW-CM08 |
|---|
| Functions | Cutting, stripping, twisting, tinning (both ends) |
|---|
| Wires per Cycle | Up to 8 |
|---|
| Output, 3-wire | 2,700-4,000 pcs/h, AWG32-AWG20 |
|---|
| Output, 8-wire | 6,400-10,000 pcs/h, AWG20-AWG16 |
|---|
| Applicable Wire | AWG18-AWG24 / AWG24-AWG32 |
|---|
| Cutting Length | 30-550 mm (8 mm minimum, customized) |
|---|
| Cutting Tolerance | 0.2 +/- 0.02 x length |
|---|
| Stripping Length | 0-9 mm |
|---|
| Twisting Length | 3-9 mm |
|---|
| Tinning Length | 0.5-9 mm |
|---|
| Air Supply | 0.5-0.7 MPa |
|---|
| Warranty | 1 year |
|---|
Applications
— Flat multi-core appliance harnesses: twisted and tinned tails at both ends
— Transformer and motor lead wires: tinned ends for screw or clamp terminals
— Lighting and power supply leads: both ends twisted and tinned for terminal blocks
— Sensor and audio cables: twisted strands, tinned for solder or plug assembly
— Control panel five-core looms: tinned ends on all conductors
