The WPM-555 cuts 3- and 4-core sheathed cable to length, strips the outer jacket and the inner cores, and crimps a terminal onto each core in one pass. Terminals can differ from core to core in the same cycle: ground ring, push-in 187/250 and flag types are applied simultaneously.

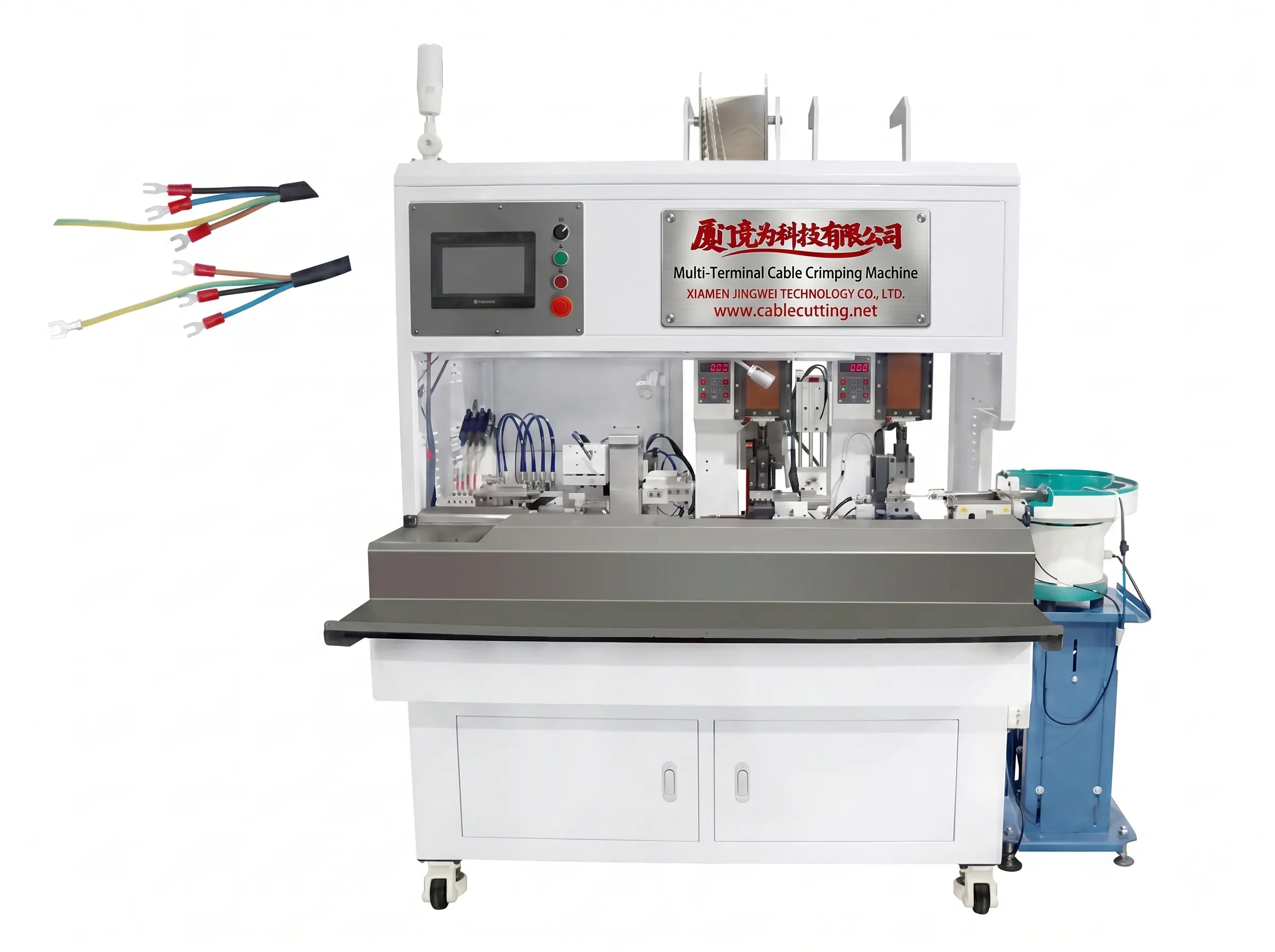

Harness drawings routinely call for cores of unequal length, and a fixed-length machine has to run the job twice. The WPM-555 accepts up to 200 mm difference between cores: three Mitsubishi servo motors on ball screws position each core independently, and the core pattern is stored on the touch screen. Terminal supply sits in a bowl feeder at the right of the frame, with the crimp stations and their counters inside the upper enclosure.
Against the WPM-32, the difference is terminal strategy rather than cable size. The WPM-32 runs 1.3 to 32 mm OD cable and up to 20 conductors with one ferrule on every core at 3600 pcs/h; the WPM-555 stops at 3 and 4 cores but mixes terminal types per core and tolerates 200 mm of length offset. Three-pin mains plug assembly is handled by the WPM-3500A, not by either machine.
Key Features
1. 3-core and 4-core sheathed cable in one setup, with cutting, jacket strip, core strip and crimp completed in the same cycle.
2. Up to 200 mm length difference between cores, held by independent core positioning instead of a fixed-length fixture.
3. Three Mitsubishi servo motors on ball screws drive the core axes, so each core reaches its own crimp station at its own length.
4. Different terminals crimped simultaneously on different cores - ground ring, push-in 187/250 and flag - without a second operation.
5. Bowl feeder and terminal applicators are mounted on the machine frame, keeping terminal supply inside the production footprint.
6. Touch screen control stores the core pattern and length offsets; the control cabinet and nameplate are integrated in the upper frame.
Technical Specifications
| Parameter | Specification |
|---|
| Model | WPM-555 |
|---|
| Machine type | Fully automatic multi-terminal cable crimping |
|---|
| Cable type | 3-core and 4-core sheathed cable |
|---|
| Core count | 3 / 4 |
|---|
| Wire length tolerance | Up to 200 mm difference between cores |
|---|
| Drive system | Mitsubishi servo, 3 motors |
|---|
| Transmission | Ball screw |
|---|
| Control interface | Touch screen |
|---|
| Applicable terminals | Ground ring, push-in 187/250, flag shape |
|---|
| Function | Cutting, stripping, crimping of inner cores |
|---|
Applications
— Solar cable harness - 3- and 4-core sheathed cable with a ground ring on one core and push-in connectors on the others.
— Equipment power cords - 3-core sheathed cable, flag terminal on one core and ring terminal on the ground core.
— Control panel harness - 4-core cable with unequal core lengths up to 200 mm and a different terminal on each core.
— Appliance internal harness - 3-core cable with push-in 187/250 terminals on line and neutral cores.
— Pump and motor leads - 4-core cable, ring terminal on the ground core, flag terminals on the phase cores.
